Rigid Mining Trucks
Rigid off-highway dump trucks for high-volume haulage, in diesel and electric drive - engineered for open-pit mines, quarries and large infrastructure projects.
Buying guide: How to choose the right haul truck — size, configuration and support.Read the guide →
Haul More Tonne, Burn Less Fuel
For open-pit and quarry operations, LiuGong rigid mining trucks are matched to wheel-loader fleets for fast cycle times, high availability and low cost per tonne, in diesel and electric drive.
70 tMax Payload
105 tGross Vehicle Weight
442 kWRated Power
Key Features
- Rigid-frame mining trucks with high payload-to-weight ratios and low fuel per tonne
- Rigid frame with high-strength welded dump body and optional wear-resistant liners
- Integrated haul-truck / loader matching guidance from our application engineers
- Mining-duty parts programs: body liners, tyres, hydraulic components and service kits
Specifications
DW105A · Flagship Diesel Truck
| Operating Weight | 35,000 kg |
|---|---|
| Rated Payload | 70,000 kg |
| Gross Vehicle Weight | 105,000 kg |
| Struck Capacity | 36 m³ |
| Heaped Capacity | 43 m³ |
| Engine Model | Yuchai YC6K560-GT30 |
| Emission Standard | Tier 3 / Stage III |
| Rated Power | 442 kW (552.5 hp) |
| Transmission Model | Allison 4800 RS |
| Max Travel Speed | 37 km/h |
| Dimensions (L x W x H) | 10,068 x 3,620 x 4,028 mm |
| Tires | 16.00 R25 |

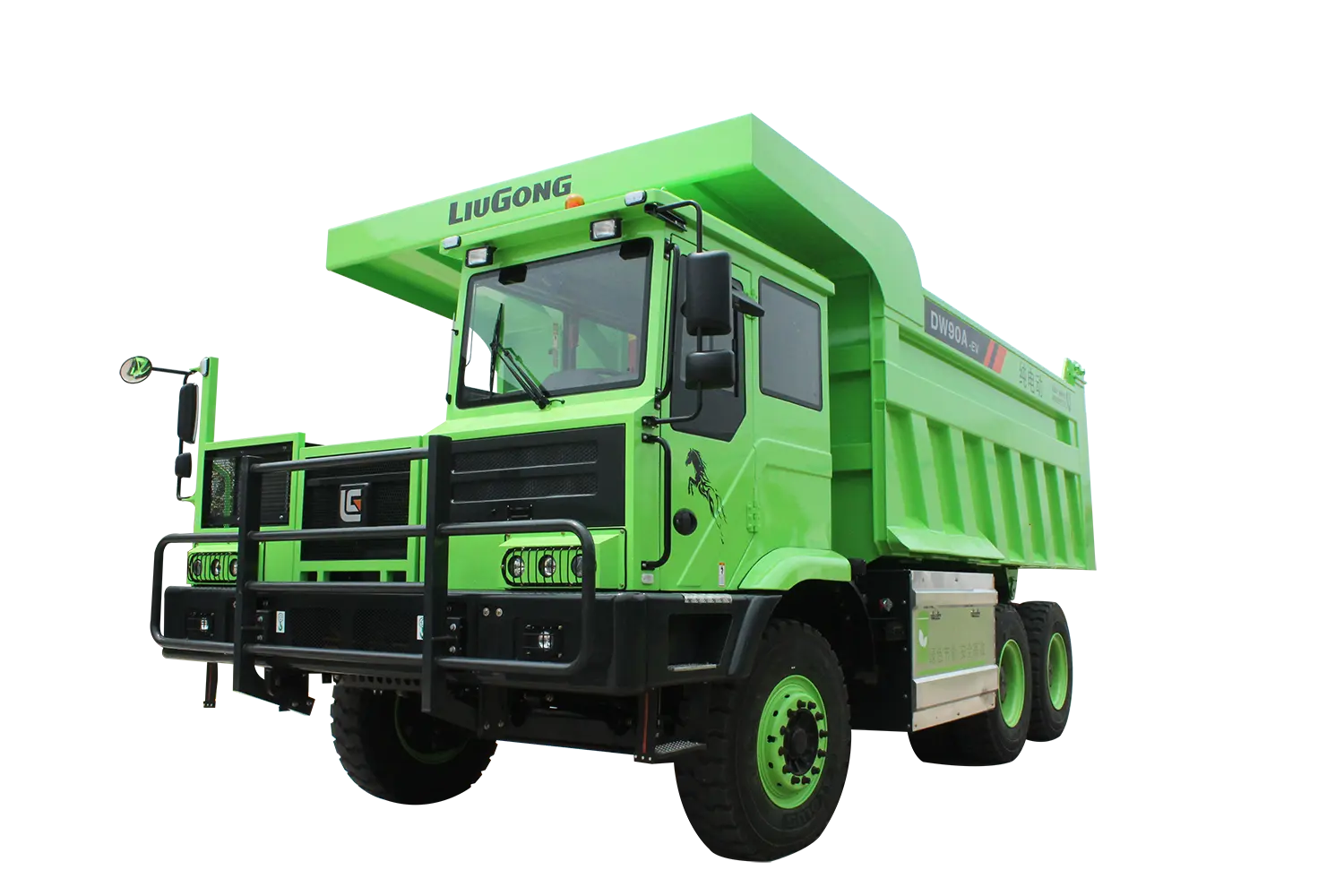

Electric drive versions (DW90AE / DW105AE) and detailed payload curves available on request.
Model Range
Available Models
Customization
Configure Your Fleet
Truck body liners, payload monitoring, tailgate and body-heating options, and mine-site parts & service packages.
Downloads
Brochures & Data Sheets
Request rigid mining truck product guides in PDF - sent by email within one business day.
Visit Download Center
Get Quote - Mining Trucks
FOB / CIF / DAP pricing · Delivery lead time · Parts & warranty included in every quote.
