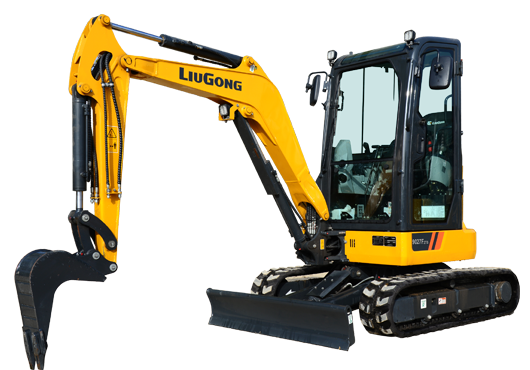

9051FZTS Excavator

Name: 9051FZTS Excavator
Brand: LiuGong

The LiuGong 9051FZTS crawler excavator offers operating weight of 5,180 kg; stadard bucket capacity of 0.14 m³; rated power of 35.5 kw. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.

Specifications Key Features Applications Get a Quote

9051FZTS Excavators

Operating Weight

5,180 kg

Stadard Bucket Capacity

0.14 m³

Rated Power

35.5 kw

Specifications

Operating Weight	5,180 kg
Stadard Bucket Capacity	0.14 m³
Travel Speed (Hight/Low)	4.2/2.4 km/h
Bucket Digging Force(ISO)	37 kN
Shipping Length	5,510 mm
Shipping Height	2,550 mm
Max. Digging Reach	5,850 mm
Max. Digging Depth	3,450 mm
Max. Cutting Height	5,423 mm
Min. Front Swing Radius	2,624 mm
Emission Regulation	Stage V/ Tier 4F
Relief Pressure, main	27.4 MPa
Rated Power	35.5 kw
Bucket Capacity	0.06-0.26 m³
Swing Speed	9.6 r/min
Arm Digging Force(ISO)	25 kN
Shipping Width	1,960 mm
Shoe Width	400 mm
Max. Digging Reach on Ground	5,765 mm
Max. Vertical Wall Digging Depth	2,510 mm
Max. Dumping Height	3,880 mm
Engine	Yanmar 4TNV86CT-PLY
Main Pumps Total Flow	149.6 L/min

Key Features

Operating weight 5,180 kg
Compact class — fits tight urban, municipal and confined jobsites.
Bucket capacity 0.14 m³
Sized for efficient loading cycles and production targets.
Digging depth 3,450 mm
Reach and depth suited to trenching and foundation work.
ROPS/FOPS cab
Operator protection and comfort on every shift.
Advanced hydraulics
Smooth, precise control for demanding work cycles.
Factory-direct support
Global parts, warranty and after-sales network from the manufacturer.

Applications

The 9051FZTS is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
