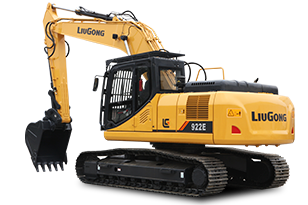

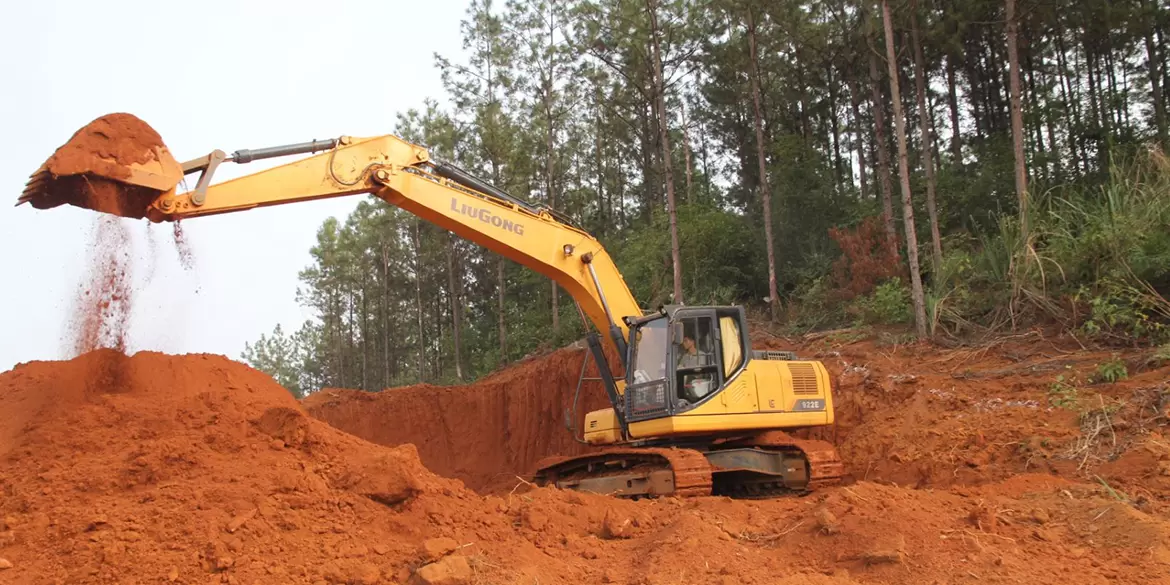

922E Excavator
The LiuGong 922E crawler excavator offers operating weight of 22000 kg; std. bucket capacity of 1.0 m³; engine power of 112 kW (150 hp) @ 1950 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
922E Excavators
Operating weight
22000 kg
Std. Bucket capacity
1.0 m³
Engine power
112 kW (150 hp) @ 1950 rpm
Specifications
| Operating weight | 22000 kg |
|---|---|
| Std. Bucket capacity | 1.0 m³ |
| Travel speed(Low) | 3.3 km/h |
| Arm breakout force | 97 kN |
| Bucket breakout force | 140 kN |
| Shipping length | 9540 mm |
| Shipping height | 3140 mm |
| Boom | 5710 mm |
| Digging reach | 9870 mm |
| Digging depth | 6562 mm |
| Cutting height | 9945 mm |
| Minimum front swing radius | 3090 mm |
| Emission | Stage II / Tier 2 |
| System pressure | 34.3 MPa |
| Engine power | 112 kW (150 hp) @ 1950 rpm |
| Travel speed(High) | 5.7 km/h |
| Maximum swing speed | 12.5 rpm |
| Arm breakout force Power boost | 105 kN |
| Bucket breakout force Power boost | 152.5 kN |
| Shipping width | 2990 mm |
| Track shoe width (std) | 600 mm |
| Arm | 2915 mm |
| Digging reach on ground | 9685 mm |
| Vertical wall digging depth | 5080 mm |
| Dumping height | 7170 mm |
| Model | Cummins 6BTAA5.9-C150-Ⅱ |
| System maximum flow | 2×224 L/min (2x59 gal/min) |
| ※For reference only. | 922E - Stage IIIA |
| Operating weight | 22000 kg |
| Bucket capacity | 1.0 m³ |
| Travel speed(Low) | 3.0 km/h |
| Arm breakout force | 97 kN |
| Bucket breakout force | 140 kN |
| Shipping length | 9570 mm |
| Shipping height | 3140 mm |
| Boom | 5710 mm |
| Digging reach | 9870 mm |
| Digging depth | 6562 mm |
| Cutting height | 9945 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 22000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 112 kW (150 hp) @ 1950 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.0 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 922E is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 922E Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
