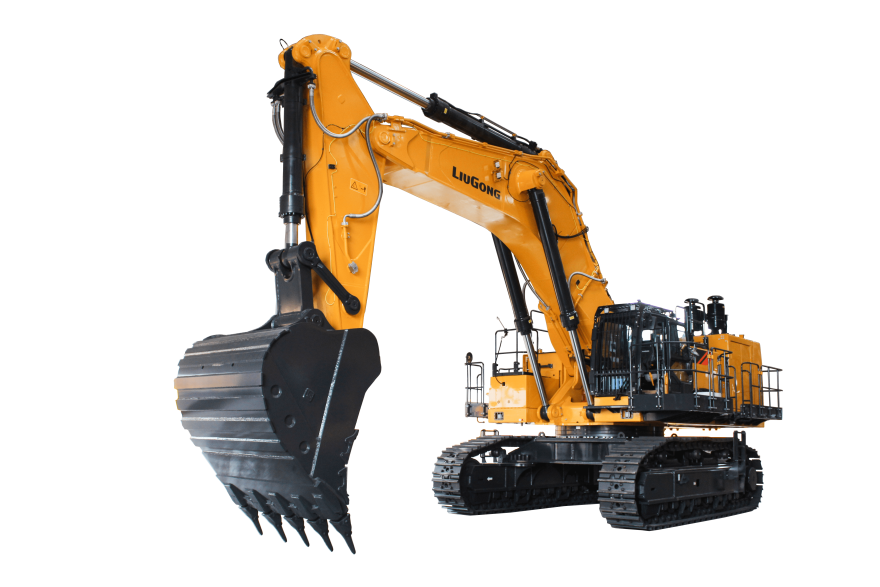

9125F Excavator

Name: 9125F Excavator
Brand: LiuGong

The LiuGong 9125F crawler excavator offers operating weight of 122,000 kg; std. bucket capacity of 8.0 m³; rated power of 567 kW@ 1,800 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.

Specifications Key Features Applications Get a Quote

9125F Excavators

Operating Weight

122,000 kg

Std. Bucket capacity

8.0 m³

Rated Power

567 kW@ 1,800 rpm

Specifications

Operating Weight	122,000 kg
Std. Bucket capacity	8.0 m³
Travel speed(Low)	2.6 km/h
Arm Digging Force (ISO)	491 kN
Shipping Length	14755 mm
Shipping Height	6364 mm
Boom	7550 mm
Max. Digging Reach	13997 mm
Max. Digging Depth	8112 mm
Max. Cutting Height	12585 mm
Min. Front Swing Radius	6489 mm
Relief Pressure, main	37 MPa
Rated Power	567 kW@ 1,800 rpm
Travel speed(High)	3.5 km/h
Maximum swing speed	6.2 rpm
Bucket Digging Force (ISO)	610 kN
Shipping Width	5743mm
Track shoe width (std)	700 mm
Arm	3400 mm
Max. Digging Reach on Ground	13628 mm
Max. Vertical Wall Digging Depth	5832 mm
Max. Dumping Height	8050 mm
Model	Cummins QSK23
Main Pump Total Flow	2040 L/min

Key Features

Operating weight 122,000 kg
Heavy class — excavation, quarry and large-scale earthmoving duty.
Bucket capacity 8.0 m³
Sized for efficient loading cycles and production targets.
Digging depth 8112 mm
Reach and depth suited to trenching and foundation work.
ROPS/FOPS cab
Operator protection and comfort on every shift.
Advanced hydraulics
Smooth, precise control for demanding work cycles.
Factory-direct support
Global parts, warranty and after-sales network from the manufacturer.

Applications

The 9125F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
