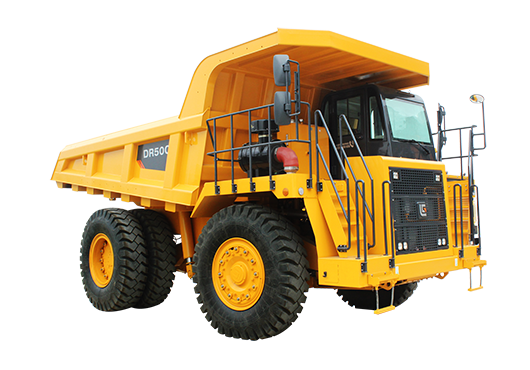

DR50C Mining Truck
The LiuGong DR50C mining trucks delivers rated power of 388 kW; rated operating load of 45000 kg; body capacity of 21.8-29.8 m³. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
DR50C Mining Trucks
Rated power
388 kW
Rated operating load
45000 kg
Body capacity
21.8-29.8 m³
Key Features
- With its fast cycle time and large Payload capacity, DR50C move more tons per hour allowing customer to maximize return on investment.
- LiuGong offers one of the lowest empty vehicle weight and a durable lightweight frame in the market today.
- Full hydraulic control system. Independently control of brake circuit, we add the relay valves which improve response speed, and increase vehicle safety.
- The DR50C is equipped with Cummins QSX15 engine, with low failure rate and the highest fuel economy compared to competing products. Service life more than 60,000 hours, which can easily cope with various heavy load conditions.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Operating weight | 36800 kg | 81130 lb |
| Rated load | 45000 kg | 99208 lb |
| Gross Machine Weight | 81800 kg | 180338 lb |
| Struck Capacity | 21.8 m³ | 29 yd³ |
| Heaped capacity (SAE 2:1) | 29.8 m³ | 39 yd³ |
| Engine Model | Cummins QSX15 | Cummins QSX15 |
| Emission regulation | Tier 3 / Stage III | Tier 3 / Stage III |
| Rated power | 388 kW (528 hp) @ 2100 rpm | 388 kW (528 hp) @ 2100 rpm |
| Transmission Model | Allison | Allison |
| Type | Automatic | Automatic |
| Maximum travel speed | 55 km/h | 34.18 mph |
| Dimension | 8927x4200x4310 mm | 8927x4200x4310 mm |
| Tire | 15.00/3.0-35 | 15.00/3.0-35 |
Applications
The DR50C is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
