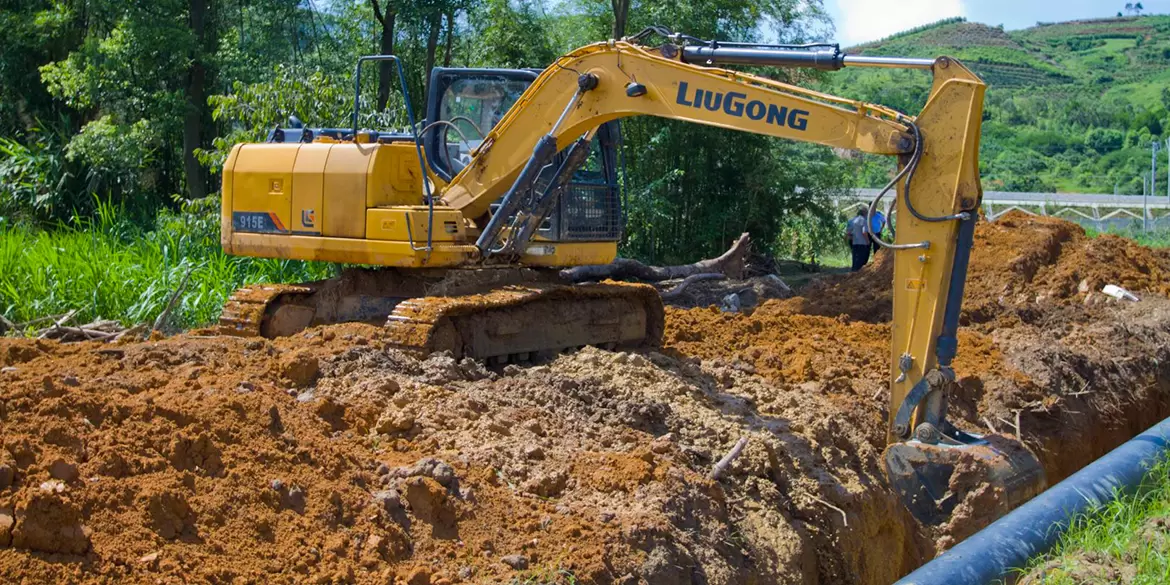

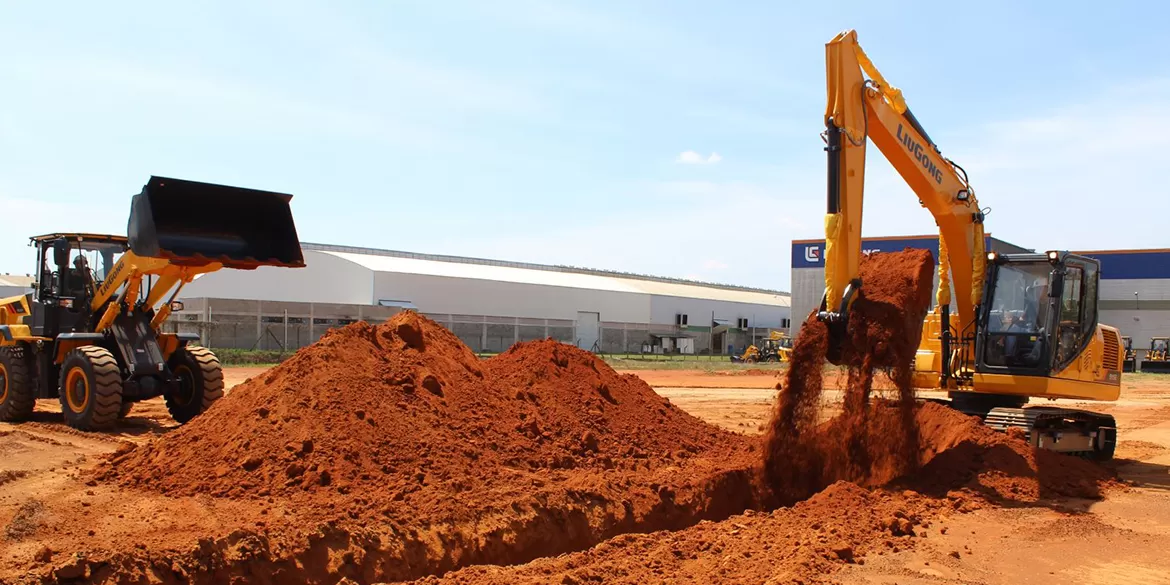

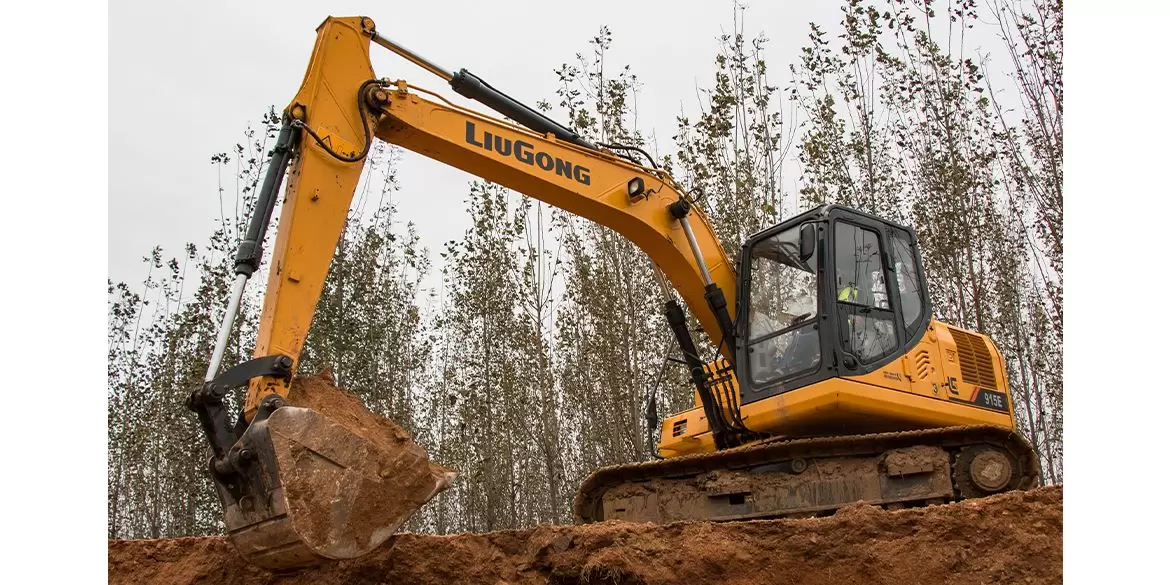

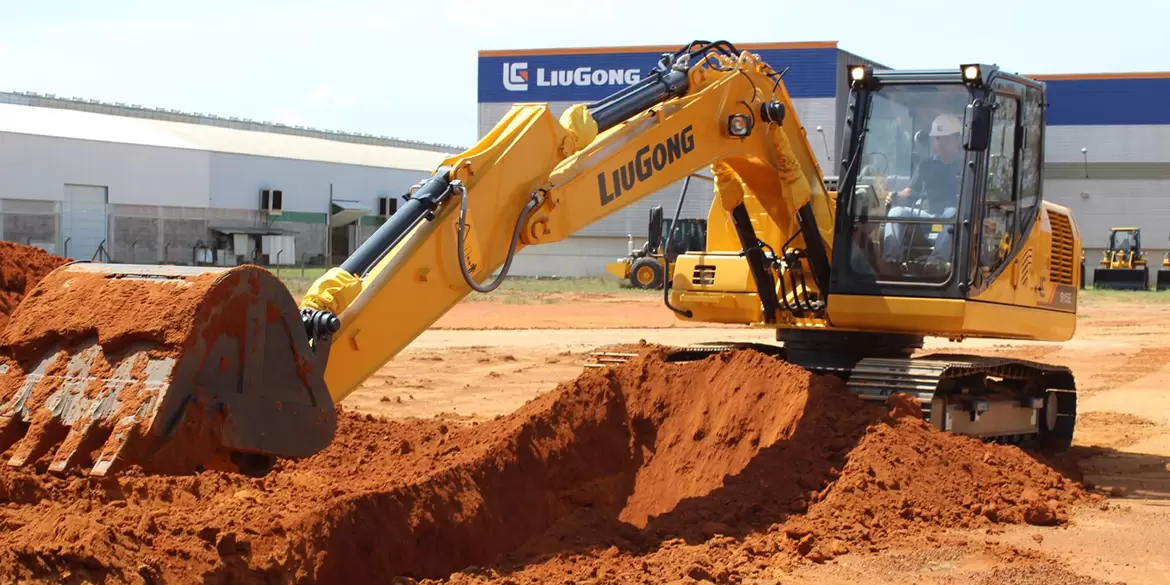

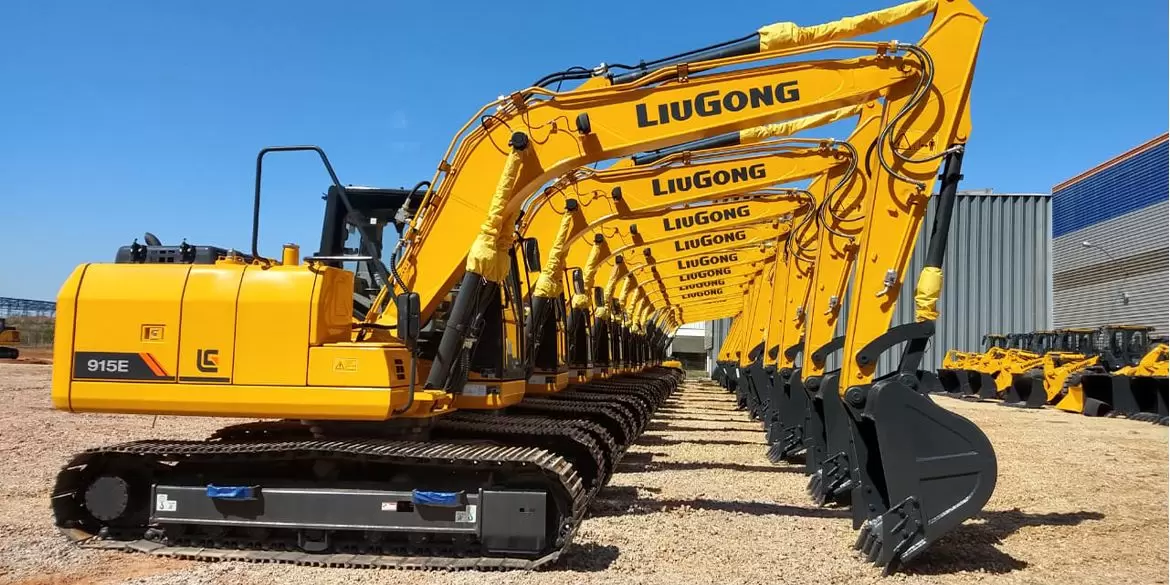

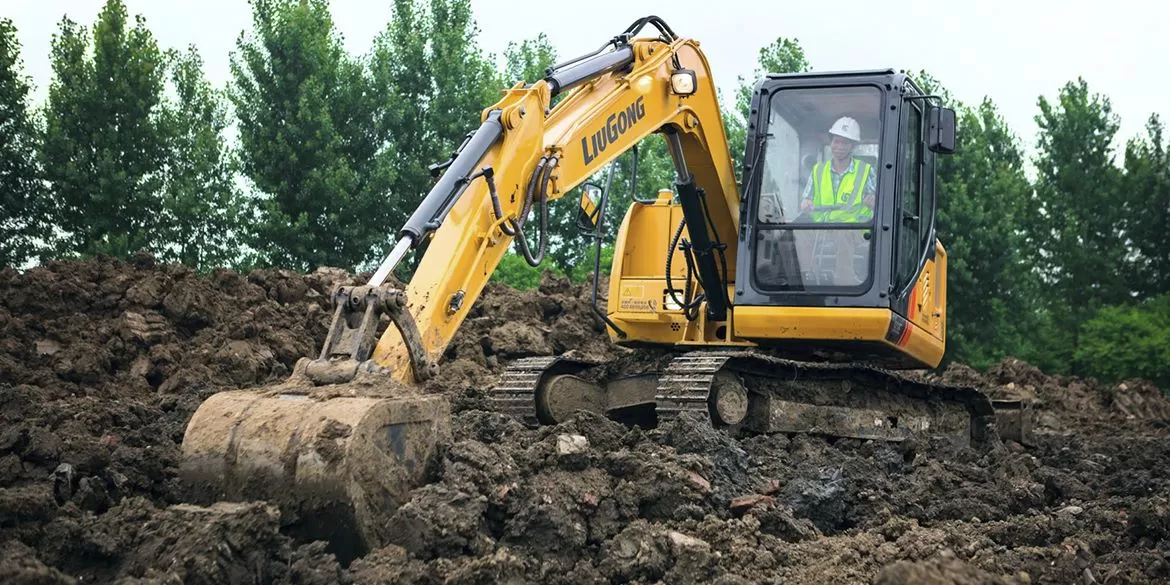

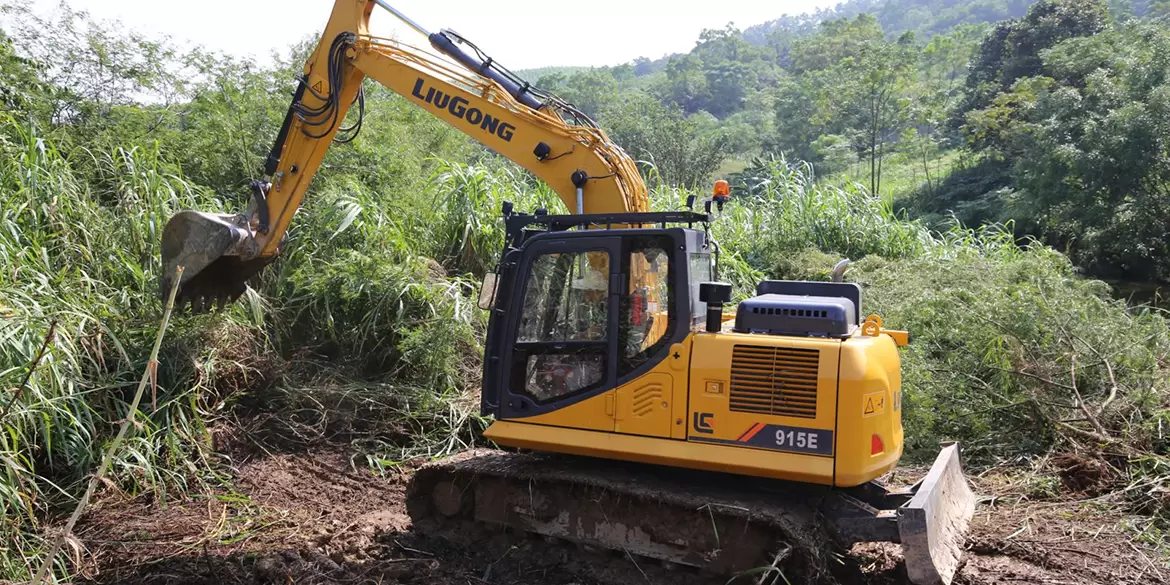

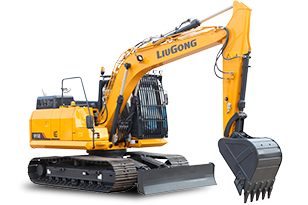

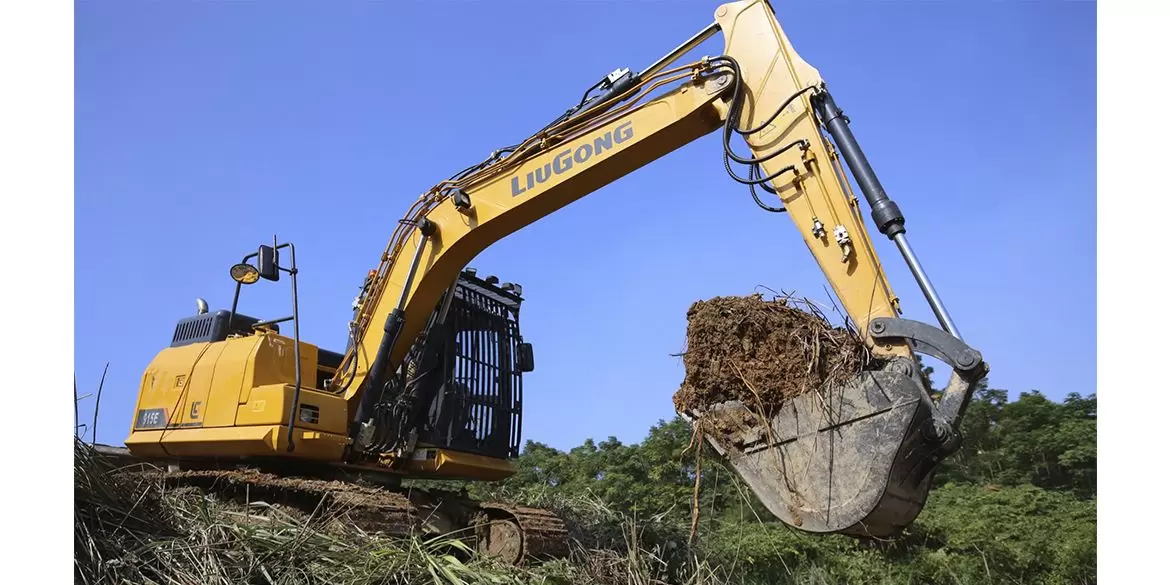

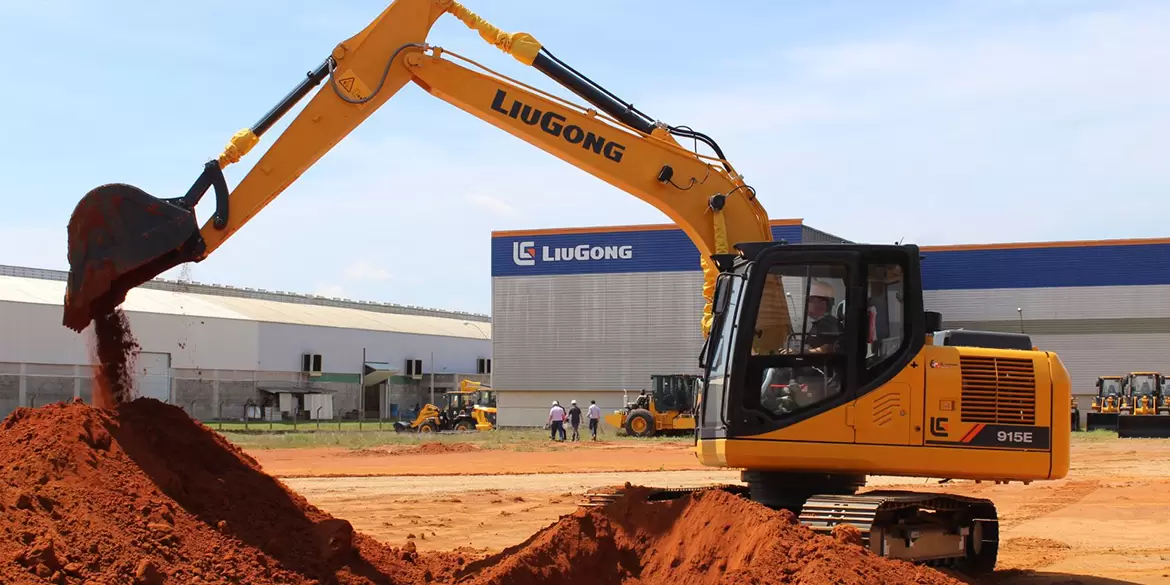

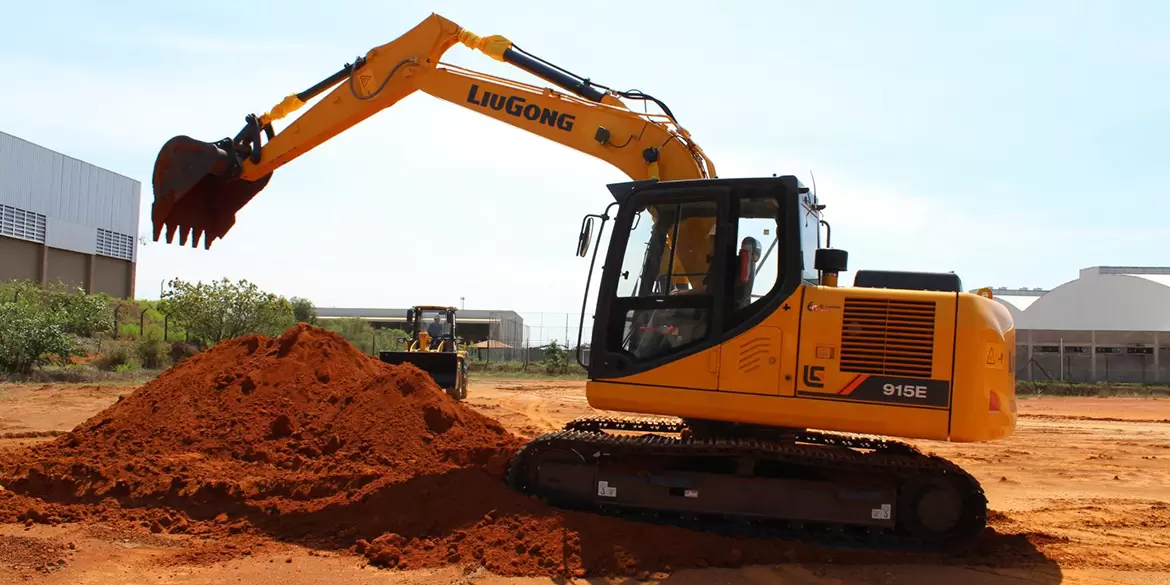

915E Excavator
The LiuGong 915E crawler excavator offers operating weight of 14050 kg; std. bucket capacity of 0.6 m³; engine power of 86 kW (115 hp/117 ps) @ 2200 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
915E Excavators
Operating weight
14050 kg
Std. Bucket capacity
0.6 m³
Engine power
86 kW (115 hp/117 ps) @ 2200 rpm
Specifications
| Operating weight | 14050 kg |
|---|---|
| Std. Bucket capacity | 0.6 m³ |
| Travel speed(Low) | 3.3 km/h |
| Arm breakout force | 64.9 kN |
| Bucket breakout force | 89.8 kN |
| Shipping length | 7750 mm |
| Shipping height | 2930 mm |
| Boom | 4600 mm |
| Digging reach | 8300 mm |
| Digging depth | 5470 mm |
| Cutting height | 8760 mm |
| Minimum front swing radius | 2470 mm |
| System pressure | 34.3 MPa |
| Engine power | 86 kW (115 hp/117 ps) @ 2200 rpm |
| Travel speed(High) | 5.1 km/h |
| Maximum swing speed | 12.94 rpm |
| Arm breakout force Power boost | 70 kN |
| Bucket breakout force Power boost | 96.9 kN |
| Shipping width | 2490 mm |
| Track shoe width (std) | 500 mm |
| Arm | 2500 mm |
| Digging reach on ground | 8170 mm |
| Vertical wall digging depth | 4770 mm |
| Dumping height | 6310 mm |
| Model | Cummins QSF 3.8 |
| System maximum flow | 2x120 L/min (2x32 gal/min) |
| ※For reference only. | 915E－Tier 4F |
| Operating weight | 15400 kg |
| Std. Bucket capacity | 0.6 m³ |
| Travel speed(Low) | 3.2 km/h |
| Arm breakout force | 64.9 kN |
| Bucket breakout force | 89.8 kN |
| Shipping length | 7750 mm |
| Shipping height | 2930 mm |
| Boom | 4600 mm |
| Digging reach | 8300/8720 mm |
| Digging depth | 5470/5870 mm |
| Cutting height | 8760/9040 mm |
| Minimum front swing radius | 2470/2545 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 14050 kgMainstream class — building foundations, roadworks and general earthmoving.
- Engine power 86 kW (115 hp/117 ps) @ 2200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.6 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 915E is suited to Building foundations, roadworks, drainage and general earthmoving. Tell us your application and we will recommend the right configuration.
