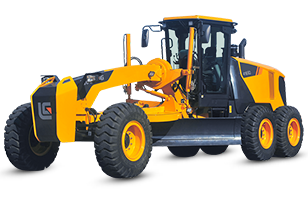

4165D Motor Grader
The LiuGong 4165D motor grader offers operating weight of 16000 kg; engine power of 132 kW (177 hp) @ 2,200 rpm; power of 132 kW (177 hp ) @ 2,200 rpm. Precise road grading, site levelling and surface finishing; reliable powertrain and comfortable, high-visibility operator station. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
4165D Engine Graders
Operating Weight
16000 kg
Engine Power
132 kW (177 hp) @ 2,200 rpm
Power
132 kW (177 hp ) @ 2,200 rpm
Specifications
| Operating Weight | 16000 kg |
|---|---|
| Power | 132 kW (177 hp ) @ 2,200 rpm |
| Engine Model | Cummins 6BTAA5.9-C180 |
| Emission Standard | Tier II |
| Fuerza en la B de T | 87 kN |
| Transmision | ZF |
| Speeds | 6F / 3R |
| Max Speed (F/R) | 42 km/h / 27.4 km/h |
| Blade Width | 3,660 mm |
| Depth de corte | 680 mm |
| Angulacion de la verteda | 24° ~ 78° |
| Thickness hoja vertedera | 25 mm |
| Despeje max. Hoja | 600 mm |
| Differential | de patinamiento Limitado |
| Turning Radius (min) | 7280 mm |
| Largo total | 9.140 mm |
| Transport Width | 2.675 mm |
| Alto de transporte | 3.380 mm |
| Capacity de tanque combustible | 348 l |
| Neumaticos | 17.5-25 G2 o G3 |
| Ripper | Standard |
| Engine Power | 132 kW (177 hp) @ 2,200 rpm |
| Drawbar Pull | 77 kN |
| Model | 6BTAA5.9-C180 |
| Type | Power shift |
| Max Forward Travel Speed | 42 km/h |
| Turning Radius | 7200 mm |
| Articulation Angle | ±27° |
| Max Overall Height | 3,380 mm |
| Tandem Axle Spacing | 1,538 mm |
| Blade Width | 3960 mm |
| Length total com ripper | 10280 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 16000 kgClass-defining weight for application matching.
- Engine power 132 kW (177 hp) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Travel speed 42 km/hEfficient repositioning and cycle times on site.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 4165D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 4165D Motor Grader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
