Motor Graders
Operating weight 14–26 t · Precision blade control · 6F/3R power-shift transmission · Built for roads, airports and mine haul roads.
Precision Grading, Job After Job
LiuGong motor graders combine a rigid one-piece mainframe, articulated frame steering and high-torque Cummins power. The result is smooth, accurate grading with low cost per square meter — from base course to final trim.
- 6 forward / 3 reverse power-shift transmission for smooth speed changes under load
- Hydraulic blade control with high precision and low-effort lever operation
- Grade-control ready for laser or GPS machine guidance systems
- Optional ripper and scarifier for hard-ground preparation

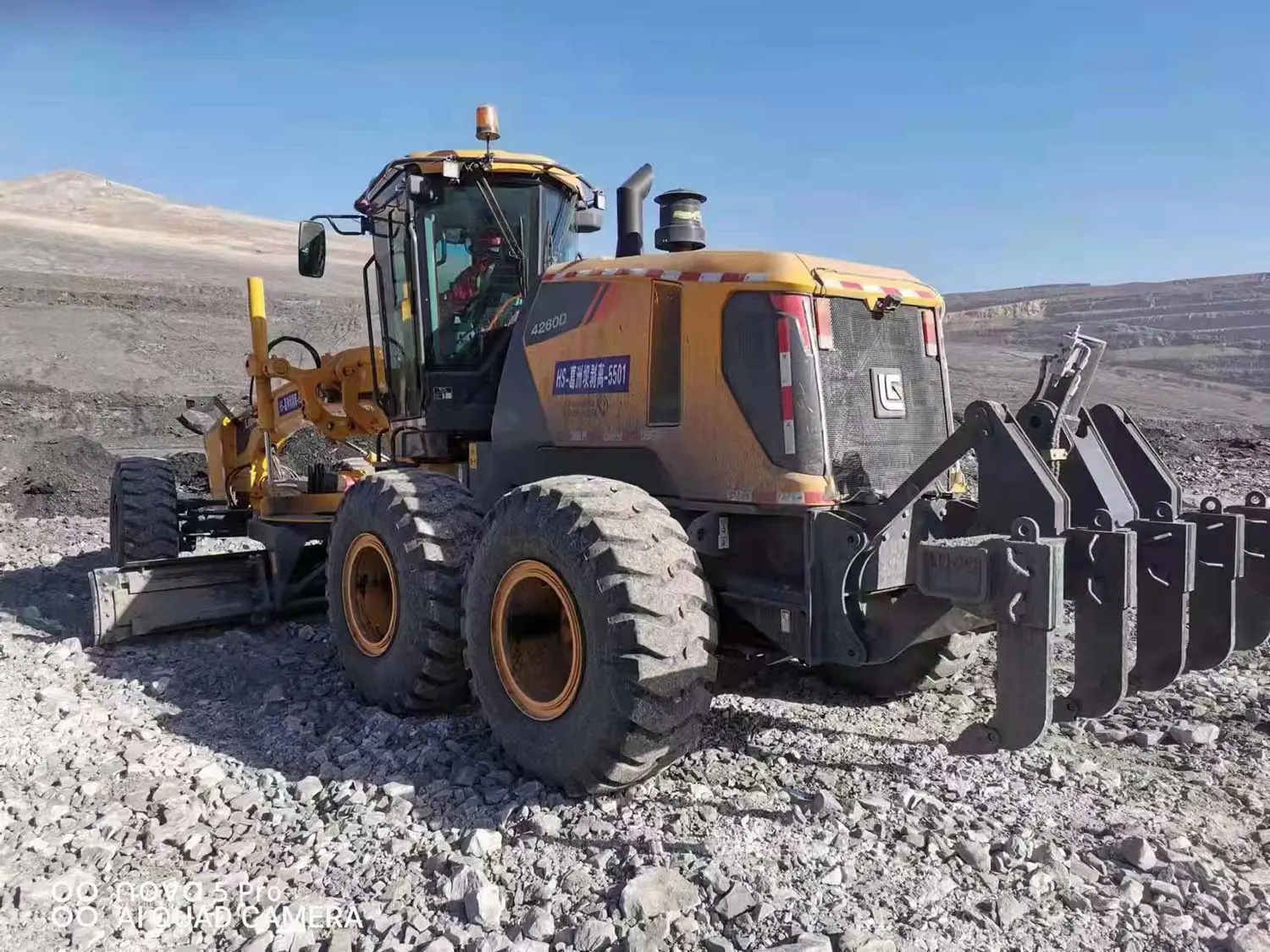

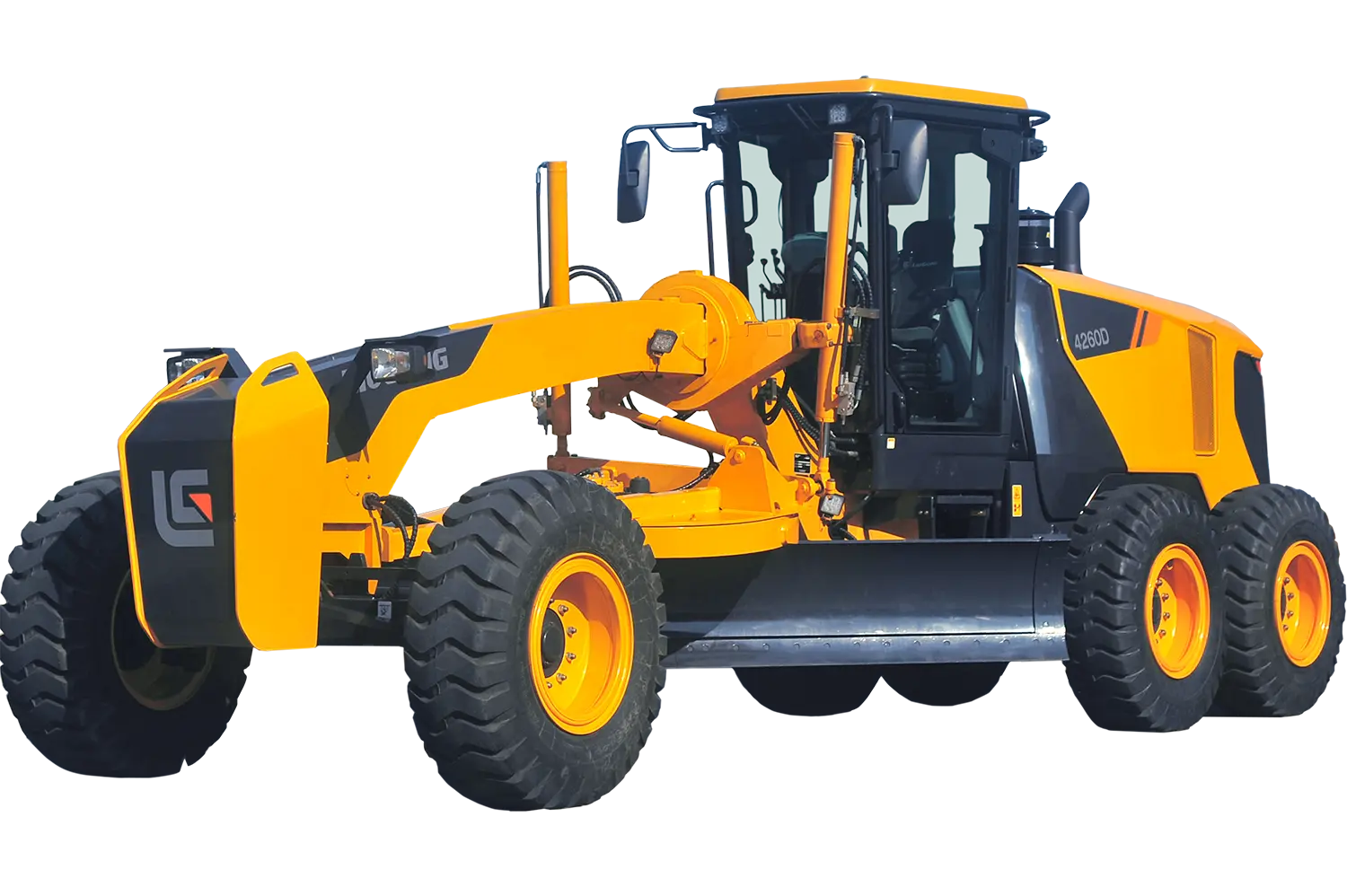

Flagship Model
| 4260D | |
|---|---|
| Operating Weight | 20,500 kg |
| Engine Power | 194 kW (260 hp / 264 ps) @ 2,200 rpm |
| Engine | Cummins 6CTAA8.3 · Tier 2 / Stage II |
| Tractive Force (max) | 112 kN |
| Travel Speed | 44 km/h forward / 32 km/h reverse |
| Blade Length / Thickness | 4,570 mm / 19 mm |
| Min Turning Radius | 7,500 mm |
| Fuel Tank | 480 L |
Full model specifications available on request and in downloadable brochures.

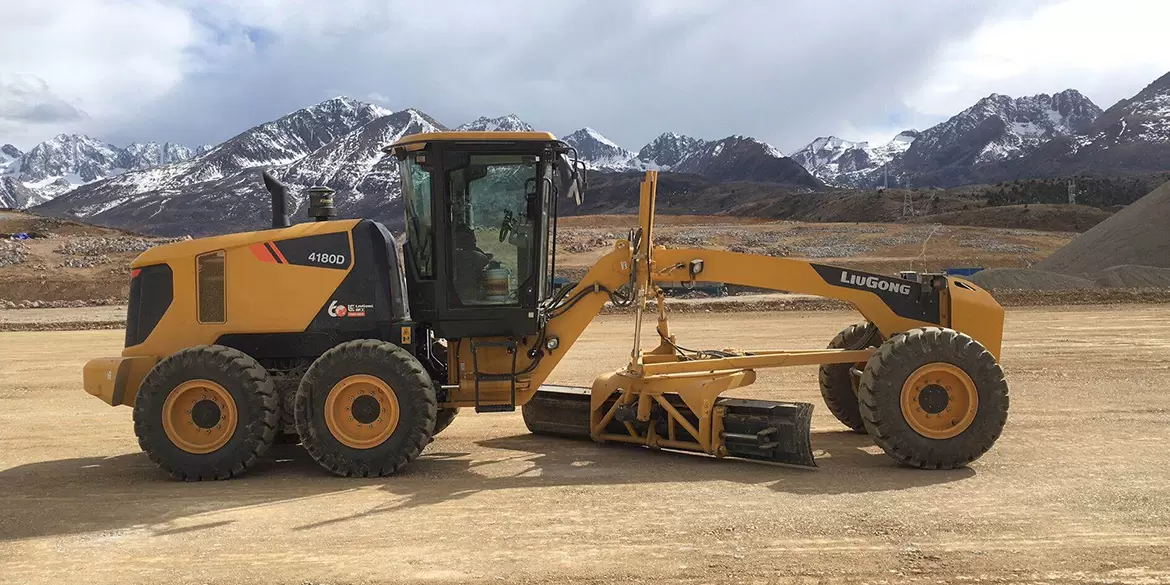

Available Models
Configure Your Grader
Blade width, moldboard options, ripper / scarifier, front blade, snow wing, GPS grade-control kits and cold-weather packages.
Brochures & Data Sheets
Request the motor grader product guide and model-specific spec sheets in PDF — sent by email within one business day.
Visit Download CenterFOB / CIF / DAP pricing · Delivery lead time · Parts & warranty included in every quote.
