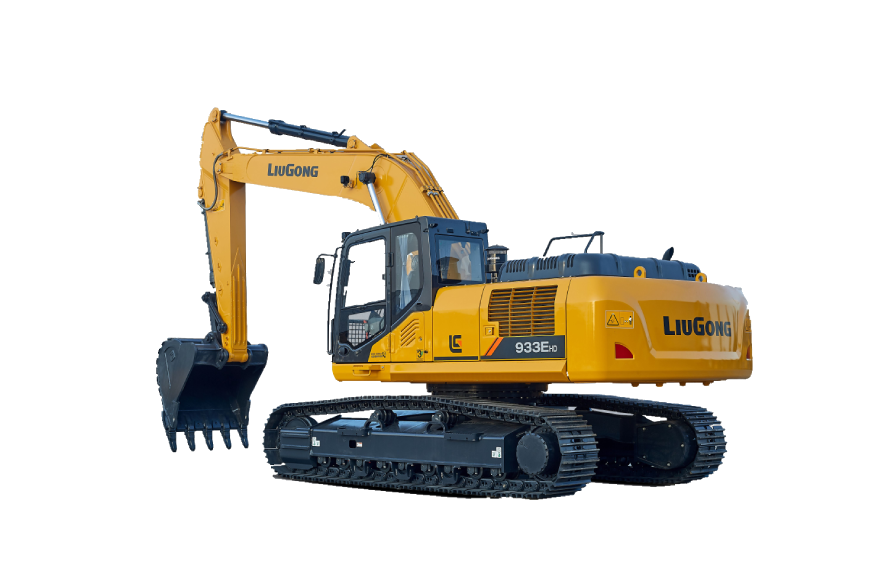

933EHD Excavator
The LiuGong 933EHD crawler excavator offers operating weight of 33.600 – 34.000 kg; standard bucket capacity of 1.88 m³; bucket range of 1.4 – 1.88 m3. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
933EHD Excavators
Operating Weight
33.600 – 34.000 kg
Standard Bucket Capacity
1.88 m³
Bucket Range
1.4 – 1.88 m3
Specifications
| Operating Weight | 33.600 – 34.000 kg |
|---|---|
| Standard Bucket Capacity | 1.88 m³ |
| Bucket Range | 1.4 – 1.88 m3 |
| Gross Power | 169 kW (227 hp) @ 2,050 rpm |
| Net Power | 156 kW (212 hp) @ 2,050 rpm |
| Swing Speed | 10.3 rpm |
| Max Travel Speed | 5.5 km/h |
| Arm Digging Force (Power Boost) | 165 kN |
| Bucket Digging Force (Power Boost) | 5.5 km/h |
| Main Pumps Total Flow | 532 L/min |
| Engine | QSB7 |
| Emission Standard | Tier 3 |
| Main Relief Pressure | 34.3 MPa |
| Boom Length | 6,200 mm |
| Arm Length | 2,600 mm |
| Max Digging Reach | 10,250 mm |
| Max Ground Reach | 10,032 mm |
| Max Digging Depth | 6,825 mm |
| Max Vertical Wall Dig Depth | 6,590 mm |
| Max Cutting Height | 10,007 mm |
| Max Dumping Height | 7,086 mm |
| Min Front Swing Radius | 4,040 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 33.600 – 34.000 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 156 kW (212 hp) @ 2,050 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.88 m³Sized for efficient loading cycles and production targets.

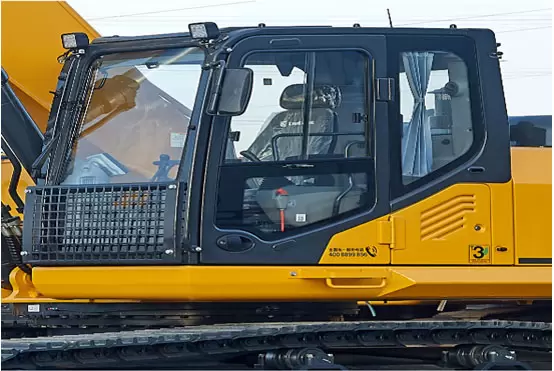

- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 933EHD is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
