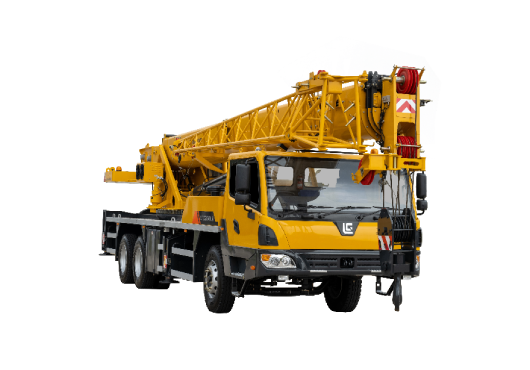

TC320C5 Truck Crane
The LiuGong TC320C5 truck cranes delivers basic boom length of 10.7 m; max. main boom length of 42 m; max. rated lifting capacity of 32 t. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
TC320C5 Truck Cranes
Basic Boom Length
10.7 m
Max. Main Boom Length
42 m
Max. Rated Lifting Capacity
32 t
Key Features
- LTC320C5 features a robust five-section "U-shaped" main boom extending up to 42m, utilizing an optimized single-plate boom head design for enhanced strength and overlap. Powered by a Dongfeng Cummins high-torque engine paired with a Fast 9-speed gearbox, it achieves a top speed of 80km/h and 35% gradeability, while advanced power transmission technology lowers fuel consumption to 35L/100km, supported by a 320L aluminum fuel tank for extended range. With compact dimensions (12.84m length, 2.6m width) and an 11m turning radius, it offers excellent site adaptability and maneuverability.
- The hydraulic system integrates post-valve compensation and proportional speed control for smooth, precise operation, including a minimum rotation speed of 0.1°/s and hoisting speed of 1.5m/min, aided by an energy-saving load-sensing system. Operator comfort and convenience are prioritized through a sliding-door cab, vibration-damping seat, expanded toolbox, centralized electrical controls, and outrigger-mounted lighting and throttle switches.
Specifications
| Max. rated lifting capacity | 32 t |
|---|---|
| The axle distance | 1,530+4,650+1,500 mm |
| Engine model | ISD285 30 (Euro III) |
| Max. rated torque of the engine | 1,550/1,400 N·m/(r/min) |
| Max. rated power of the engine | 970/1,700kW/(r/min) |
| Min. turning diameter | 22 m |
| Outrigger span | 6.4×5.6 m |
| Boom luffing time | 40/55 s |
| Boom extension time | 90/105 s |
| Max. slewing speed | 2.4 r/min |
| Dimensions (L x W x H) | 12,840×2,600×3,480mm |
| The total weight during driving | 33,000 kg |
| Max. travel speed | 80 km/h |
| Approach and departure angle | 19°/14° |
| Max. lifting speed: Main winch (No load) | 130 m/min |
| Max. lifting speed: Auxiliary winch (No load) | 130 m/min |
Applications
The TC320C5 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
