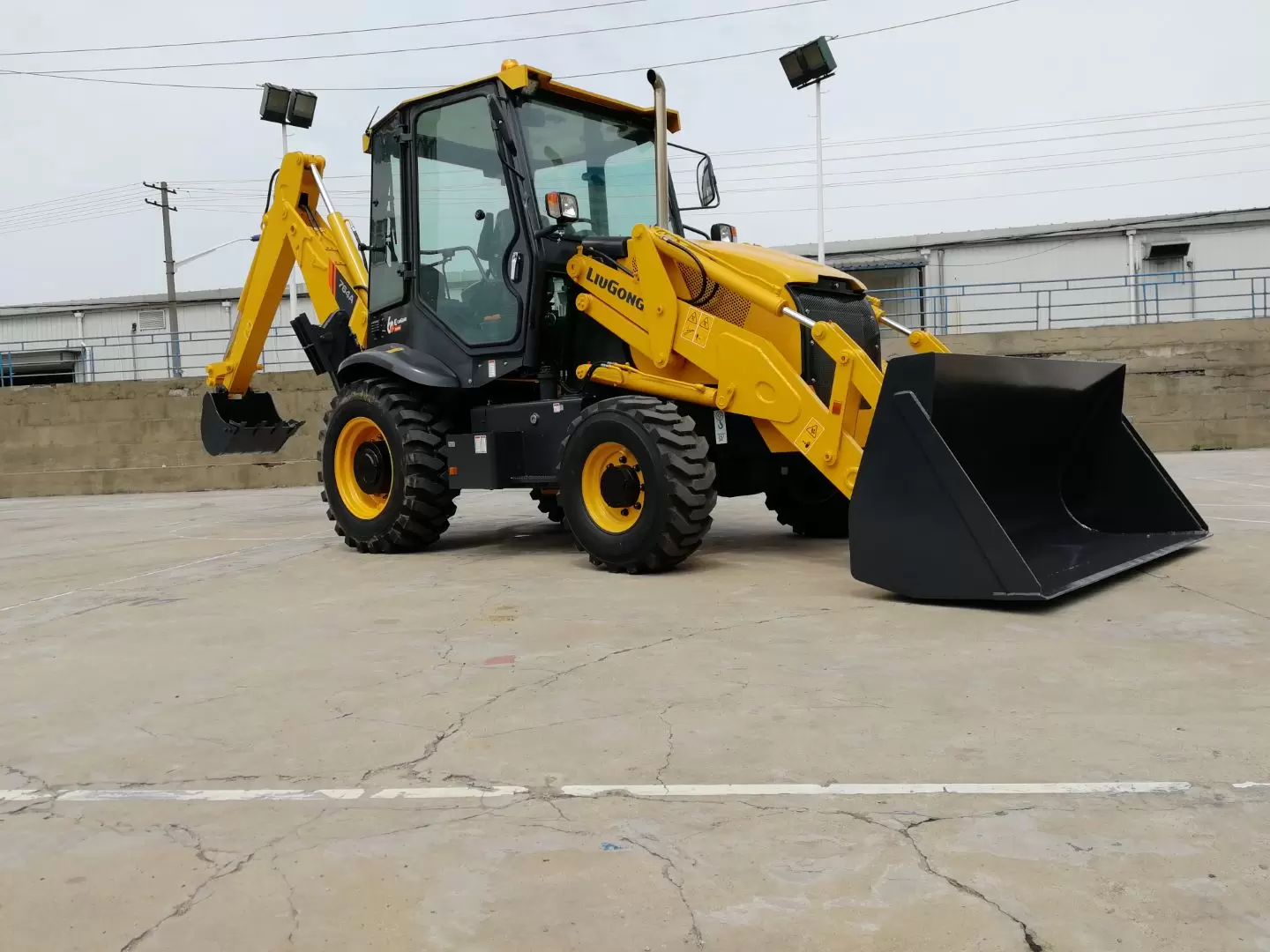

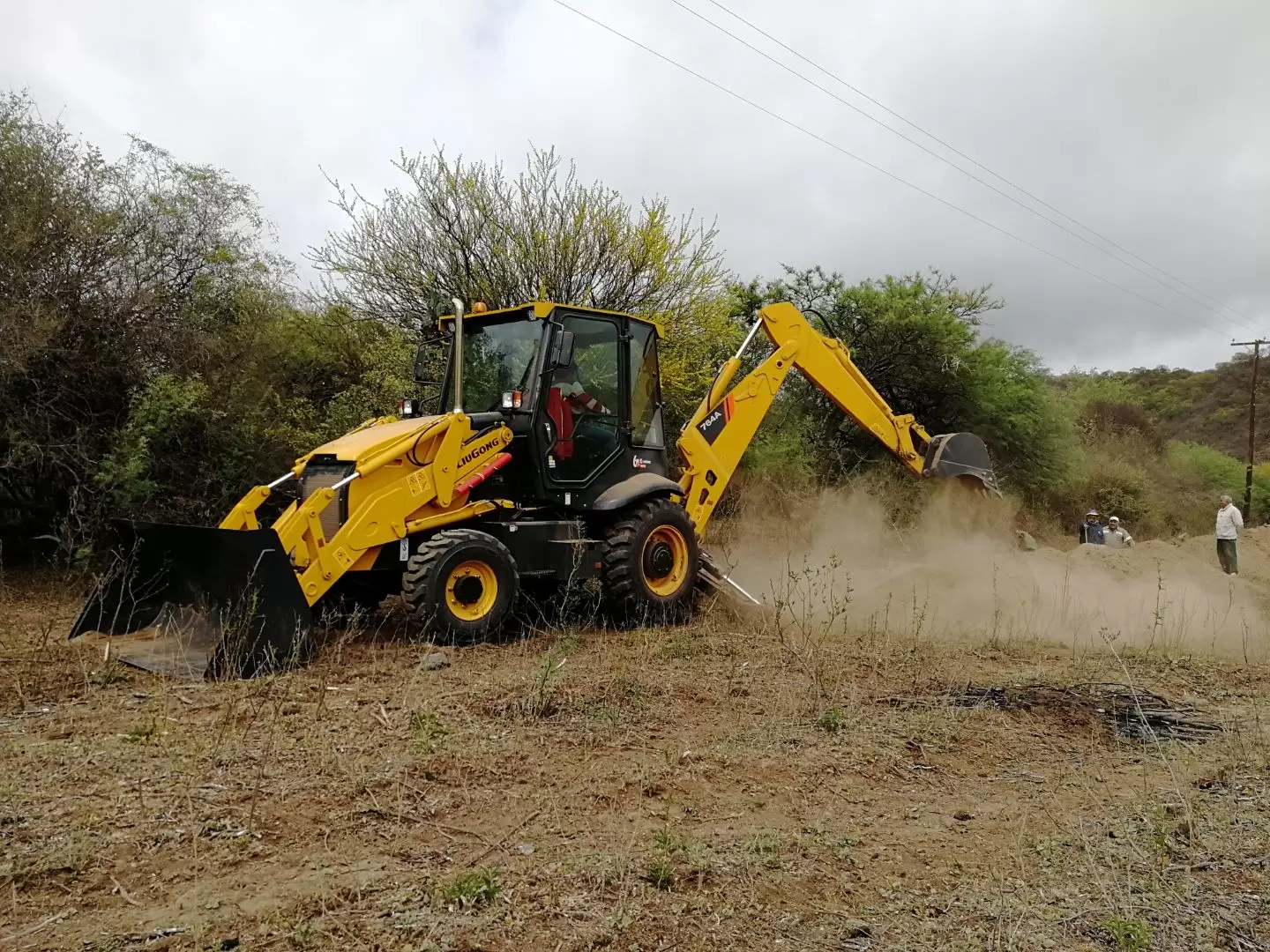

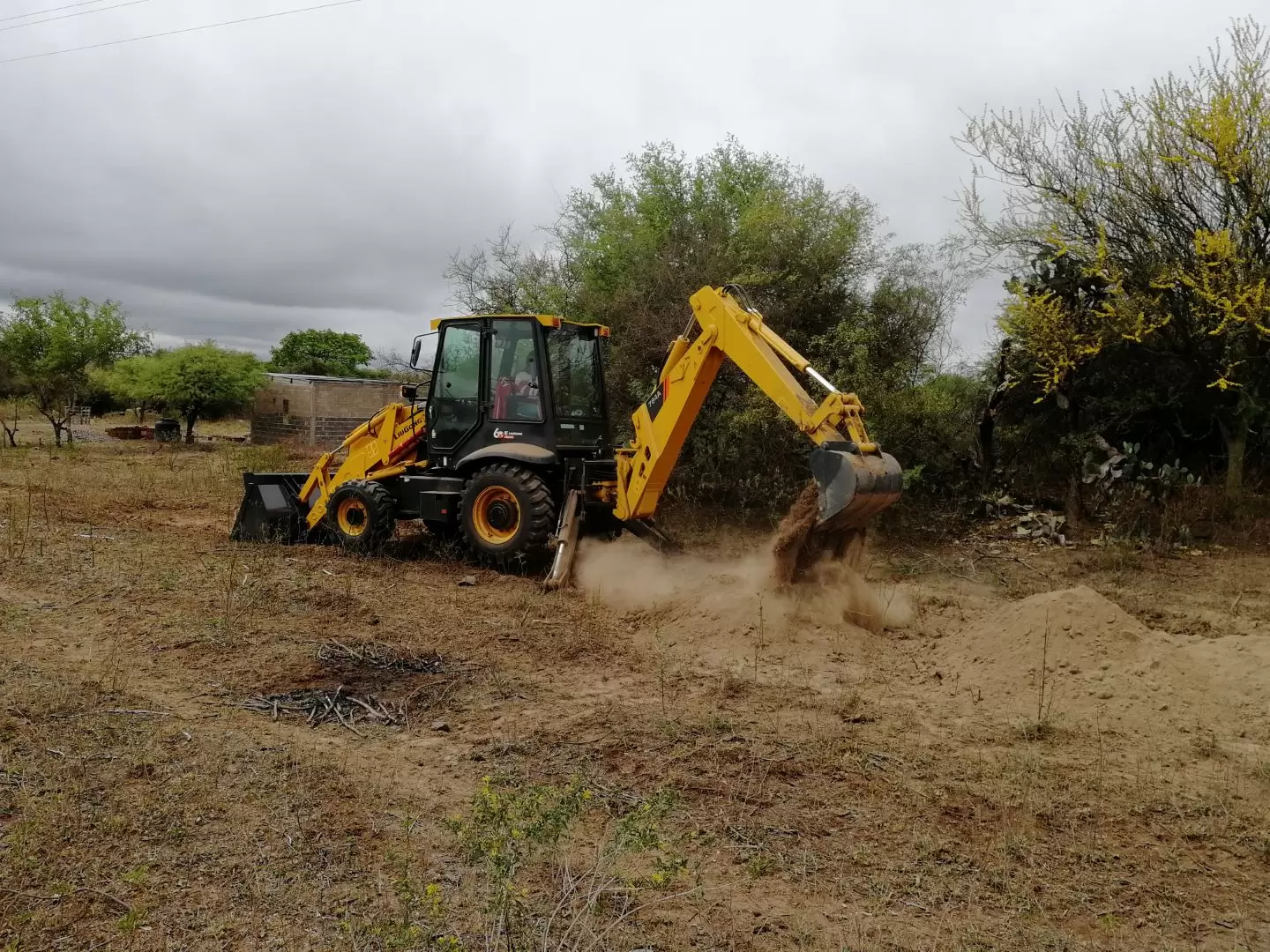

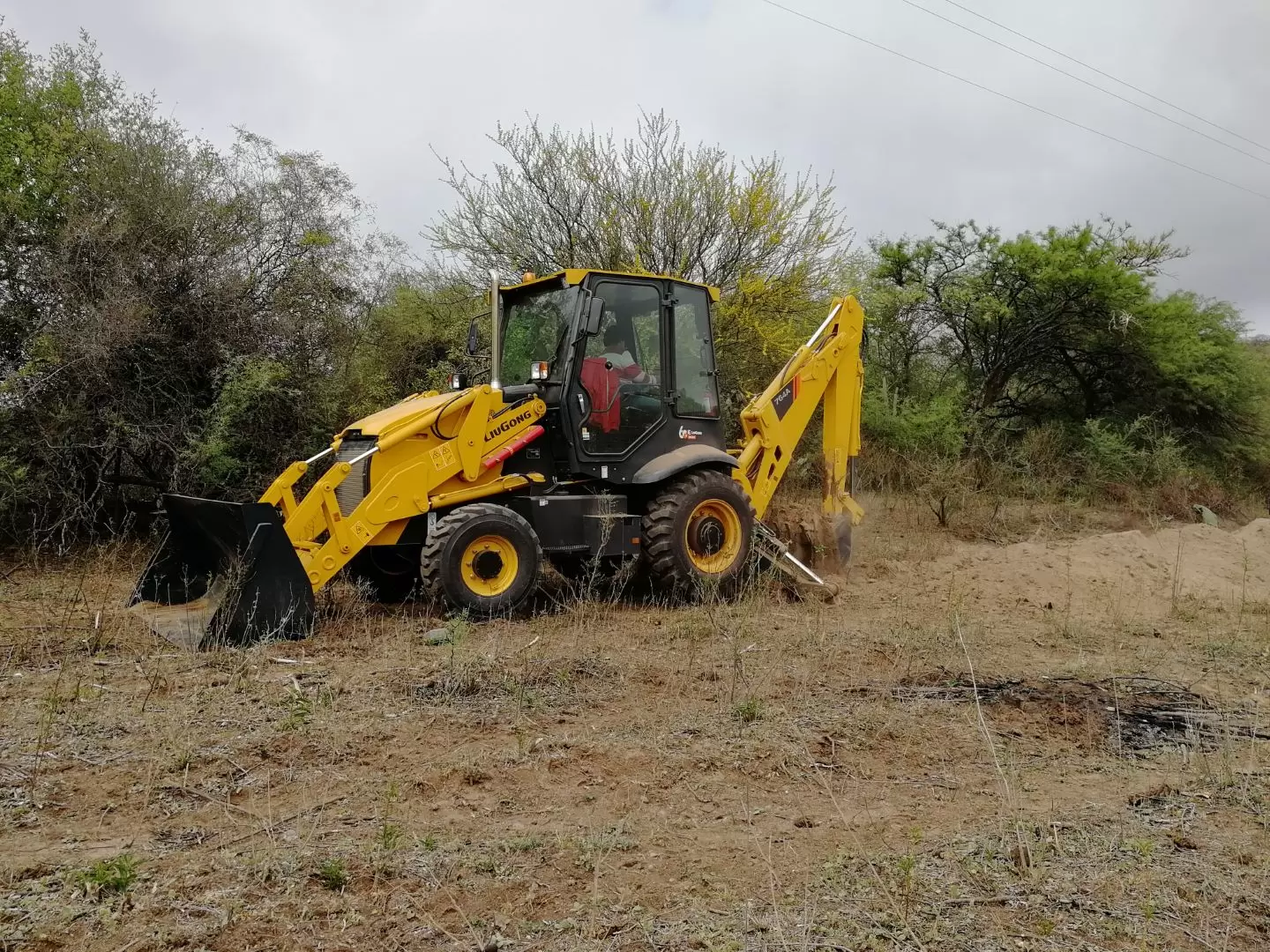

CLG764A Backhoe Loader
The LiuGong CLG764A backhoe loader offers operating weight of 8,300 kg; gross power of 75 kW (102 hp) @ 2,200 rpm; net power of 72 kW (98 hp) @ 2,200 rpm. Versatile digging, loading and material handling on a single platform; powerful hydraulics, quick coupler and comfortable cab. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
CLG764A Backhoe & Skid Steer
Operating Weight
8,300 kg
Gross Power
75 kW (102 hp) @ 2,200 rpm
Net Power
72 kW (98 hp) @ 2,200 rpm
Specifications
| Gross Power | 75 kW (102 hp) @ 2,200 rpm |
|---|---|
| Net Power | 72 kW (98 hp) @ 2,200 rpm |
| Operating Weight | 8,300 kg |
| Max Dig Depth | 4,333 mm |
| Max Travel Speed | 44 km/h |
| Outer Turning Radius (front tire, single brake) | 5,850 mm |
| Loader Bucket Breakout Force | 59.6 kN (1 m³) |
| Backhoe Digging Force | 52.1 kN |
| Max Dumping Height (Loader) | 2,691 mm |
| Loading Height (Backhoe) | 3,586 mm |
| Engine | Yuchai YC4A105T-311 |
| Emission Standard | EPA Tier 2 / EU Stage II |
| Std Loader Bucket Heaped | 1.0 m³ |
| Std Backhoe Bucket Heaped | 0.2 m³ |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 8,300 kgClass-defining weight for application matching.
- Engine power 72 kW (98 hp) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Travel speed 44 km/hEfficient repositioning and cycle times on site.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The CLG764A is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for CLG764A Backhoe Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
