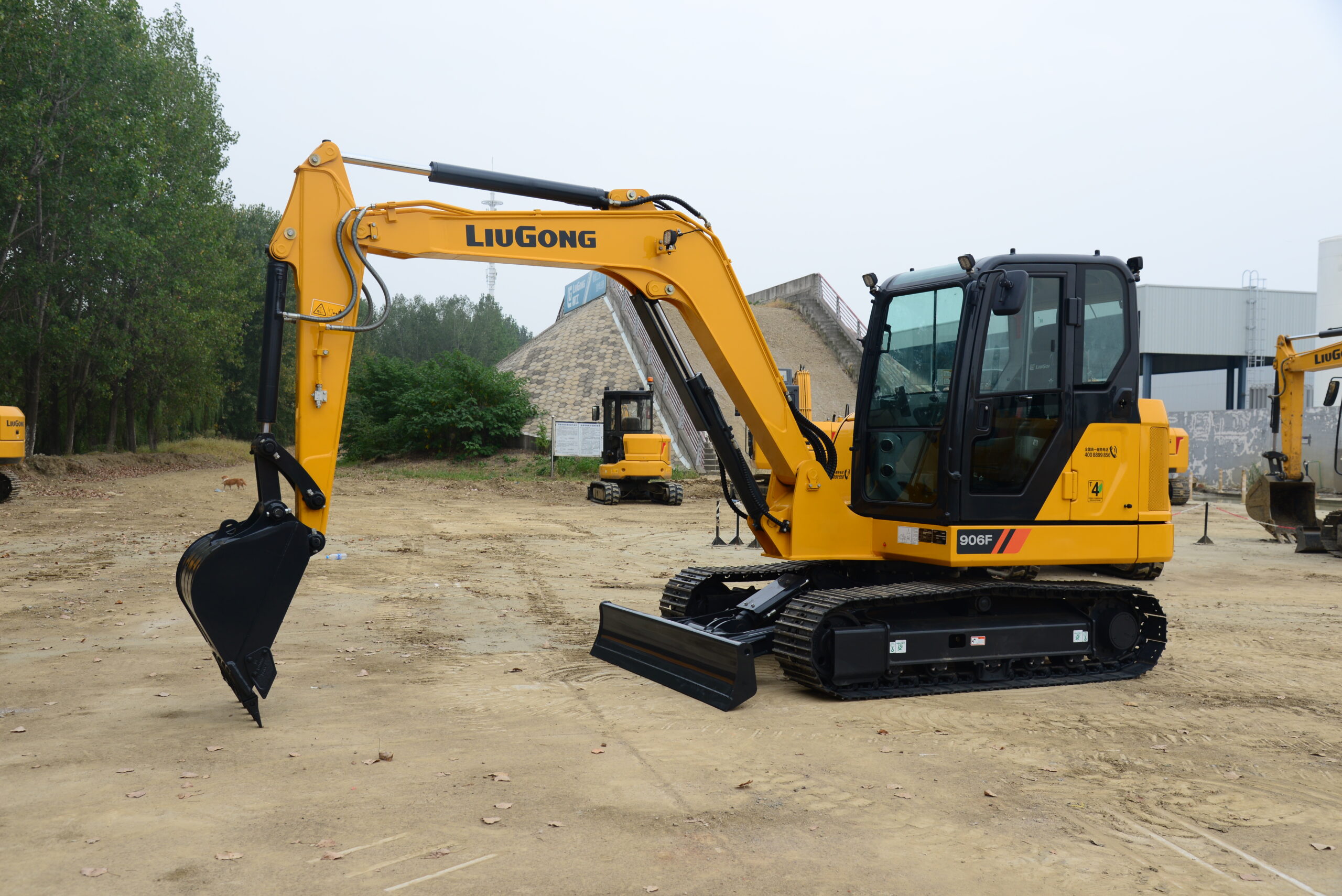

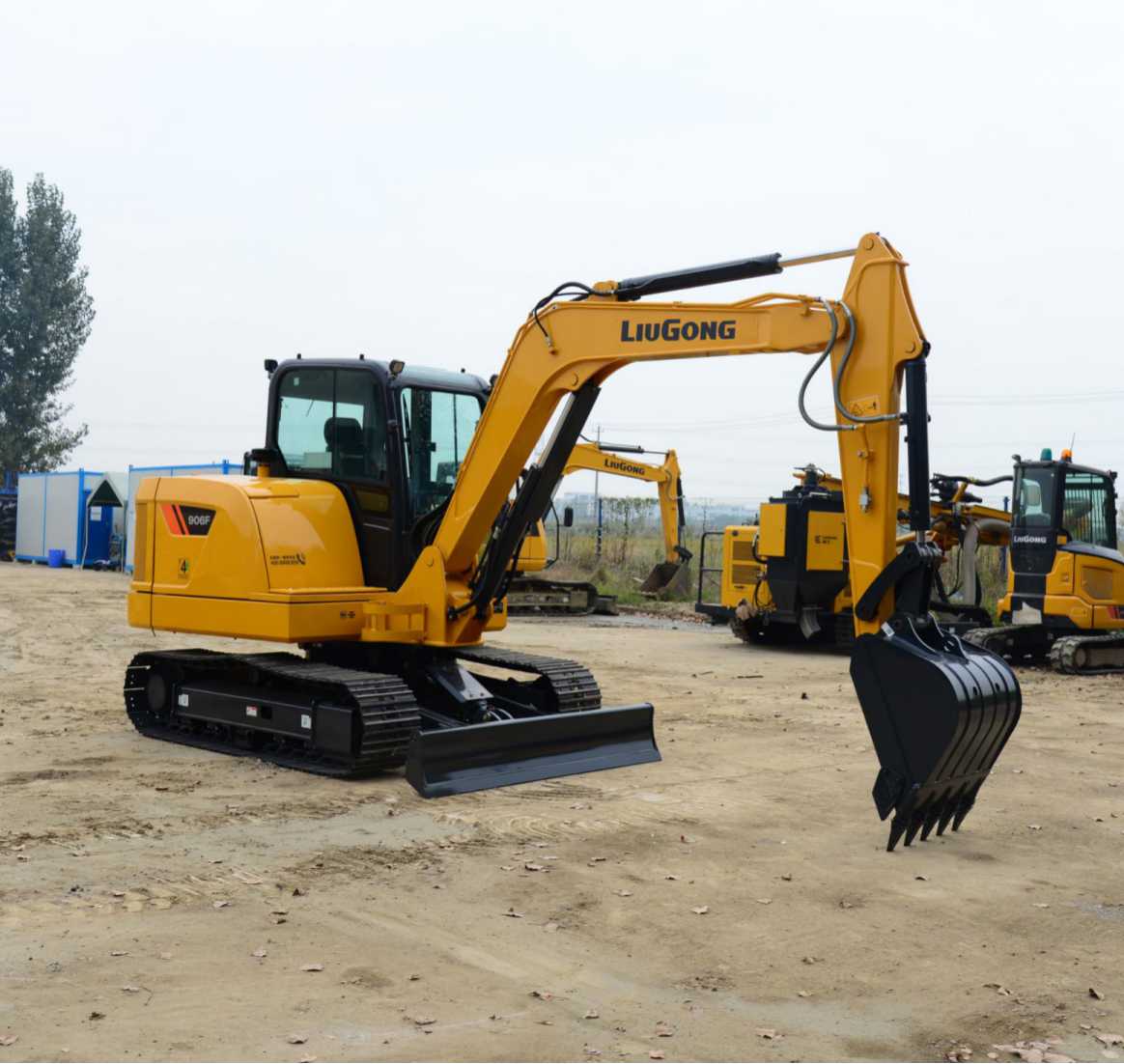

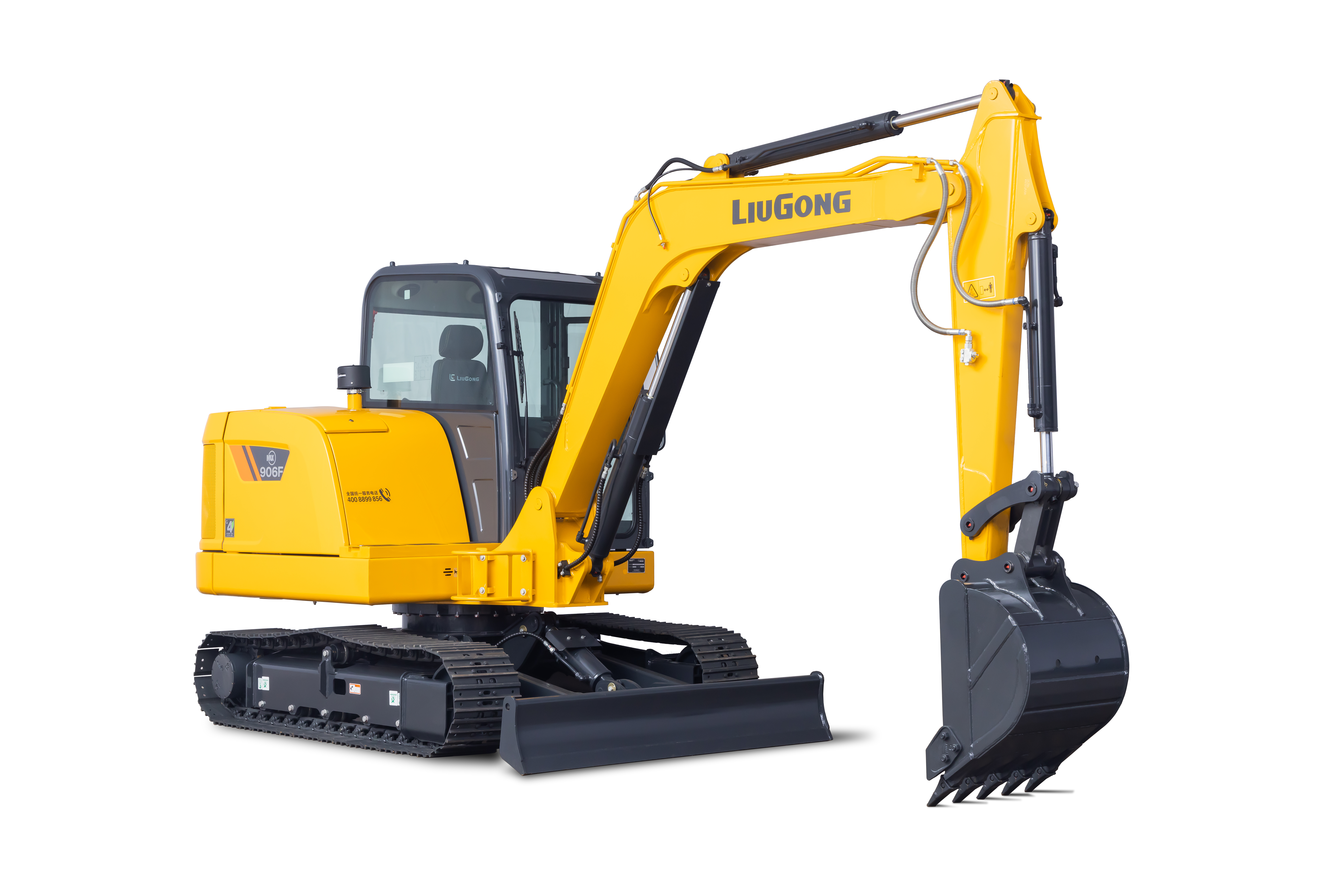

906F Excavator
The LiuGong 906F crawler excavator offers operating weight of 5,600 kg; engine power of 35.9 kW@2000 rpm; std. bucket capacity of 0.21 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
906F Excavators
Operating weight
5,600 kg
Engine power
35.9 kW@2000 rpm
Std. Bucket capacity
0.21 m³
Specifications
| Operating weight | 5,600 kg |
|---|---|
| Engine power | 35.9 kW@2000 rpm |
| Travel speed(Low) | 2.5 km/h |
| Arm breakout force | 31 kN |
| Shipping length | 5,900 mm |
| Boom | 3,000 mm |
| Model | Yanmar 4TNV94L-ZCWCLY |
| System pressure | 25 MPa |
| Std. Bucket capacity | 0.21 m³ |
| Travel speed(High) | 4.1 km/h |
| Maximum swing speed | 10.3 rpm |
| Bucket breakout force | 41 kN |
| Shipping width | 1,960 mm |
| Arm | 1,600 mm |
| System maximum flow | 136 L/min |
Key Features
- Operating weight 5,600 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 35.9 kW@2000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.21 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 906F is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
Get a Quote for 906F Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
