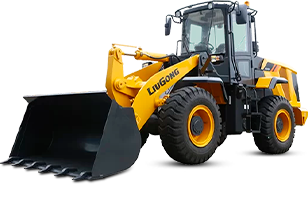

835H Wheel Loader

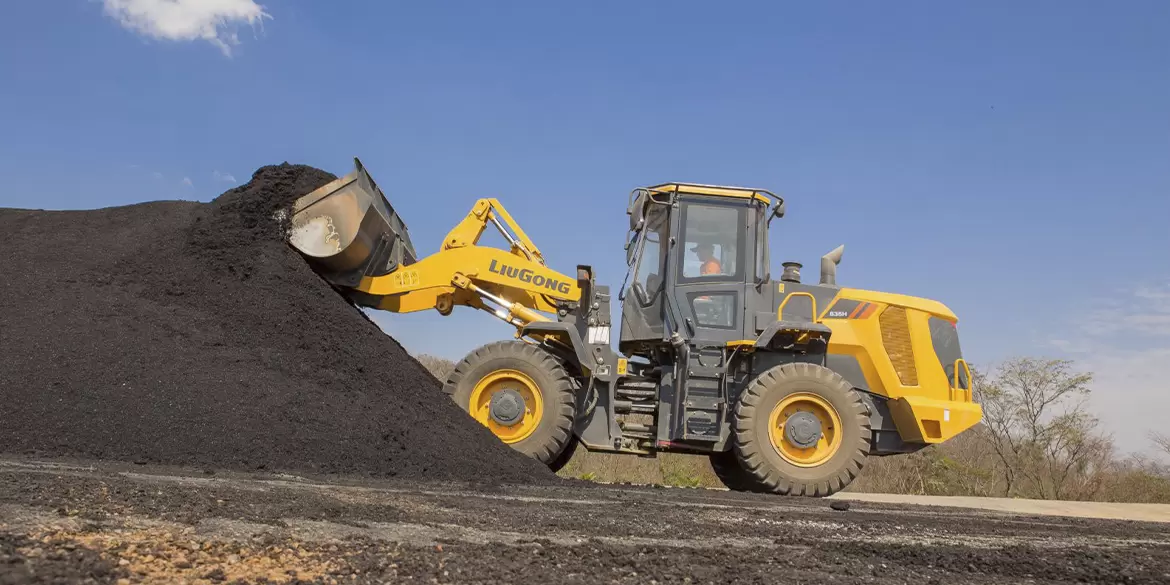

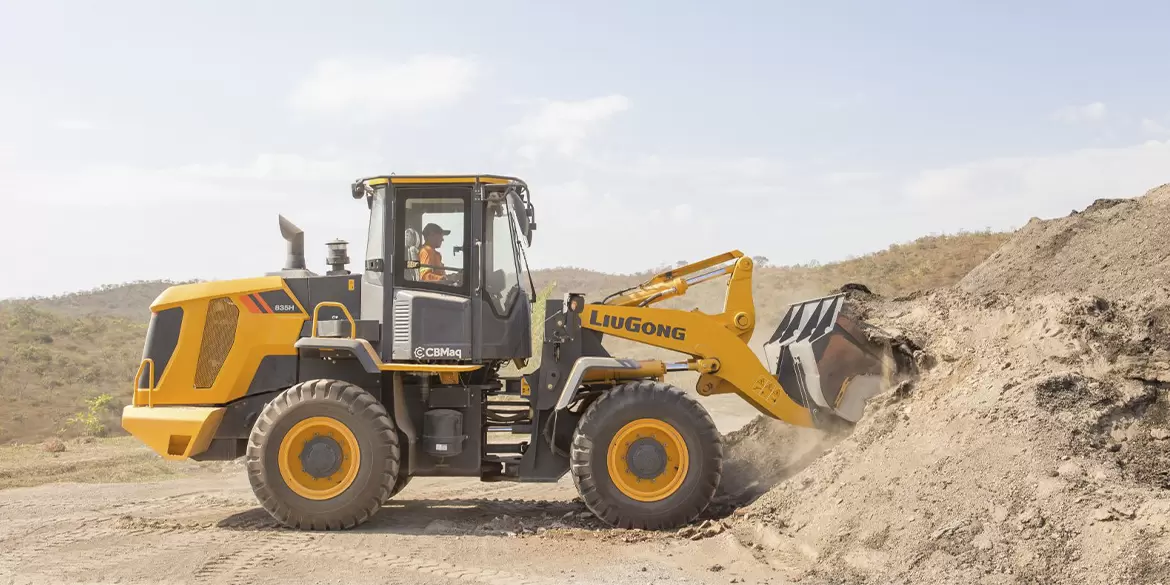

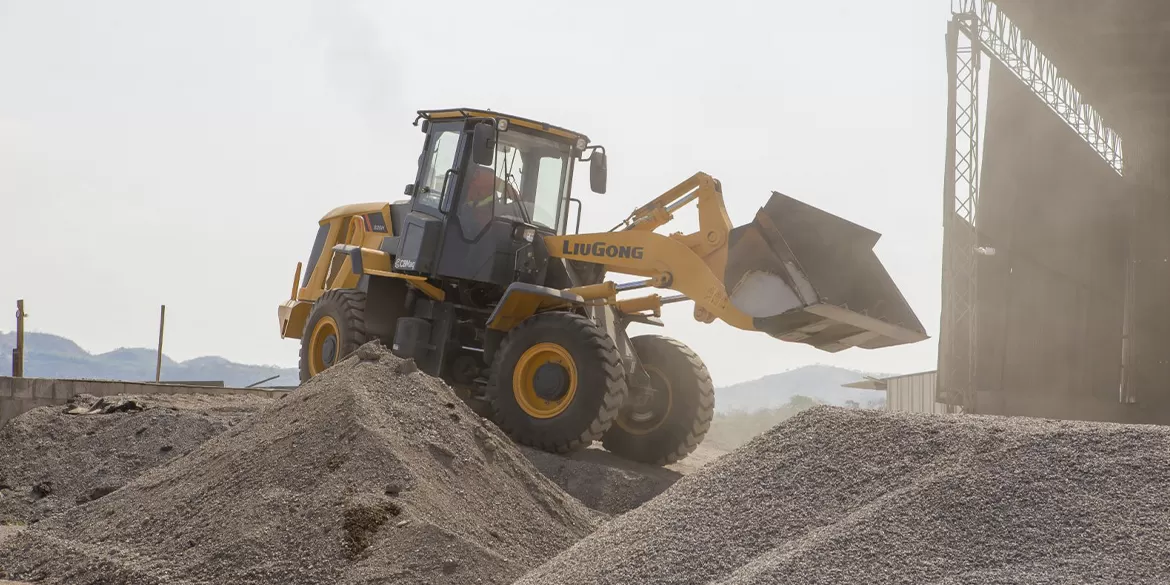

The LiuGong 835H wheel loader built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
835H Wheel Loaders
Operating Weight
10,125 kg
Operating Weight
12,725 kg
Rated Power
92 kW (123 hp / 125 ps) @ 2000 rpm
Specifications
| Operating Weight | 10,125 kg |
|---|---|
| Rated Power | 92 kW (123 hp / 125 ps) @ 2000 rpm |
| Raise | 5.5 s |
| Tipping Load-Full Turn | 6,700 kg |
| Dump Clearance, Full Height Discharge | 2,930 mm |

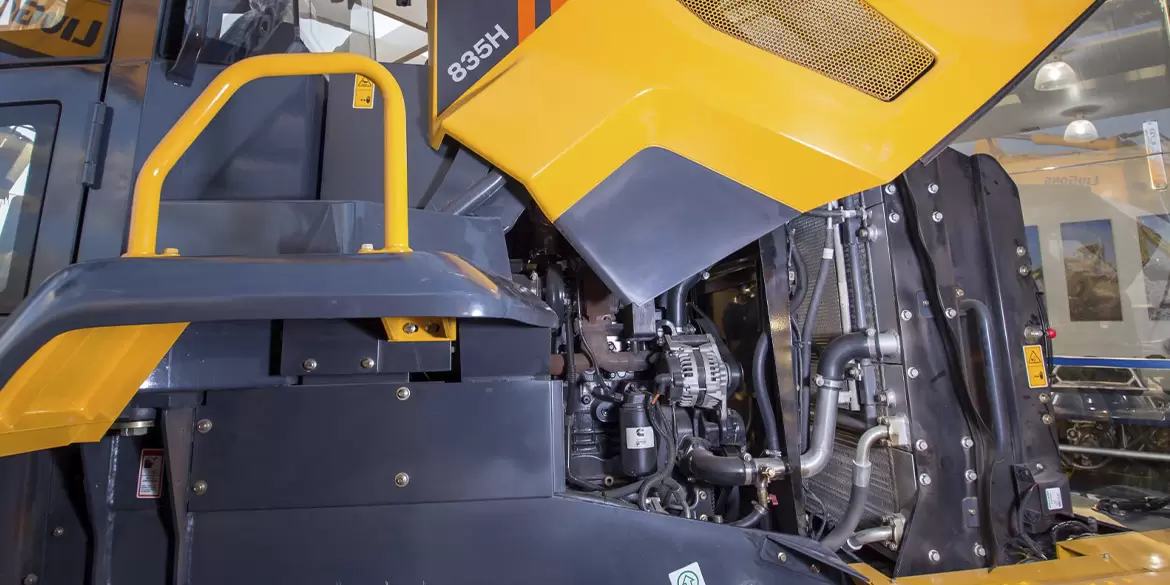

| Model | Yuchai YC6J125Z |
| Width over Tires | 2,295 mm |
| Turning Radius, Outside of Tire | 5,090 mm |
| GP Bucket | 1.7-3.0 m³ |
| Slag Bucket | 1.5 m³ |
| Standard Bucket Capacity | 1.8 m³ |
| Total Hydraulic Cycle Time | 9.7 s |
| Maximum Travel Speed, fwd | 36 km/h |
| Bucket Breakout Force | 102 kN |
| Dump Reach at Full Height Discharge | 1,035 mm |
| Emission Rating | Tier 2 / Stage II |
| Length with Bucket Down | 7,150 mm |
| Cab Height | 3,340 mm |
| Bucket Capacities | 1.5-3.0 m³ |
| Rock bucket | 1.5 m³ |
| ※For reference only. | 835H (EU Stage V) |
| Operating Weight | 12,725 kg |
| Gross Power | 115 kW (154 hp / 156 ps) @ 2200 rpm |
| Total Hydraulic Cycle Time | 9.4 s |
| Maximum Travel Speed, rev | 38 km/h |
| Bucket Breakout Borce | 121 kN |
| Dump Reach at Full Height Discharge | 1,168 mm |
| Length with Bucket Down | 7,347 mm |
| Cab Height | 3,370 mm |
| Bucket Capacities | 1.8-4.0 m³ |
| Standard Bucket Capacity | 1.9 m³ |
| Net Power | 106 kW (142 hp / 144 ps) @ 2,200 rpm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 10,125 kgCompact utility class — warehousing, mixing plants and light material handling.
- Engine power 106 kW (142 hp / 144 ps) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.8 m³Sized for efficient loading cycles and production targets.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.

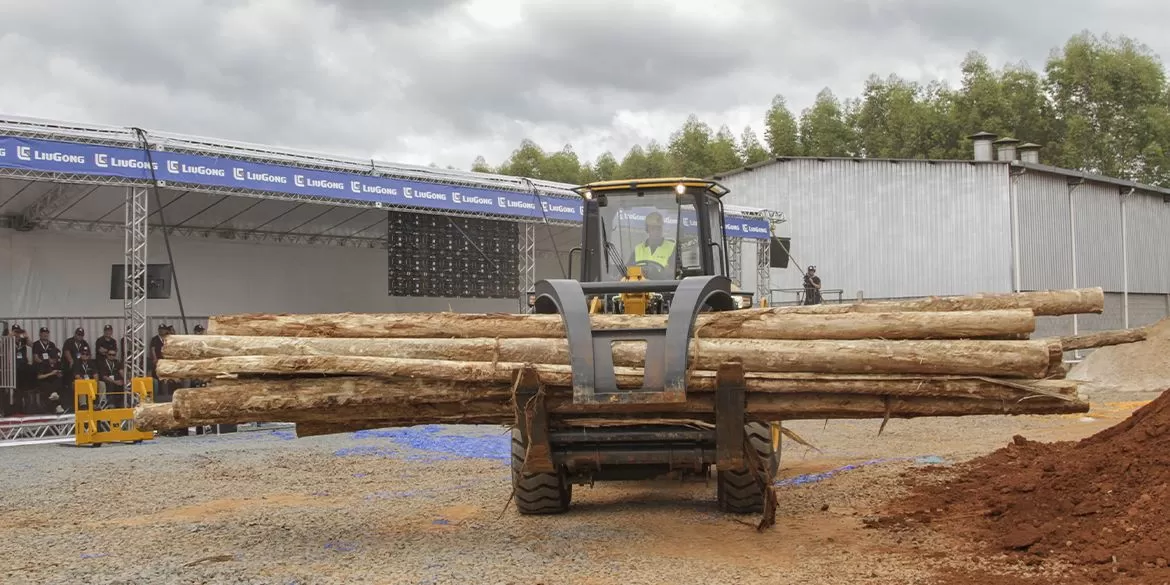

Applications
The 835H is suited to Warehousing, mixing plants and light material handling. Tell us your material and application and we will recommend the right configuration.
