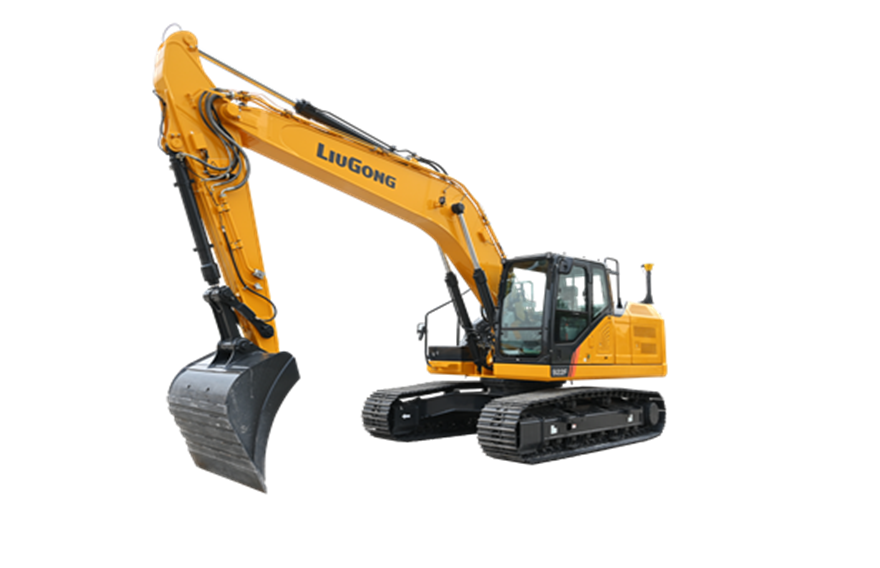

922F Excavator
The LiuGong 922F crawler excavator offers operating weight of 22800 kg; std. bucket capacity of 1.1 m³; engine power of 116 kW @ 2200 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
922F Excavators
Operating weight
22800 kg
Std. Bucket capacity
1.1 m³
Engine power
116 kW @ 2200 rpm
Specifications
| Operating weight | 22800 kg |
|---|---|
| Std. Bucket capacity | 1.1 m³ |
| Travel speed(Low) | 3.3 km/h |
| Arm breakout force | 105 kN |
| Shipping length | 9620 mm |
| Shipping height | 3000 mm |
| Boom | 5710 mm |
| Digging reach | 9870 mm |
| Digging depth | 6700 mm |
| Cutting height | 9740 mm |
| Minimum front swing radius | 3135 mm |
| Emission | Stage V / Tier 4F |
| Engine power | 116 kW @ 2200 rpm |
| Travel speed(High) | 5.6 km/h |
| Maximum swing speed | 10.5 rpm |
| Bucket breakout force | 152.5 kN |
| Shipping width | 2990 mm |
| Track shoe width (std) | 600 mm |
| Arm | 2915 mm |
| Digging reach on ground | 9720 mm |
| Vertical wall digging depth | 5140 mm |
| Dumping height | 7000 mm |
| Model | Cummins B6.7 |
| System maximum flow | 2×214.5 L/min |
| ※For reference only. | 922F－Stage III |
| Operating weight | 22800 kg |
| Std. Bucket capacity | 1.1 m³ |
| Maximum swing speed | 10.5 rpm |
| Bucket breakout force | 152.5 kN |
| Shipping width | 2990 mm |
| Track shoe width (std) | 600 mm |
| Arm | 2915 mm |
| Digging reach on ground | 9720 mm |
| Vertical wall digging depth | 4820 mm |
| Dumping height | 7000 mm |
| Engine model | Cummins QSB7 |
| System maximum flow | 429 L/min |
| Engine power | 124 kW (167 hp / 169 ps) @ 2,050 rpm |
| Maximum travel speed | 5.6 km/h |
| Arm breakout force | 105 kN |
Key Features
- Operating weight 22800 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 116 kW @ 2200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.1 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 922F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 922F Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
