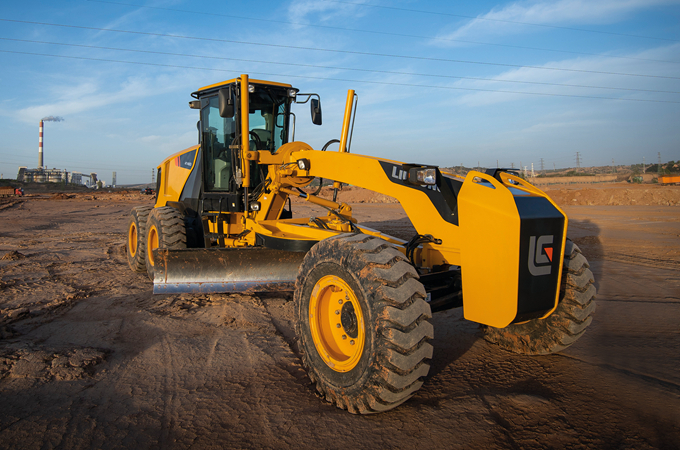

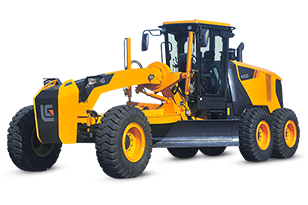

4140D Motor Grader
The LiuGong 4140D motor grader offers operating weight of 12,600 kg; power of 118 kW (158 hp) @ 2,200 rpm; engine model of Cummins 6BTAA5.9-C160. Precise road grading, site levelling and surface finishing; reliable powertrain and comfortable, high-visibility operator station. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
4140D Engine Graders
Operating Weight
12,600 kg
Power
118 kW (158 hp) @ 2,200 rpm
Engine Model
Cummins 6BTAA5.9-C160
Specifications
| Operating Weight | 12,600 kg |
|---|---|
| Power | 118 kW (158 hp) @ 2,200 rpm |
| Engine Model | Cummins 6BTAA5.9-C160 |
| Emission Standard | Tier II |
| Drawbar Pull | 65 kN |
| Transmission | ZF |
| Speeds | 6F / 3R |
| Max Speed (F/R) | 42 km/h / 26.5 km/h |
| Blade Width | 3,660 mm |
| Cut Depth | 600 mm |
| Blade Angling | 28° ~ 74° |
| Blade Thickness | 19 mm |
| Max Blade Clearance | 520 mm |
| Differential | Limited-slip |
| Min Turning Radius | 7,280 mm |
| Overall Length | 8,440 mm |
| Transport Width | 2,675 mm |
| Transport Height | 3,350 mm |
| Fuel Tank | 348 L |
| Tires | 13.00-24 G2 |
| Ripper | Standard |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 12,600 kgClass-defining weight for application matching.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 4140D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 4140D Motor Grader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
