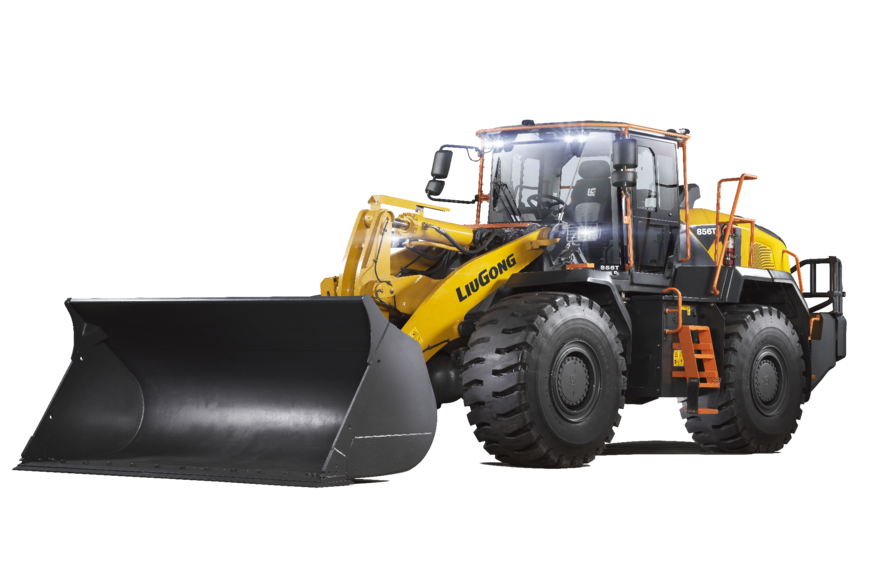

855T Wheel Loader
The LiuGong 855T wheel loader built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
855T Wheel Loaders
Operating Weight
16,500 kg
Operating Weight
17,000 kg
Rated Power
170 kW ( 228 hp / 231 ps ) @ 2,000 rpm
Specifications
| Operating Weight | 16,500 kg |
|---|---|
| Rated Power | 170 kW ( 228 hp / 231 ps ) @ 2,000 rpm |
| Raise | 5.0 s |
| Bucket Breakout Force | 175 kN |
| Dump Reach at Full Height Discharge | 1,218 mm |
| Emissions | Tier 3/Stage III |
| Length with Bucket Down | 8,360 mm |
| Cab Height | 3,400 mm |
| Bucket Capacities | 2.7-5.6 m³ |
| Light Material Bucket | 5.0 m³ |
| Standard Bucket Capacity | 3.3 m³ |
| Total Hydraulic Cycle Time | 9.4 s |
| Tipping Load-Full Turn | 11,000 kg |
| Dump Clearance, Full Height Discharge | 3,050 mm |
| Model | Cummins L9 |
| Width over Tires | 2,750 mm |
| Turning Radius, Outside of Tire | 6,270 mm |
| GP Bucket | 2.7-4.2 m³ |
| ※For reference only. | 855T (Tier 2/Stage II) |
| Operating Weight | 17,000 kg |
| Rated Power | 162 kW (217 hp / 220 ps) @ 2,200 rpm |
| Raise | 5.3 s |
| Tipping Load-Full Turn | 11,000 kg |
| Dump Clearance at Full Height Discharge | 3,050 mm |
| Model | Cummins 6LTAA9.3 |
| Width over Tires | 2,750 mm |
| Turning Radius, Outside of Tire | 6,274 mm |
| GP Bucket | 2.7-4.2 m³ |
| Standard Bucket Capacity | 3.3 m³ |
| Total Hydraulic Cycle Time | 10 s |
| Maximum Travel Speed, fwd | 40 km/h |
| Bucket Breakout Force | 175 kN |
Key Features
- Operating weight 16,500 kgStandard class — construction sites, aggregates and loading work.
- Bucket capacity 3.3 m³Sized for efficient loading cycles and production targets.
- Tipping load 11,000 kgStable loading performance and payload confidence.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 855T is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 855T Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
