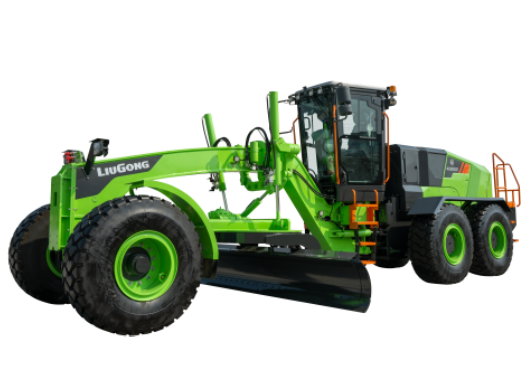

4280DE Motor Grader
The LiuGong 4280DE motor graders delivers operating weight of 24,000 kg; blade width of 4,270 mm; drawbar pull of 123 kN. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
4280DE Motor Graders
Operating Weight
24,000 kg
Blade Width
4,270 mm
Drawbar Pull
123 kN
Key Features
- Pure electric drive, green environmental protection, better benefitseasily cope with the crisis of rising oil prices, bring long-term sustainable green development to enterprises.
- Ultra-large capacity battery pack, ultra-long lifefast charging 1.6 hours, normal working conditions of up to 6 to 10 hours, ultra-large capacity lithium iron phosphate battery, safe and durable, ultra-long warranty, enjoy worry-free.
Specifications
| Operating Weight | 24,000 kg |
|---|---|
| Standard Moldboard Size | 4,270*645*19 mm |
| Rated Storage Energy | 423 kWh |
| Drawbar Pull | 123 kN |
| Steering Angle | ±50° |
| Front Axle, Wheel Lean Angle | ±18° |
| Front Axle Oscillation | ±16° |
| Length (Standard configuration) | 9,980 mm |
| Overall Width Over Tires | 2,860 mm |
| Cab Height | 3,530 mm |
| Wheelbase | 6,700 mm |
| Middle and Rear Wheel Wheelbase | 1,632 mm |
| Ground Clearance | 422 mm |
| Minimum Turning Radius | 7,500 mm |
Applications
The 4280DE is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 4280DE Motor Grader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
