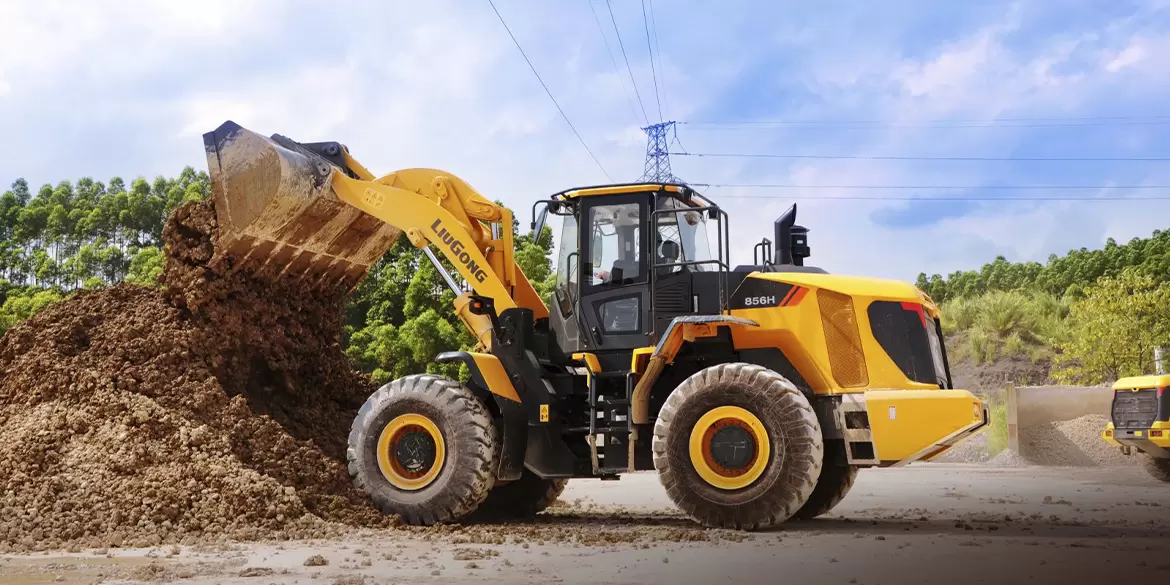

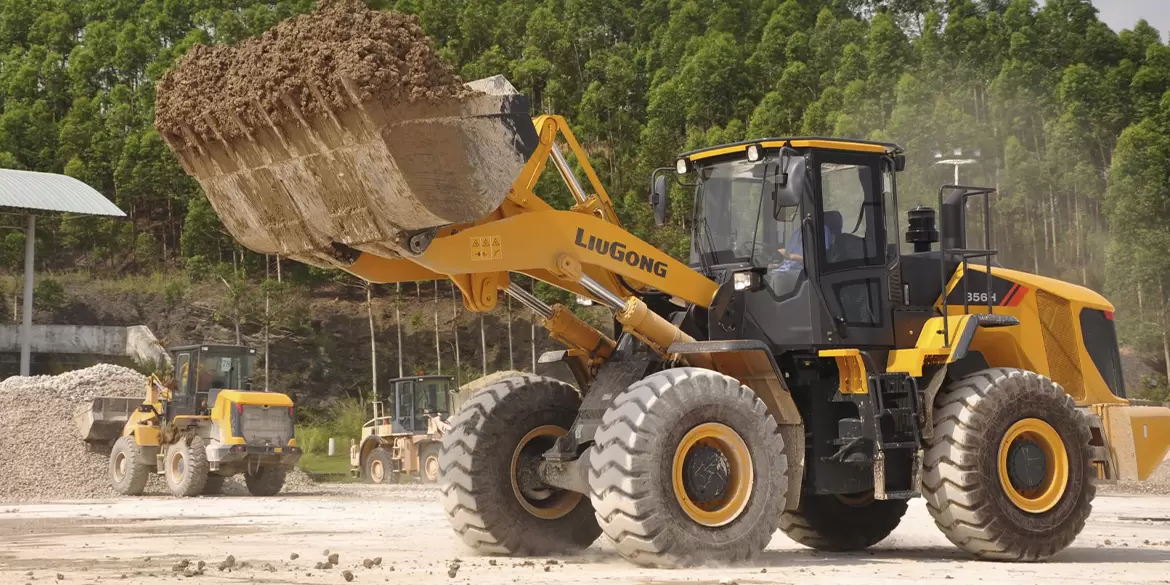

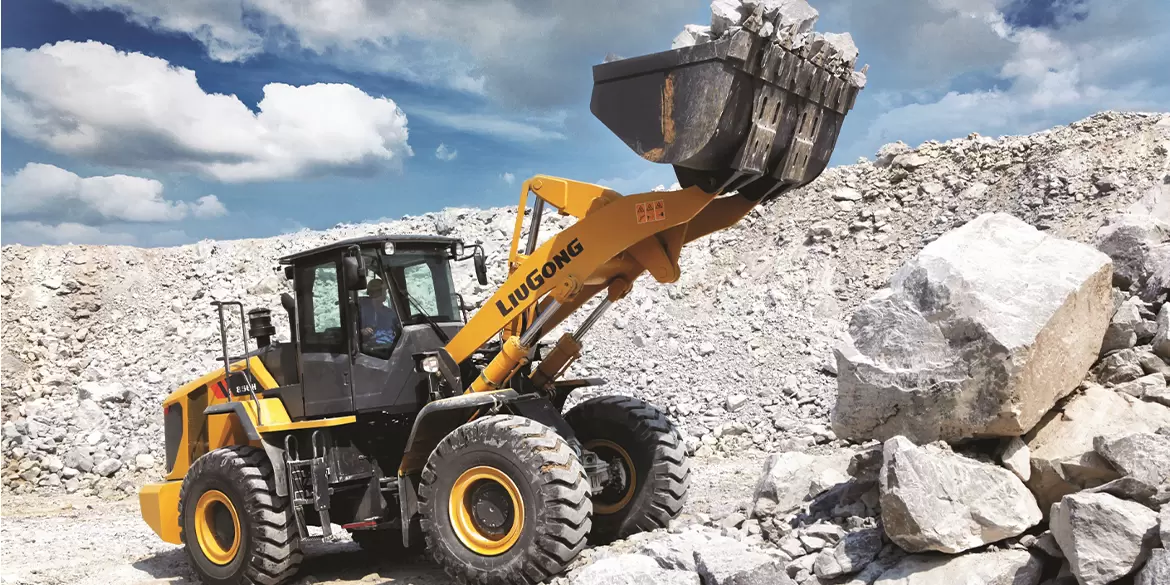

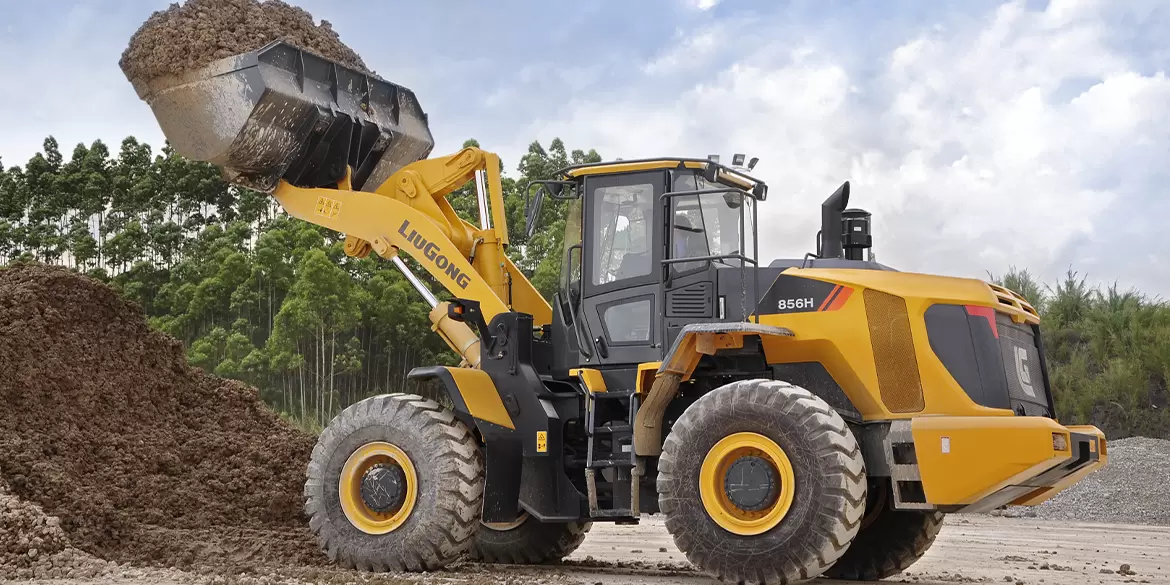

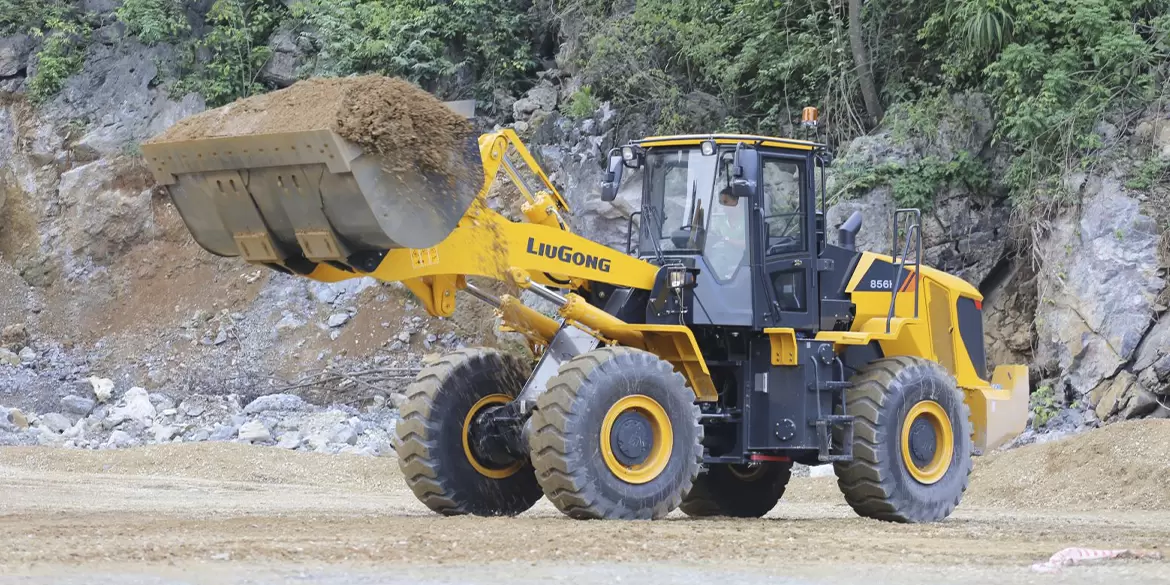

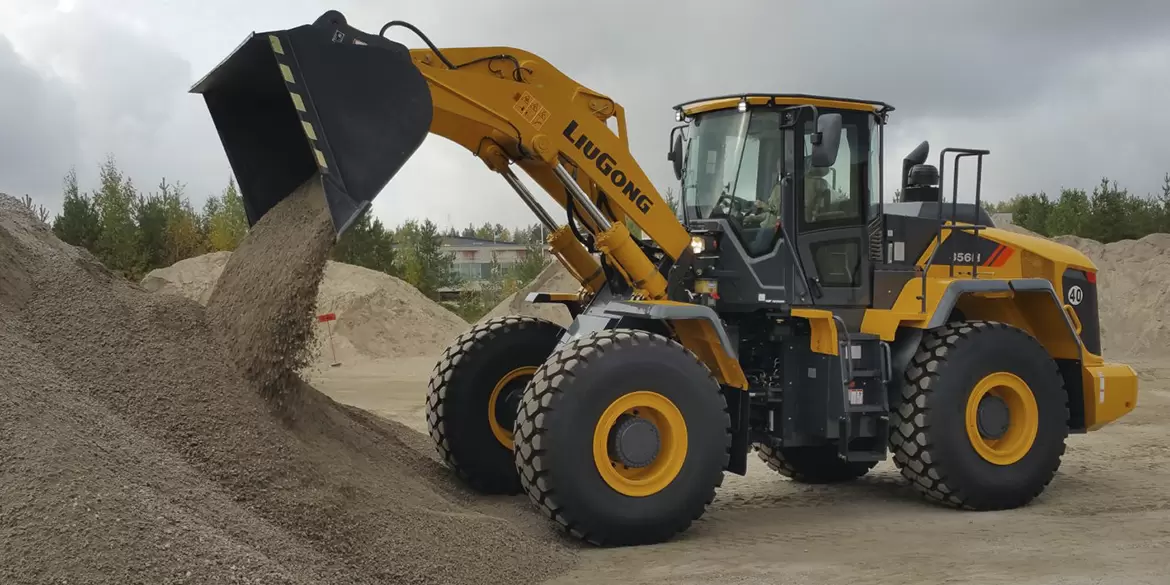

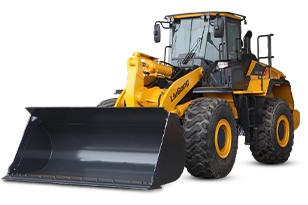

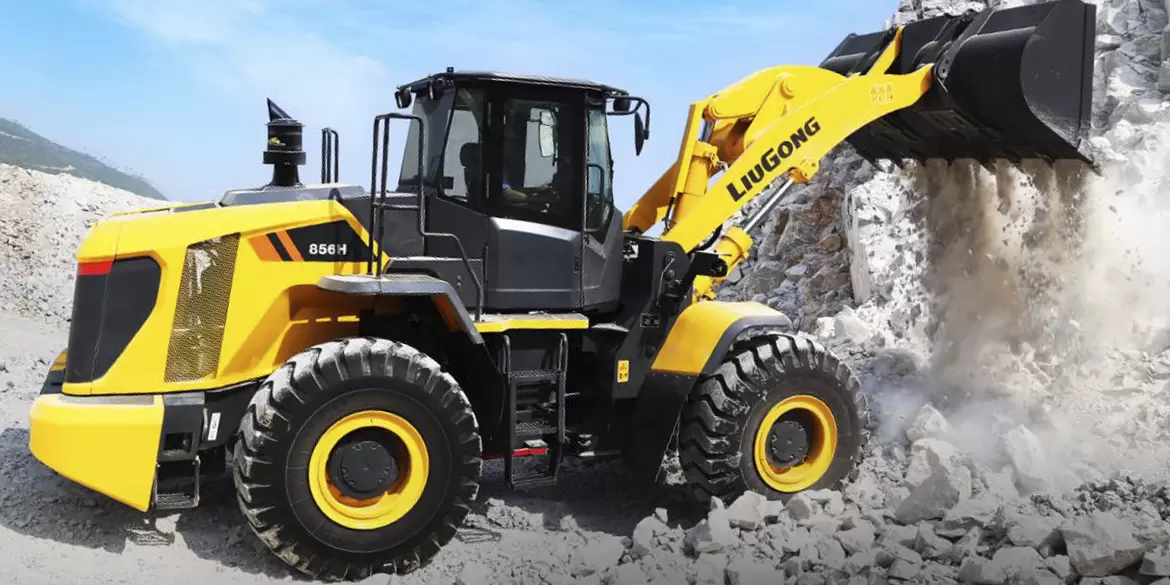

856H Wheel Loader
The LiuGong 856H wheel loader offers operating weight of 17180 kg; general purpose bucket capacity of 3,5 m³; cucharón estándar of 3,3 m³. Built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
856H Wheel Loaders
Operating Weight
17180 kg
General Purpose Bucket Capacity
3,5 m³
Cucharón estándar
3,3 m³
Specifications
| Operating Weight | 17180 kg |
|---|---|
| Standard Bucket | 3.3 m³ |
| Gross Power | 162 kW (220 hp) @ 2.000 rpm |
| Net Power | 154 kW (209 hp) @ 2.000 rpm |
| Volteo con carga completa | 11760 kg |
| Bucket Digging Force | 179 kN |
| Dump Clearance at Full Height | 3,100 mm |
| Dump Reach at Full Height | 1,126 mm |
| Model | Cummins 6LT9.3 (tier II) |
| Emission Standard | EPA Tier 3 / EU Stage IIIA |
| Length with Bucket Down | 8,285 mm |
| Width over Tires | 2,750 mm |
| Cab Height | 3500 mm |
| Turning Radius, Outside of Tire | 6,205 mm |
| Tanque de combustible | 300L |
| Reference Buckets | Turbocharged and air-to-air aftercooled |
| Rated Payload | 5000kg |
| Tiempo total del ciclo | 10s |
| Static Tipping Load (Full Turn) | 11,800 kg |
| Dump Clearance | 3,013 mm |
| Dumping Reach | 1195 mm |
| Engine | Cummins 6LTAA9.3 |
| Intake | Turbocharged and air-to-air aftercooled |
| Transmission | Contraeje, Powershift electrohidraulica |
| Load Capacity | 5.500 kg |
| Total Load Cycle | 10.2 s |
| Static Tipping Load (Straight) | 13,850 kg |
| Static Tipping Load (Full Turn) | 12,150 kg |
| Bucket Breakout Force | 172 kN |
| Bucket Pin Height | 4.156 mm |
| Dumping Height | 3.015 mm |
| Engine Model | Cummins QSL9.3 |
| Cooling System | Air to Air aftercooled |
| Brakes | Oil Bath |
| Transport Length | 8.340 mm |
| Transport Width | 2.750 mm |
| Transport Height | 3.450 mm |
| External Turning Radius | 6.860 mm |
| General Purpose Bucket Capacity | 3,5 m³ |
| Balde para Roza | 3 m³ |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 17180 kgStandard class — construction sites, aggregates and loading work.
- Engine power 154 kW (209 hp) @ 2.000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 3,5 m³Sized for efficient loading cycles and production targets.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 856H is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 856H Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
