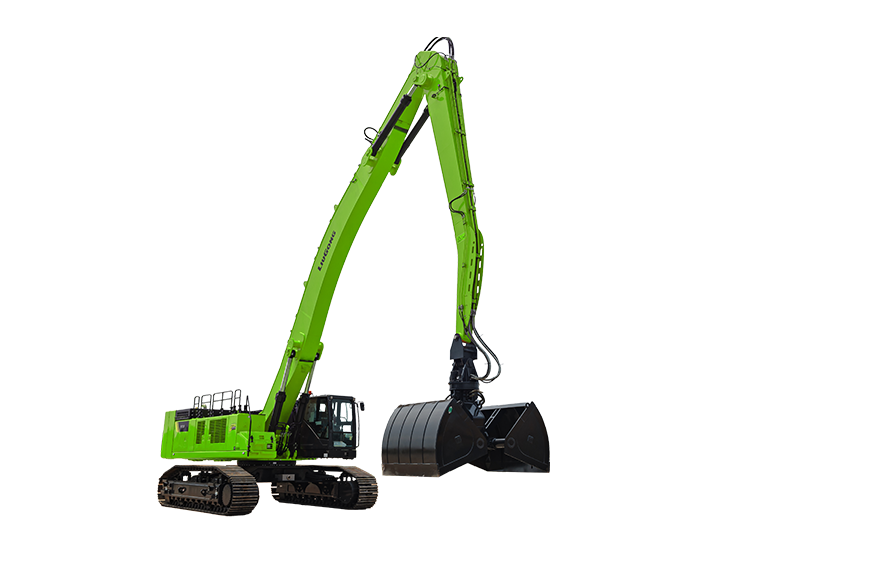

973F Excavator
The LiuGong 973F crawler excavator offers operating weight of 75,000-77,000 kg; rated power (at rated speed) of 391 kW @ 1800 rpm; standard bucket capacity of 5 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
973F Excavators
Operating Weight
75,000-77,000 kg
Rated Power (at Rated Speed)
391 kW @ 1800 rpm
Standard Bucket Capacity
5 m³
Specifications
| Operating Weight | 75,000-77,000 kg |
|---|---|
| Engine Model | Cummins X15 |
| Rated Power (at Rated Speed) | 391 kW @ 1800 rpm |
| Maximum Torque | 2373 N·m @ 1400 rpm |
| Travel Speed High/Low | 4.7/3.0 km/h |
| Gradeability | 35 ° |
| Max. Digging Force - Arm (ISO) | 331 kN |
| Length (Transport Position) | 13,090 mm |
| Height (Transport Position) | 4,710 mm |
| Undercarriage Track Length | 5,990 mm |
| Track Width (Standard) | 650 mm |
| Max. Digging Reach | 12,160 mm |
| Max. Dumping Height | 7,020 mm |
| Standard Bucket Capacity | 5 m³ |
| Net Power (at Rated Speed) | 375 kW @ 1800 rpm |
| Swing Speed | 7.51 rpm |
| Ground Pressure | 109.5 kPa |
| Max. Digging Force - Bucket (ISO) | 438 kN |
| Overall Width (Standard Track) | 4,000 / 3,360 (Variable Gauge) mm |
| Minimum Ground Clearance | 867 mm |
| Undercarriage Track Gauge | 3350 / 2710 (Variable Gauge) mm |
| Max. Digging Height | 10950 mm |
| Max. Digging Depth | 7,680 mm |
Key Features
- Operating weight 75,000-77,000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 375 kW @ 1800 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 5 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 973F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 973F Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
