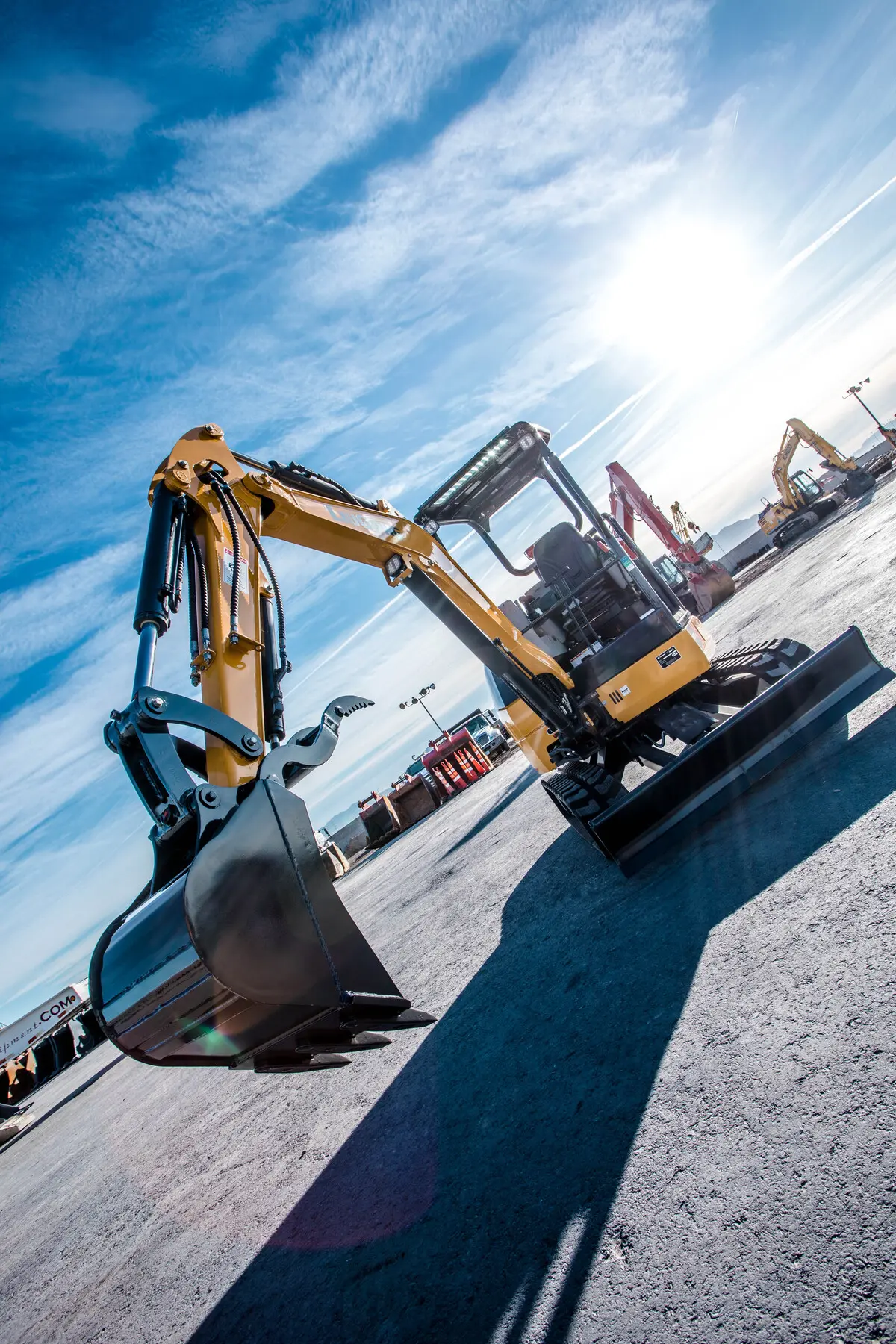

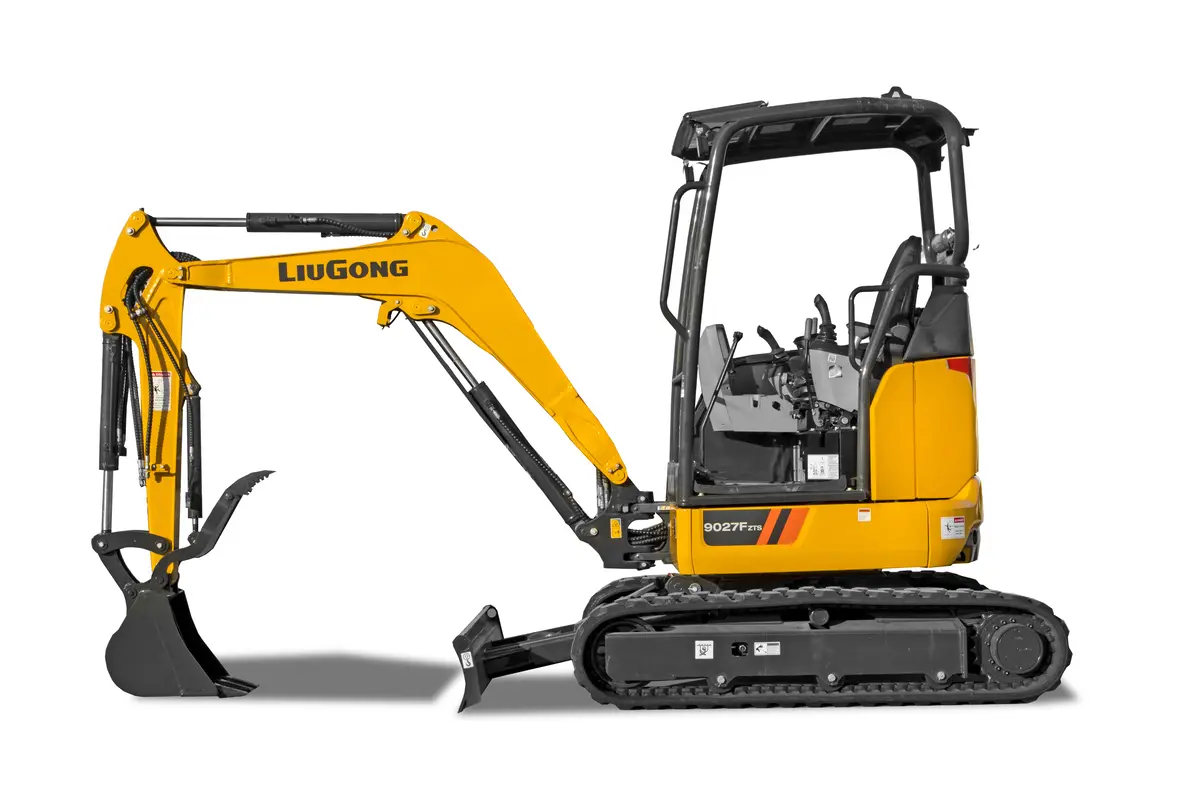

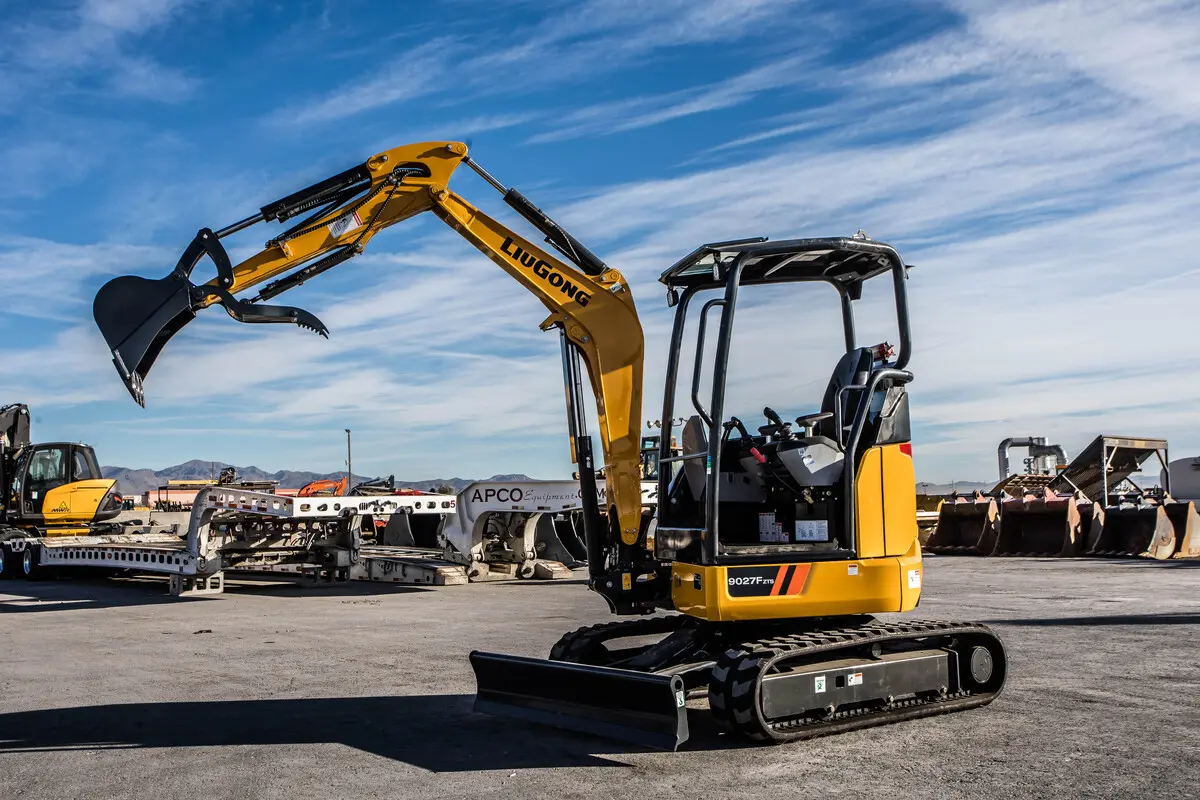

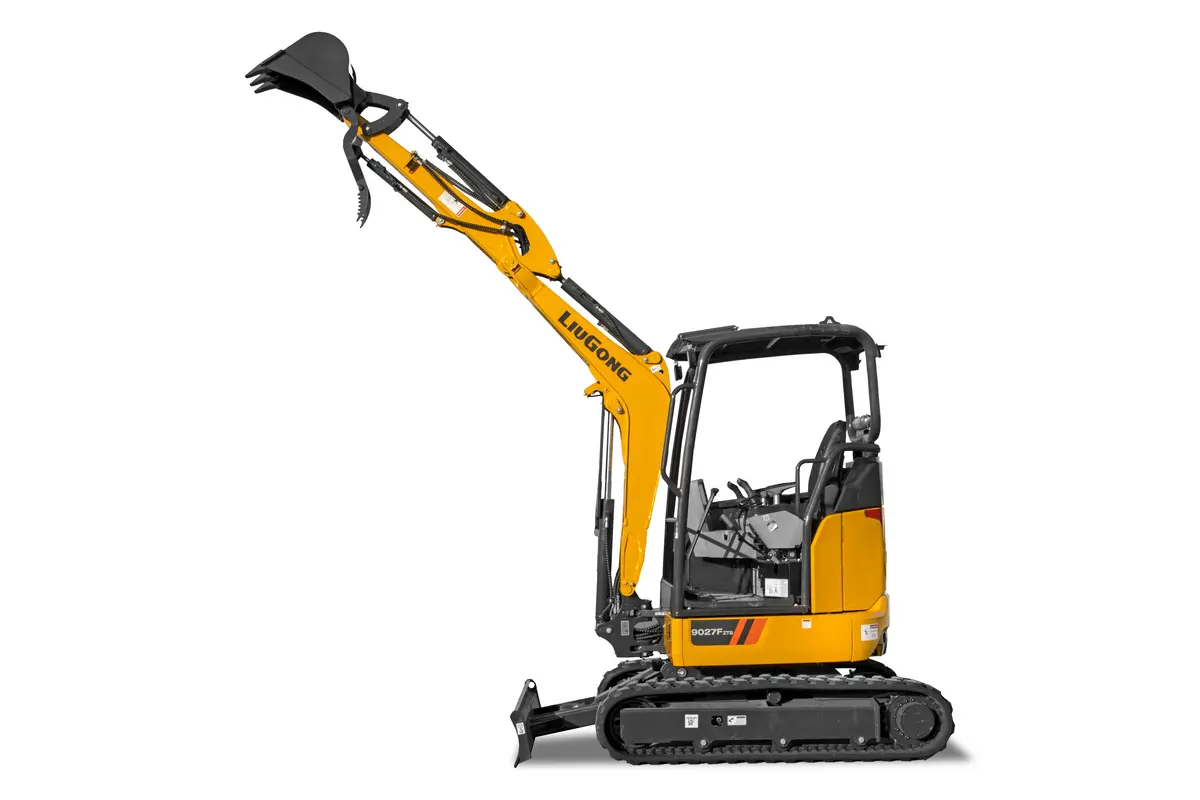

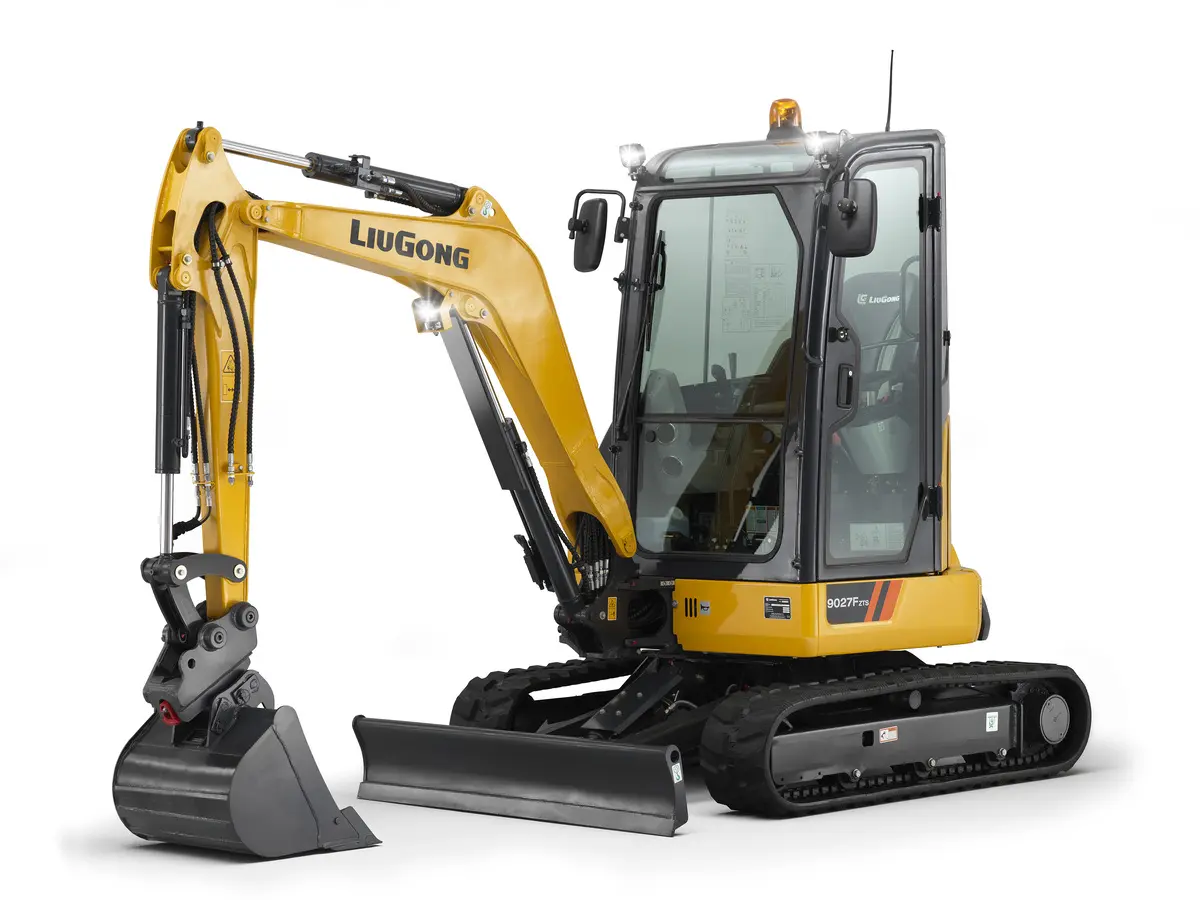

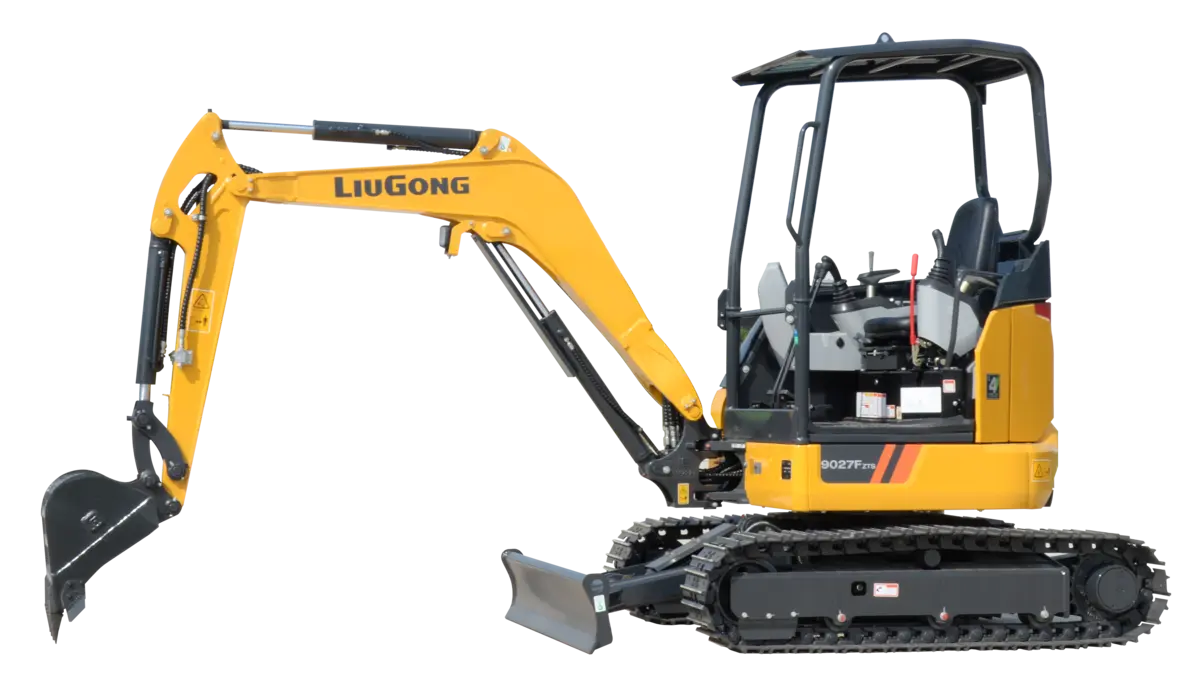

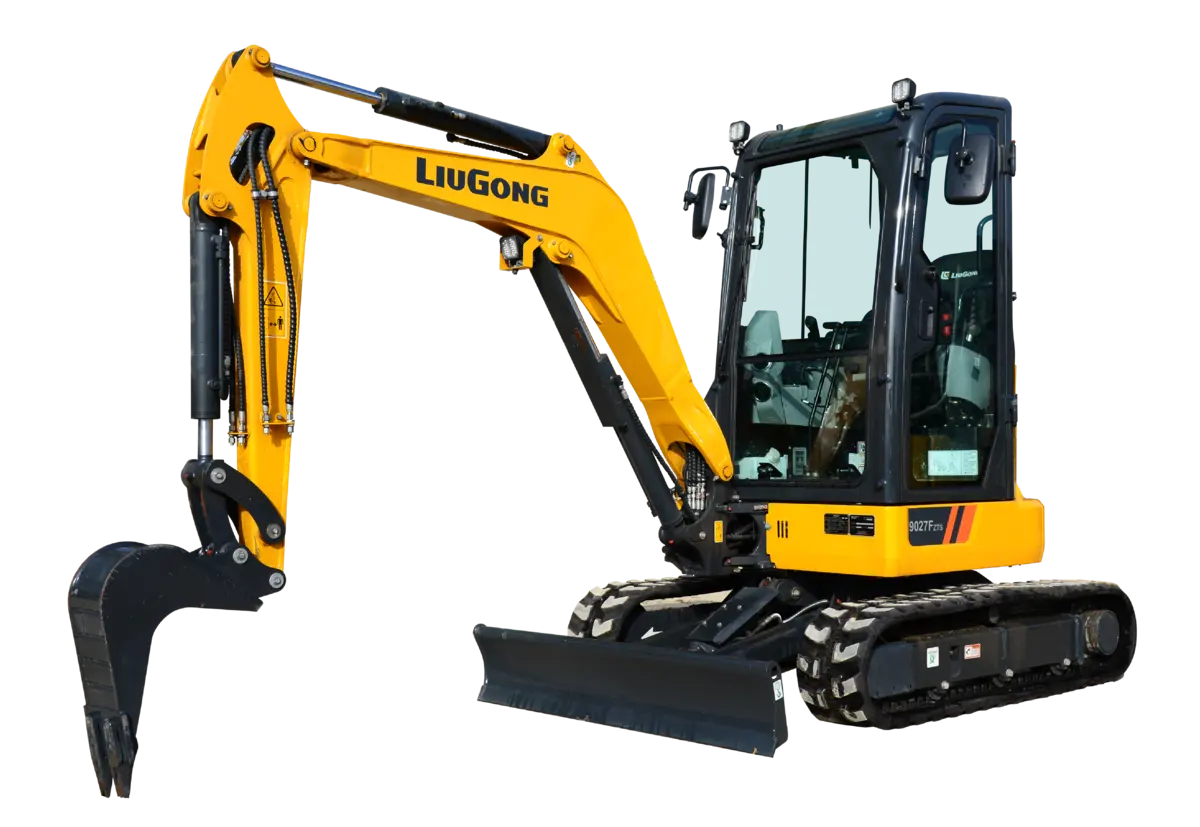

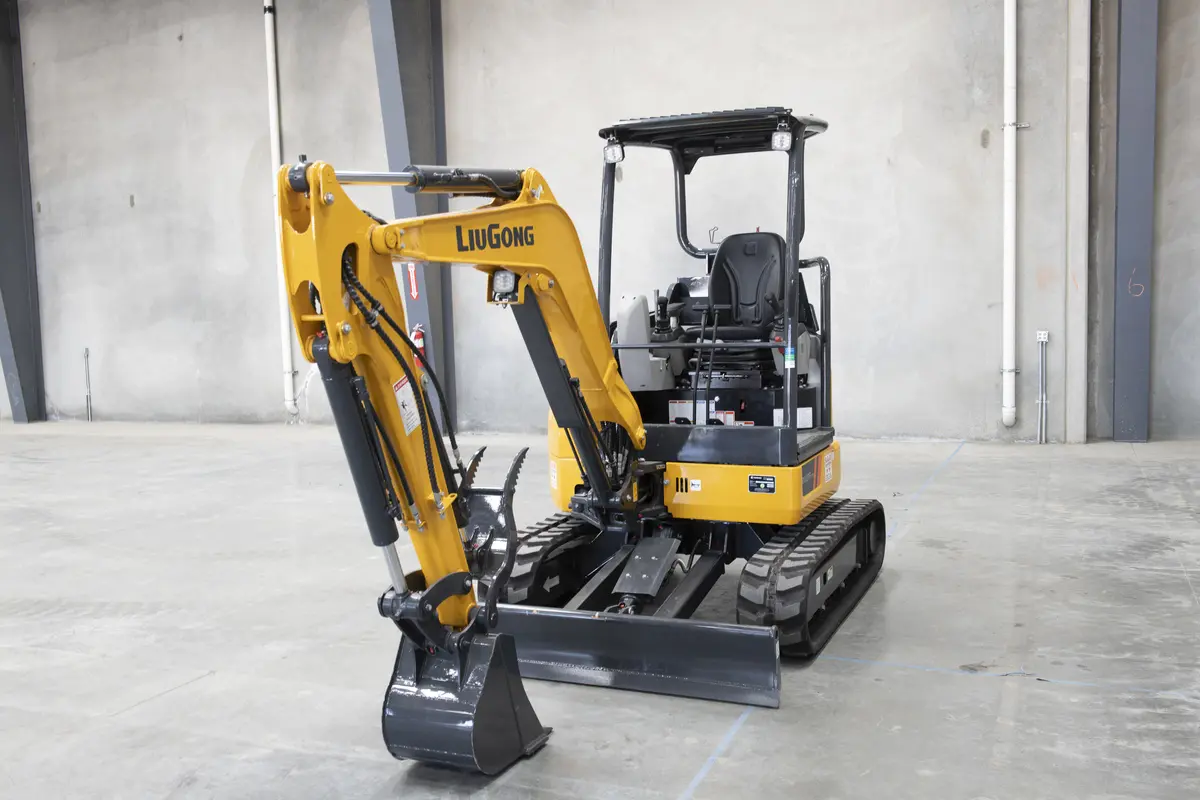

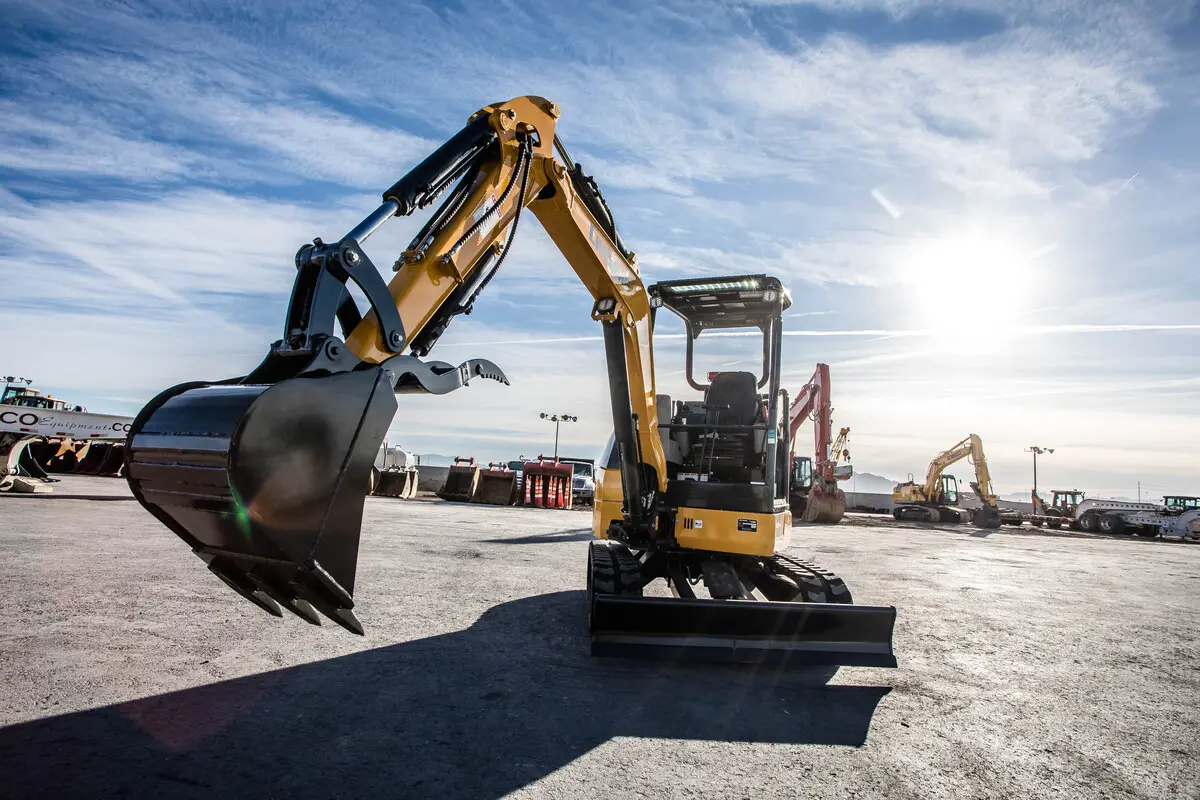

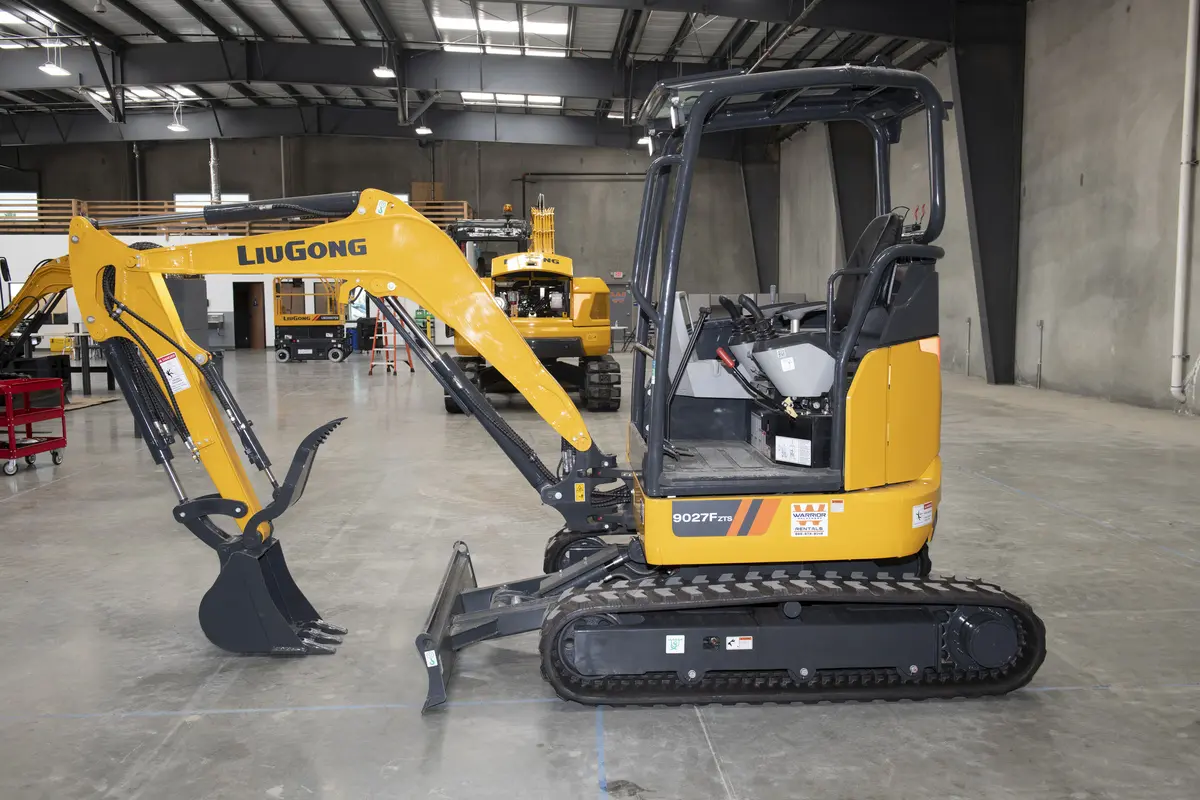

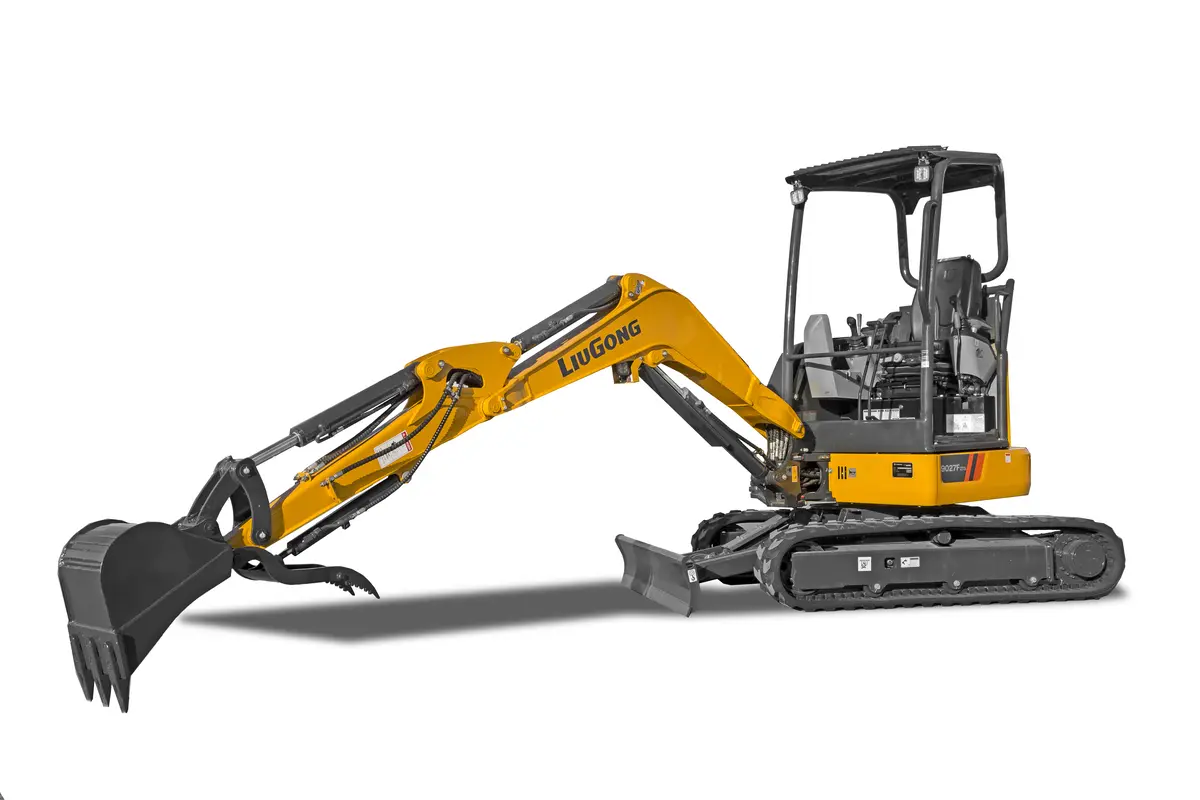

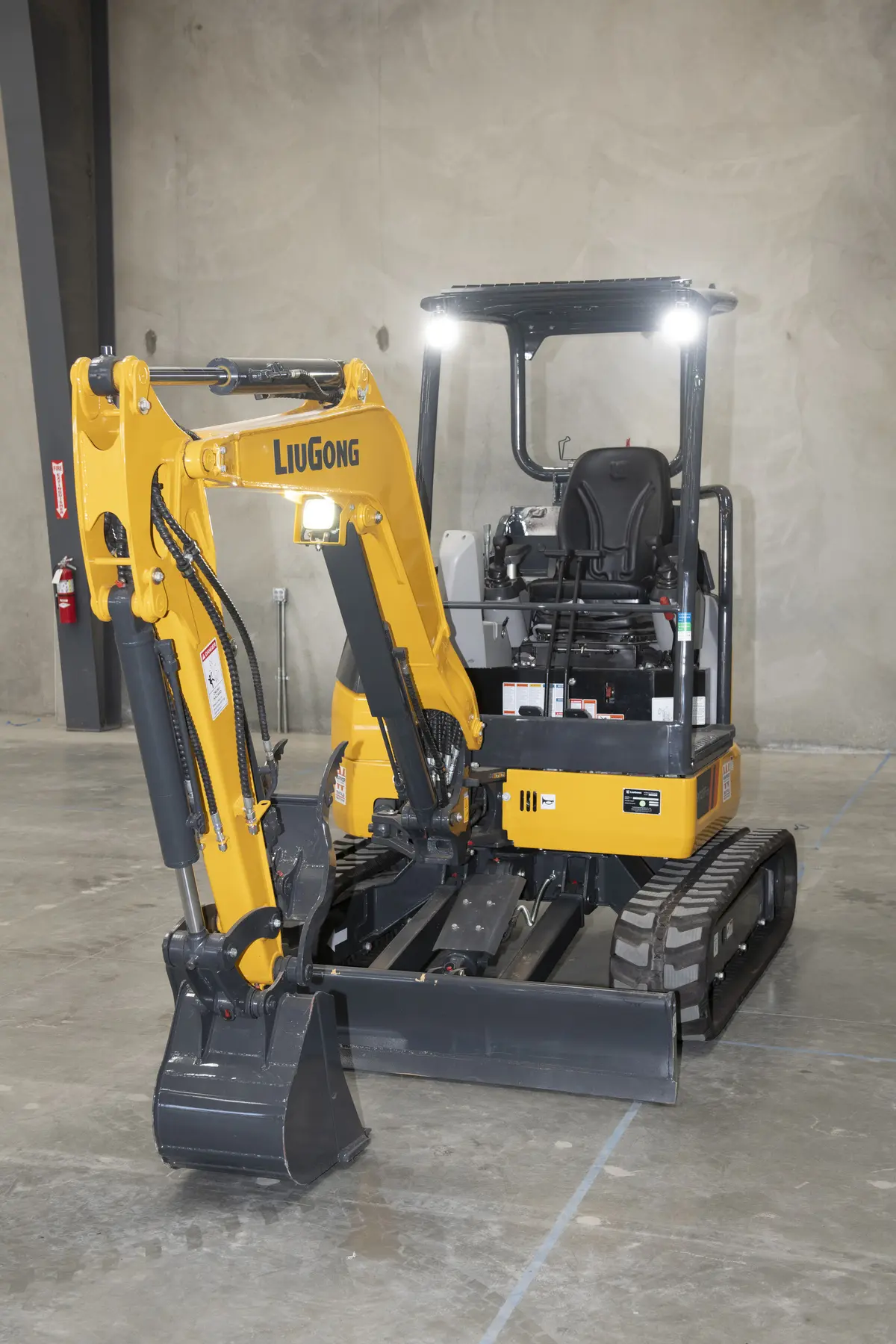

9027FZTS Excavator
The LiuGong 9027FZTS crawler excavator offers operating weight with cab of 2750 kg; engine power of 15.2 kW (20.4 hp) @ 2,500 rpm; operating weight with canopy of 2680 kg. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9027FZTS Excavators
Operating weight with cab
2750 kg
Engine power
15.2 kW (20.4 hp) @ 2,500 rpm
Operating weight with canopy
2680 kg
Specifications
| Operating weight with cab | 2750 kg |
|---|---|
| Engine power | 15.2 kW (20.4 hp) @ 2,500 rpm |
| Travel speed(High) | 4.5 km/h |
| Arm breakout force | 12 kN |
| Shipping length | 4160 mm |
| Shipping height | 2450 mm |
| Boom | 2080 mm |
| Digging reach | 4757 mm |
| Digging depth | 2857 mm |
| Cutting height | 4365 mm |
| Minimum front swing radius | 1965 mm |
| Emission | EU Stage V / Tier 4f |
| System pressure | 21.6 MPa |
| Operating weight with canopy | 2680 kg |
| Std. Bucket capacity | 0.08 m³ |
| Maximum swing speed | 9.5 rpm |
| Bucket breakout force | 20 kN |
| Shipping width | 1550 mm |
| Track shoe width (std) | 300 mm |
| Arm | 1300 mm |
| Digging reach on ground | 4648mm |
| Vertical wall digging depth | 2312 mm |
| Dumping height | 3067 mm |
| Model | Yanmar 3TNV80F-SNLY |
| System maximum flow | 86 L/min ( 22.7 gal/min) |
Key Features
- Operating weight 2750 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 15.2 kW (20.4 hp) @ 2,500 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.08 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 9027FZTS is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
Get a Quote for 9027FZTS Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
