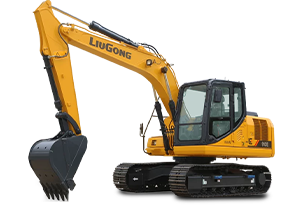

913E Excavator
The LiuGong 913E crawler excavator offers operating weight of 13500 kg; std. bucket capacity of 0.55 m3; engine power of 74 kW (99 hp / 101 ps) @ 2,200 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
913E Excavators
Operating weight
13500 kg
Std. Bucket capacity
0.55 m3
Engine power
74 kW (99 hp / 101 ps) @ 2,200 rpm
Specifications
| Operating weight | 13500 kg |
|---|---|
| Std. Bucket capacity | 0.55 m3 |
| Travel speed(Low) | 3.2 km/h |
| Arm breakout force | 64.9 kN |
| Shipping length | 7750 mm |
| Shipping height | 2930 mm |
| Boom | 4600 mm |
| Digging reach | 8300 mm |
| Digging depth | 5470 mm |
| Cutting height | 8760 mm |
| Minimum front swing radius | 2470 mm |
| System pressure | 34.3 MPa |
| Engine power | 74 kW (99 hp / 101 ps) @ 2,200 rpm |
| Travel speed(High) | 5 km/h |
| Maximum swing speed | 12 rpm |
| Bucket breakout force | 89.8 kN |
| Shipping width | 2490 mm |
| Track shoe width (std) | 500 mm |
| Arm | 2500 mm |
| Digging reach on ground | 8170 mm |
| Vertical wall digging depth | 4770 mm |
| Dumping height | 6310 mm |

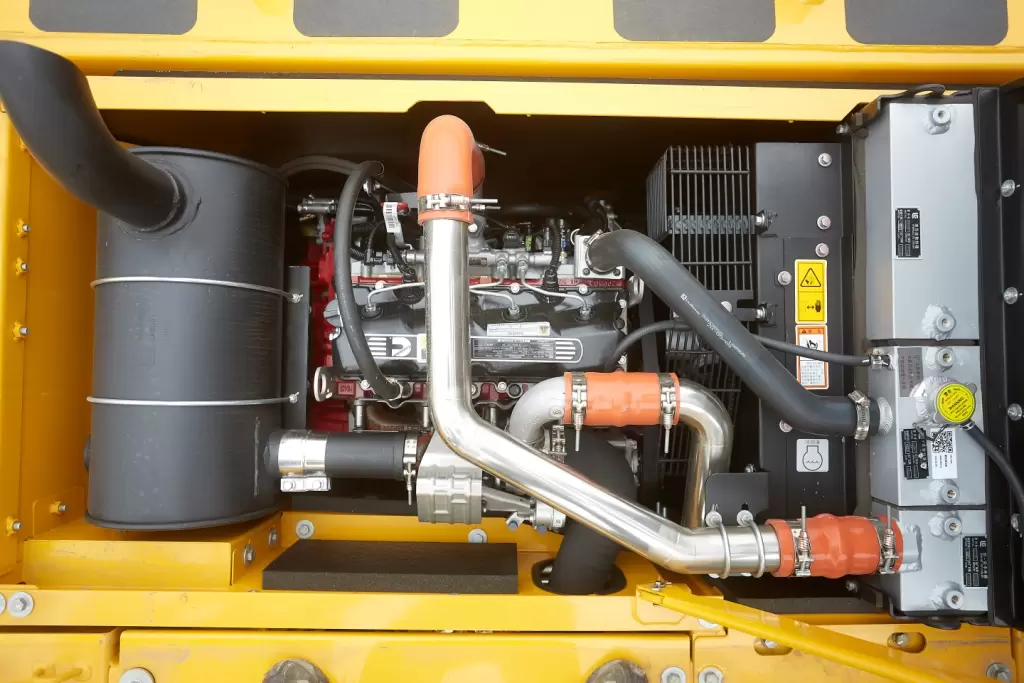

| Model | Cummins QSF 3.8 |
| System maximum flow | 2x120 L/min (2x32 gal/min) |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 13500 kgMainstream class — building foundations, roadworks and general earthmoving.
- Engine power 74 kW (99 hp / 101 ps) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.55 m3Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications

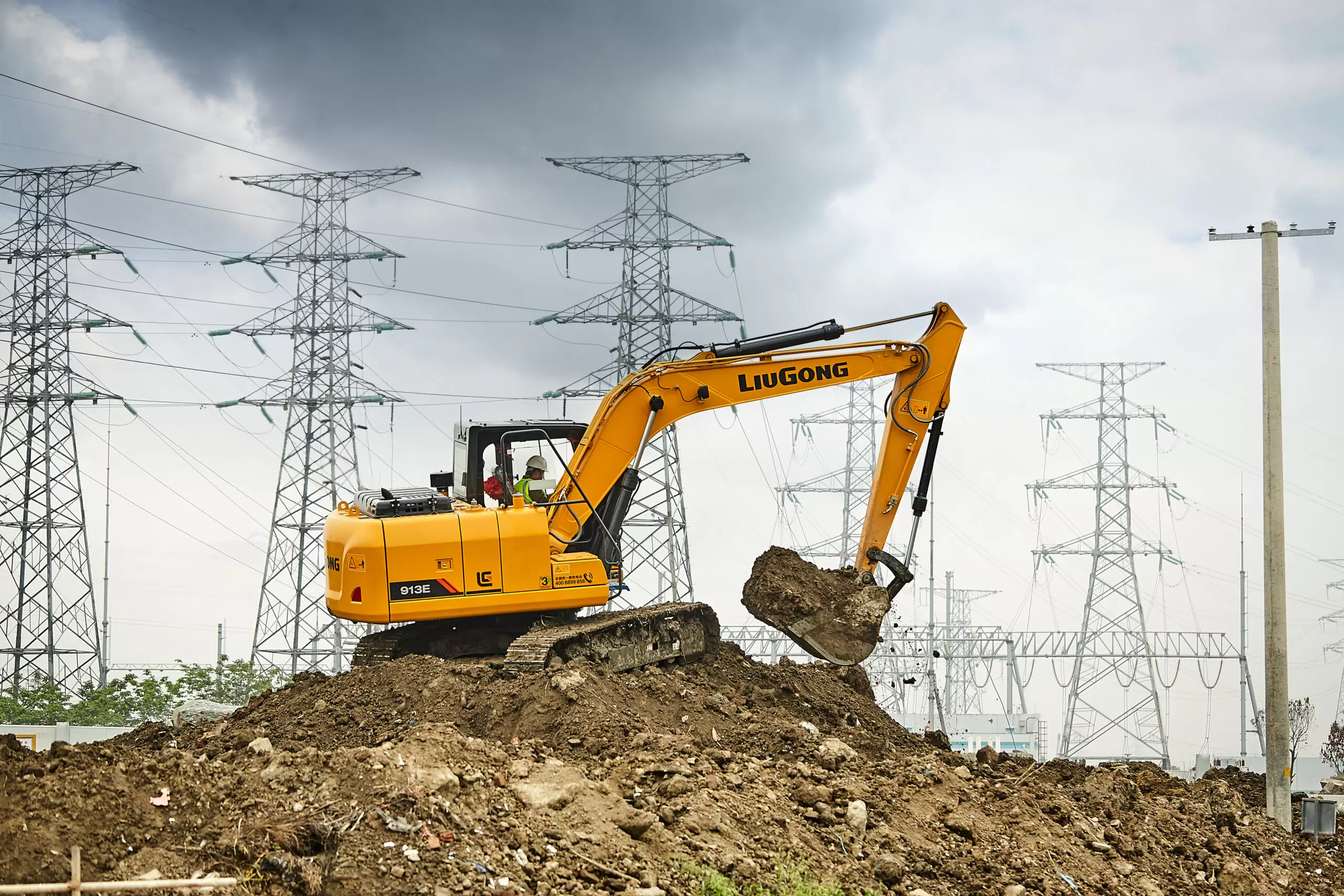

The 913E is suited to Building foundations, roadworks, drainage and general earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 913E Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
