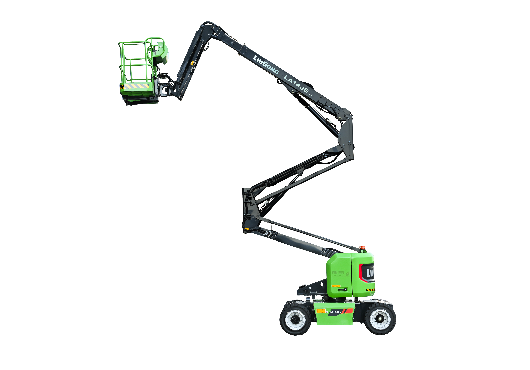

LA14JE Aerial Work Platform
The LiuGong LA14JE aerial work platforms delivers max.working height of 15.7 m; max.operating range of 8.26 m; platform load of 230 kg. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LA14JE Aerial Work Platforms
Max.Working Height
15.7 m
Max.Operating Range
8.26 m
Platform Load
230 kg
Key Features
- Safe And ReliabilityWorking platform overload protection, 230kg unlimited , High precision working platform weighing sensor, continuous monitoring of platform load, Imported hydraulic and electraical compenents,work more reliable.
- Efficient And ComfortableElectro-hydraulic proportional control technology, smooth and comfortable work, Combination leveling mechanism, work more stable , Integrated swivel mechansim, swivel more smoothly, AC walking drive control system, strong power, drive more effificient.
- Compact StructureZero swing tail, suitable for small space operation, Combined boom structure, strong ability of obstacle crossing.
- Maintenance is ConvenientSelf-lubricating bearing, Real-time monitoring and transmission of vehicle information, Screw out battery box, Working condition information recording, History fault record query
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Max.Working Height | 16 m | 52.49 ft. |
| Max.Platform Height | 14 m | 45.93 ft. |
| Max.Operating Range | 8.35 m | 27.40 ft. |
| Overall Length(Stowed) | 6.36 m | 20.87 ft. |
| Overall Width(Stowed) | 1.85 m | 6.07 ft. |
| Overall Height(Stowed) | 2 m | 6.56 ft. |
| Overall Length(Transport) | 6.36 m | 20.87 ft. |
| Overall Width(Transport) | 1.85 m | 6.07 ft. |
| Overall Height(Transport) | 2 m | 6.56 ft. |
| Turntable Tailswing(Raised) | 0 m | 0.00 ft. |
| Platform Size(L×W×H) | 1.83×0.76×1.1 m | 6x2.6x3.7 ft. |
| Tyres | 250-15/7.0（Solid off-road tyre） | 250-15/7.0（Solid off-road tyre） |
| Platform Load(Unrestricted/Restricted) | 260 kg | 573.20 lbs |
| Gradeability | 30 % | 30 % |
| Max.Working Slope | X-5°/Y-5° | X-5°/Y-5° |
| Turret Rotation | 360°(Discrete) | 360°(Discrete) |
| Drive Steering Type | 4WD×2WS | 4WD×2WS |
| Battery(Lithium) | 51.2V/304Ah | 51.2V/304Ah |
| Charger | 48V/60A | 48V/60A |
| Hydraulic Oil Tank | 40 L | 2440.95 in³ |
| Overall Weight | 6980 kg | 15388.27 lbs |
Applications
The LA14JE is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
