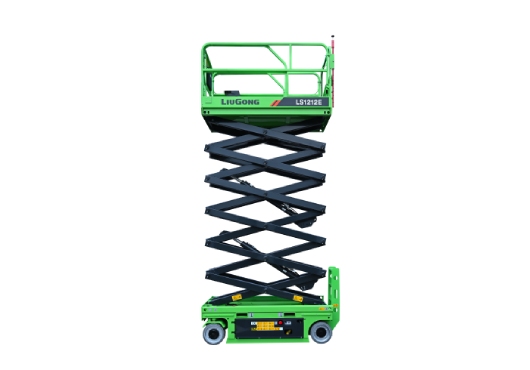

LS1212E Aerial Work Platform
The LiuGong LS1212E aerial work platforms delivers max.working height of 14 m; rated load on working platform of 320 kg; overall length/width of 2.49*1.19m. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LS1212E Aerial Work Platforms
Max.Working Height
14 m
Rated Load on Working Platform
320 kg
Overall Length/Width
2.49*1.19m
Key Features
- Secure and ReliableComplied with GB/CE/ANSI and other standards, The main structural components are welded and electrophoretic automatically, which are rust resistant and durable, Standard height limit anti-collision rods for safer operation.
- Intelligent and EfficientAutomatic display of fault codes for quick troubleshooting, -Proportional decrease control, smooth and flexible operation, Large ground clearance, maximum gradeability 25%, Intelligent interconnection, real-time monitoring of working condition data.
- Better Total Cost of OwnershipThe generalization rate of parts and accessories reaches 95%, and few categories of spare parts need to reserve, Maintenance-free AC motors, Low power alarm and other machine control systems+lithium battery management system (BMS), improving the life of battery.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Max.Work Height | 14 m | 45.93ft. |
| Max.Platform Height | 12 m | 39.37ft. |
| Min.Platform Height | 2.28 m | 7.48ft. |
| Platform Size(L×W) | 2.28 x 1.15m | 7.48 x 3.77ft. |
| Overall Length | 2.49 m | 8.17ft. |
| Overall Width | 1.19 m | 3.90ft. |
| Overall Height (Rails Down) | 2.07 m | 6.79ft. |
| Max.Gradeability | 25 % | 25 % |
| Lift Motor | 24VAC/3.3kW | 24VAC/3.3kW |
| Rated Load on Working Platform | 320 kg | 705 lb |
| Battery | 24V/225Ah | 24V/225Ah |
| Charger | 24V/30A | 24V/30A |
| Total Weight | 3040kg | 6702lb |
Applications
The LS1212E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
