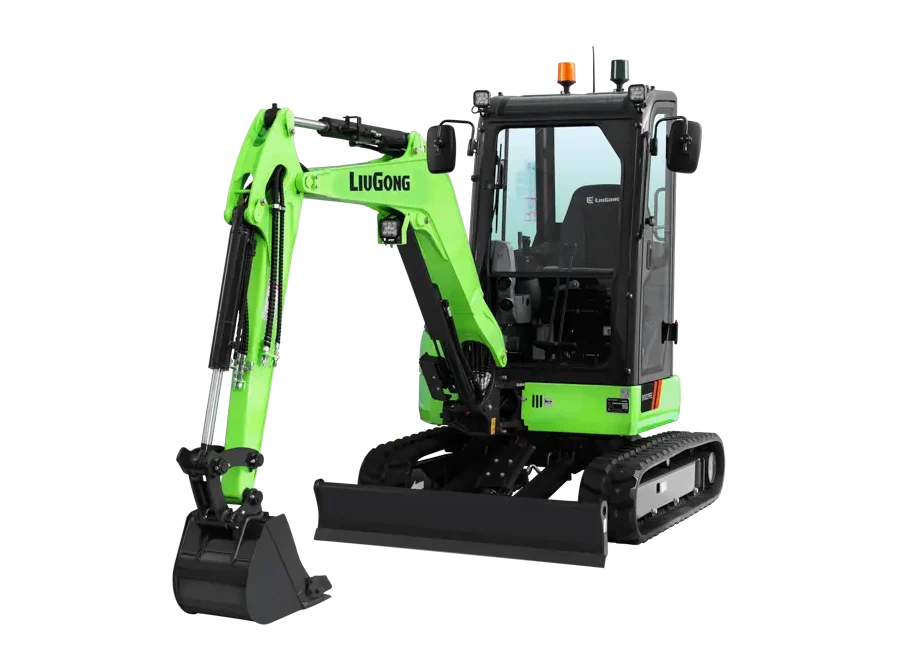

9027FE Excavator
The LiuGong 9027FE crawler excavator offers operating weight of 2,750 kg; rated power of 16.5 kW; standard bucket capacity of 0.08 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9027FE Excavators
Operating Weight
2,750 kg
Rated Power
16.5 kW
Standard Bucket Capacity
0.08 m³
Specifications
| Operating Weight | 2,750 kg |
|---|---|
| Rated Power | 16.5 kW |
| Motor Type | SYR Redundant Synchronous Motor |
| Rated Storage Capacity | 20.6 kWh |
| Standard Bucket Capacity | 0.08 m³ |
| Travel Speed (High) | 4.2 km/h |
| Swing Speed | 9.5 rpm |
| Arm Digging Force | 12 kN |
| Bucket Digging Force | 20 kN |
| Drawbar Pull | 21.1 kN |
| Boom Length | 2,080 mm |
| Arm Length | 1,300 mm |
| Max. Digging Reach | 4,757 mm |
| Max. Digging Reach (Ground Level) | 4,648 mm |
| Max. Digging Depth (Vertical Wall) | 2,312 mm |
| Max. Digging Height | 4,365 mm |
| Max. Dumping Height | 3,067 mm |
| Track Shoe Width (Std) | 300 mm |
| Shipping Dimension L*W*H | 4160*1550*1550 mm |
Key Features
- Operating weight 2,750 kgCompact class — fits tight urban, municipal and confined jobsites.
- Bucket capacity 0.08 m³Sized for efficient loading cycles and production targets.
- Digging depth 2,312 mmReach and depth suited to trenching and foundation work.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 9027FE is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
