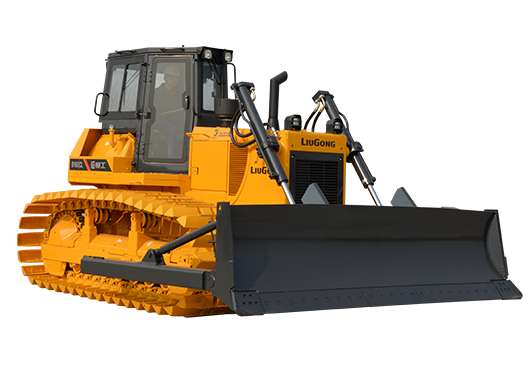

B160CL Track Dozer
The LiuGong B160CL dozers delivers operating weight of 18,900 kg; engine power of 131 kW; blade capacity of 3.4 m³. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
B160CL Dozers
Operating weight
18,900 kg
Engine power
131 kW
Blade capacity
3.4 m³
Key Features
- The whole machine features advanced performance, effective matching of the power transmission system, and high working efficiency
- With the fuel tank positioned on the left side of the machine body, the ultra-large rear space makes the care and maintenance of steering and brake systems easy.
- The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood. This prevents damage of the transmission system due to the frame being deformed by torsion force, while promoting the performance and reliability of the whole machine.
Specifications
| Machine Weight | 18,900 kg |
|---|---|
| Rated Power | 131 kW |
| Blade Capacity | 3.4 m³ |
| Blade Lift Height | 1,005 mm |
| Blade Digging Depth | 485 mm |
| Ground Pressure | 25.5 kPa |
| Engine Displacement | 9.726 L |
| Track Shoe Width | 1,100 mm |
| Number of Rollers (Per Side) | 7 |
| Number of Idlers (Per Side) | 2 |
| Number of Track Shoes (Per Side) | 42 |
| Maximum Travel Speed, fwd | 9.72 km/h |
| Maximum Travel Speed, rev | 12.64 km/h |
Applications
The B160CL is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for B160CL Track Dozer
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
