975E Excavator

Name: 975E Excavator
Brand: LiuGong

The LiuGong 975E crawler excavator offers operating weight of 75,000 kg; engine power of 391 kW (524 hp) @ 2,100 rpm; bucket capacity of 4.6–5.6 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.

Specifications Key Features Applications Get a Quote

975E Excavators

Operating Weight

75,000 kg

Engine Power

391 kW (524 hp) @ 2,100 rpm

Bucket Capacity

4.6–5.6 m³

Specifications

Operating Weight	75,000 kg
Engine Power	391 kW (524 hp) @ 2,100 rpm
Bucket Capacity	4.6–5.6 m³
Travel Speed (High)	4.7 km/h
Swing Speed	6.8 rpm
Arm Digging Force	372 kN
Drawbar Pull	490 kN
Bucket Digging Force (Power Boost)	425 kN
Transport Width	4,260 mm
Transport Height	4,710 mm
Arm Length	6,600 mm
Reach	2,900 mm
Digging Reach	11,450 mm
Digging Depth	11,170 mm
Max Cutting Height	7,030 mm
Max Dump Height	10,950 mm
Min Turning Radius	7,030 mm
Engine Model	Cummins X15
Emission Standard	Tier 3 / Stage IIIA
Max Hydraulic Flow	2 × 450 L/min
Hydraulic Pressure	34.3 MPa

Key Features

Operating weight 75,000 kg
Heavy class — excavation, quarry and large-scale earthmoving duty.
Engine power 391 kW (524 hp) @ 2,100 rpm
Power matched to daily production and fuel-efficient operation.
Bucket capacity 4.6–5.6 m³
Sized for efficient loading cycles and production targets.
ROPS/FOPS cab
Operator protection and comfort on every shift.
Advanced hydraulics
Smooth, precise control for demanding work cycles.
Factory-direct support
Global parts, warranty and after-sales network from the manufacturer.

Applications

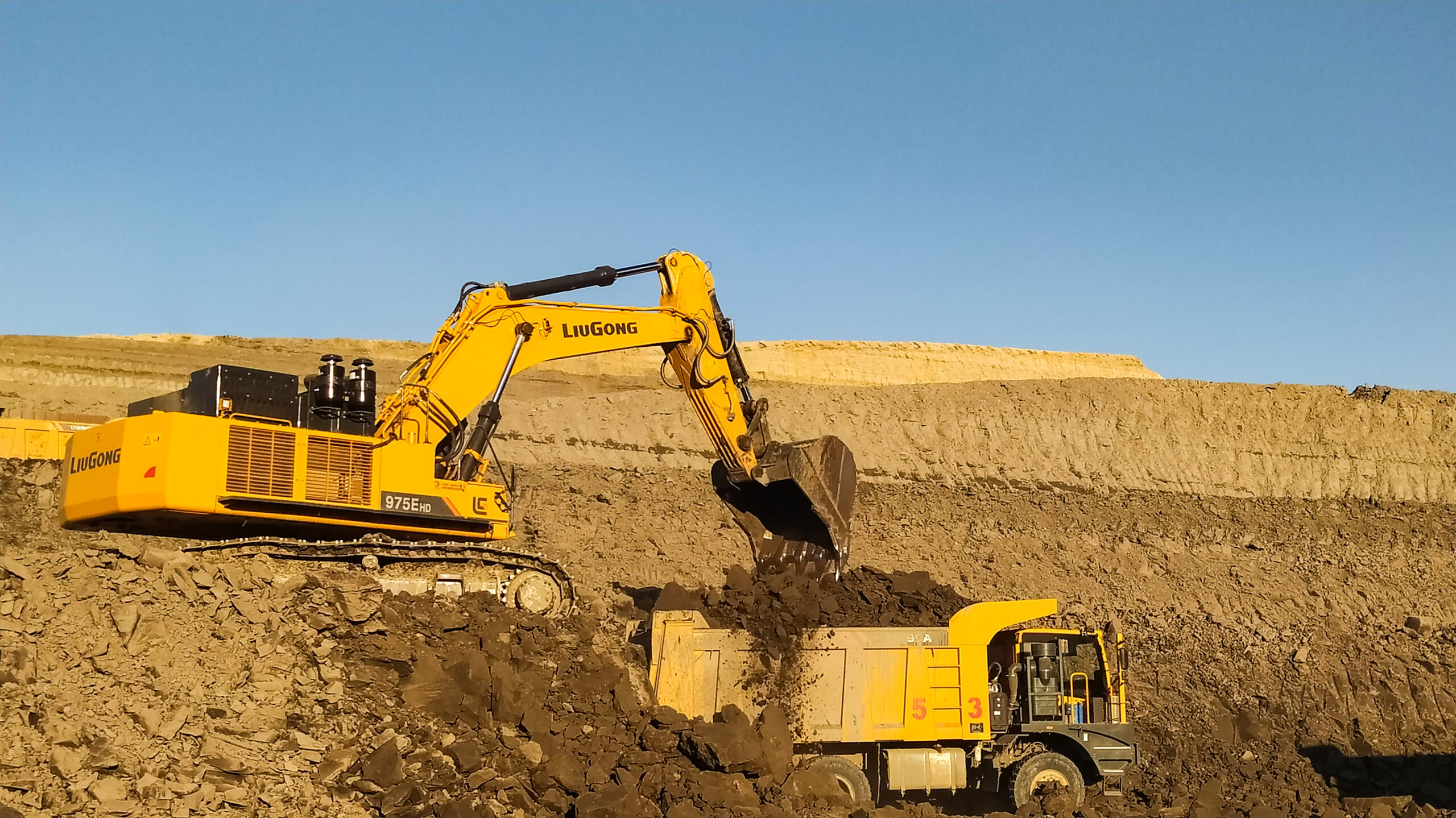

The 975E is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
