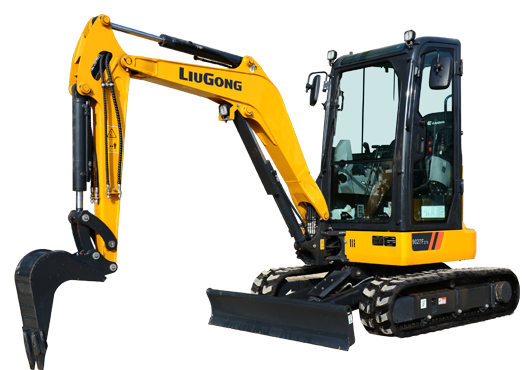

9035FZTS Excavator
The LiuGong 9035FZTS crawler excavator offers operating weight with cab of 3540 kg; engine power of 18.2 kW (24.4 hp) @ 2200 rpm; operating weight with canopy of 3800 kg. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9035FZTS Excavators
Operating weight with cab
3540 kg
Engine power
18.2 kW (24.4 hp) @ 2200 rpm
Operating weight with canopy
3800 kg
Specifications
| Operating weight with cab | 3540 kg |
|---|---|
| Engine power | 18.2 kW (24.4 hp) @ 2200 rpm |
| Travel speed(High) | 4.2 km/h |
| Maximum swing speed | 10 rpm |
| Bucket breakout force | 30 kN |
| Shipping width | 1700 mm |
| Track shoe width (std) | 300 mm |
| Arm | 1320 mm |
| Digging reach on ground | 5270 mm |
| Vertical wall digging depth | 2503 mm |
| Dumping height | 3310 mm |
| Dozer-up | 370 mm |
| Swing boom left rotation | 70° |
| Model | Yanmar 3TNV88F-ESLY |
| System maximum flow | 99 L/min ( 26.2 gal/min) |
| Operating weight with canopy | 3800 kg |
| Std. Bucket capacity | 0.11 m3 |
| Travel speed(Low) | 2.5 km/h |
| Arm breakout force | 20 kN |
| Shipping length | 4810 mm |
| Shipping height | 2500/2581 mm (cab/canopy) |
| Boom | 2450 mm |
| Digging reach | 5385 mm |
| Digging depth | 3085 mm |
| Cutting height | 4710 mm |
| Minimum front swing radius | 2416 mm |
| Dozer-down | 390 mm |
| Swing boom right rotation | 50° |
| Emission | Tier 4 F / Stage V |
| System pressure | 25.3 MPa |
Key Features
- Operating weight 3540 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 18.2 kW (24.4 hp) @ 2200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.11 m3Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 9035FZTS is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
