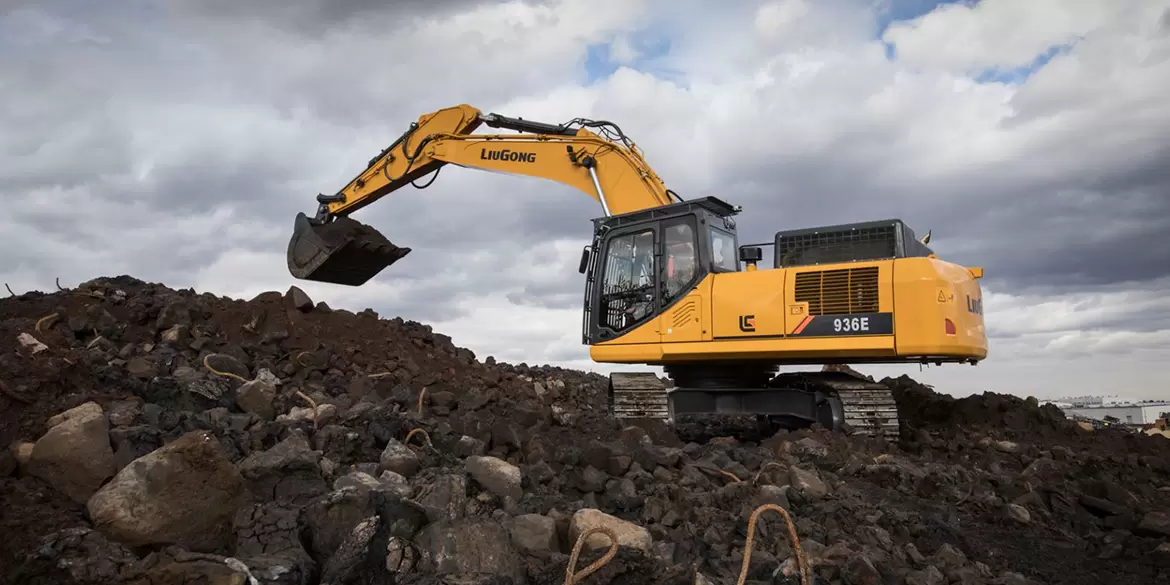

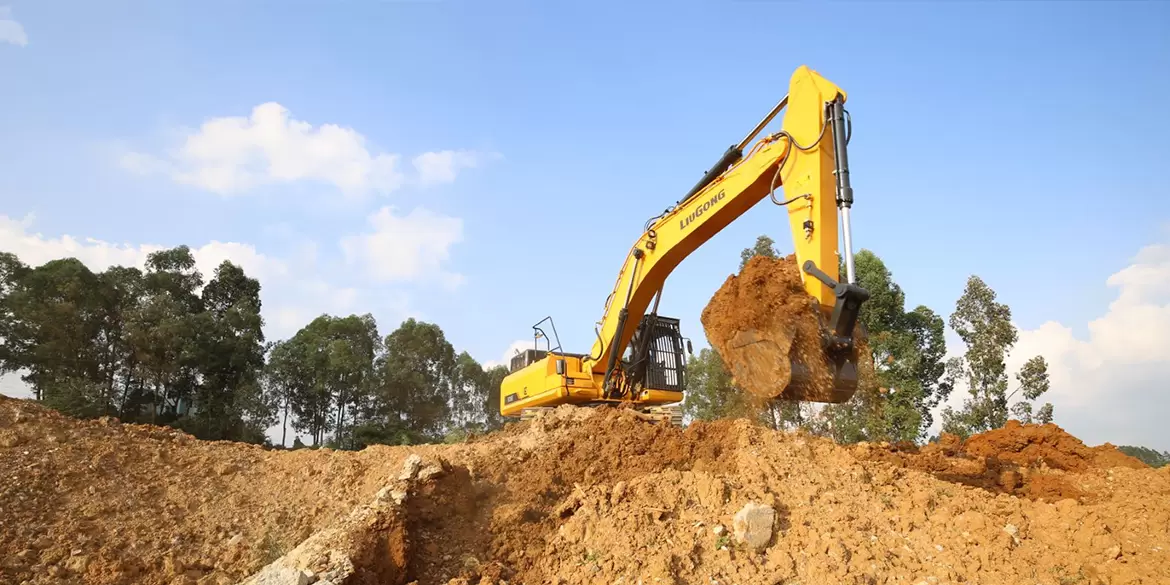

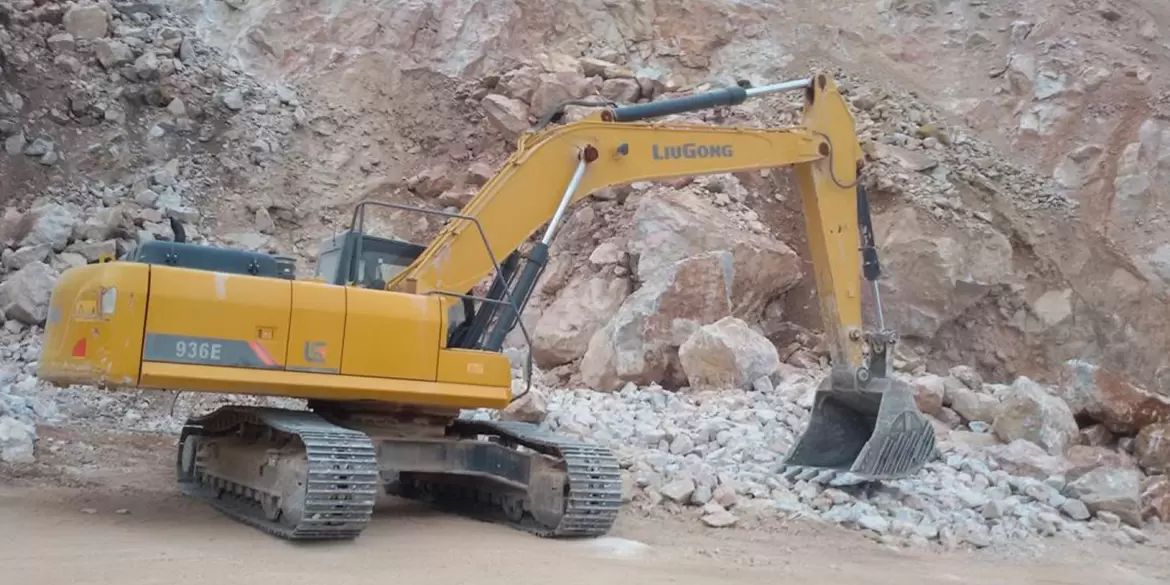

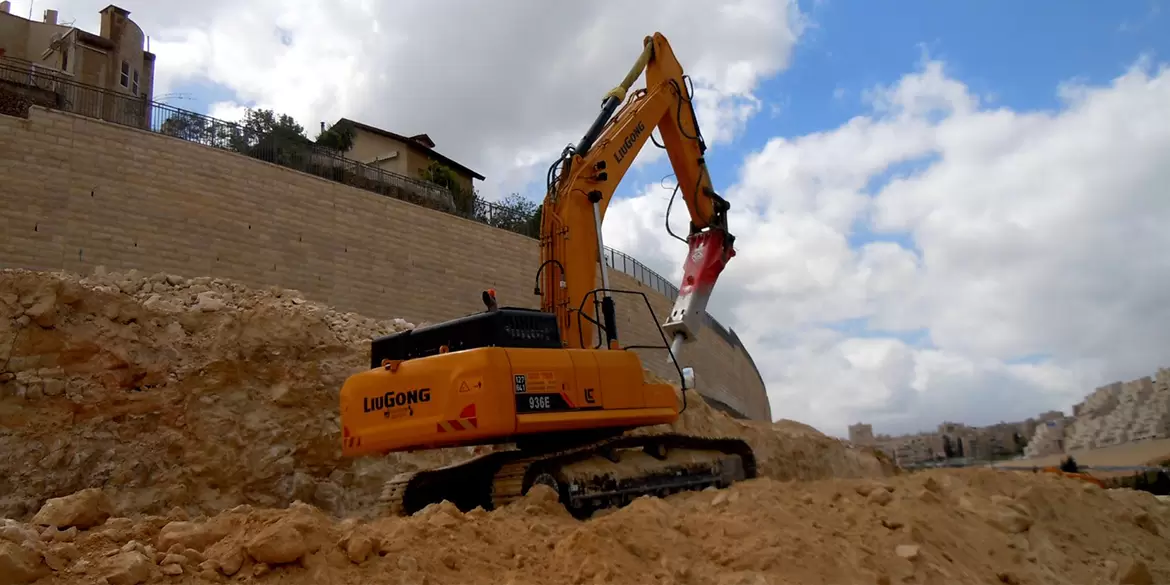

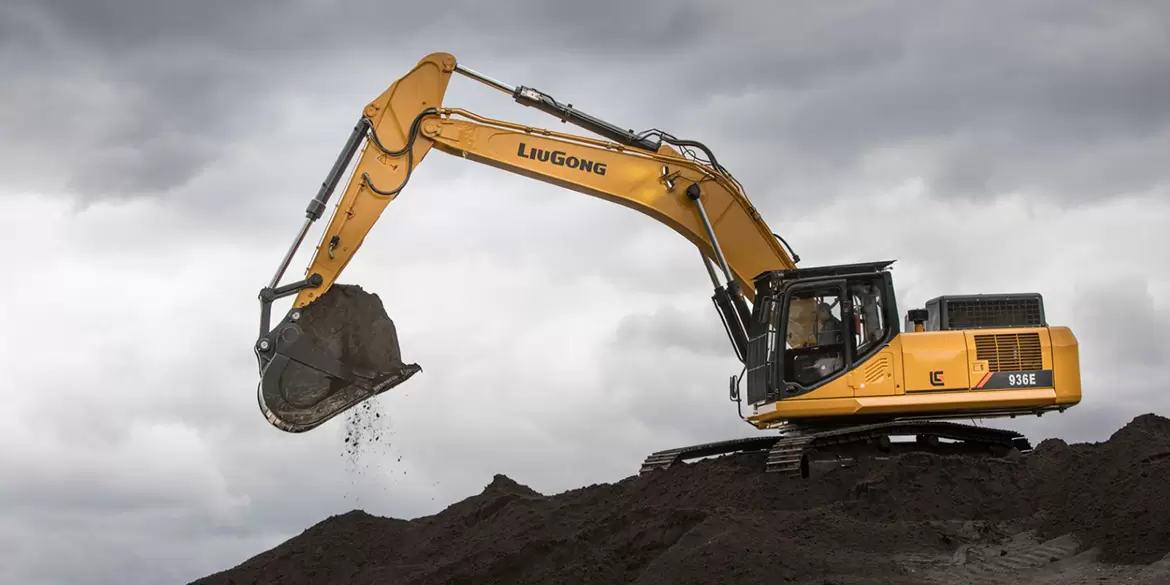

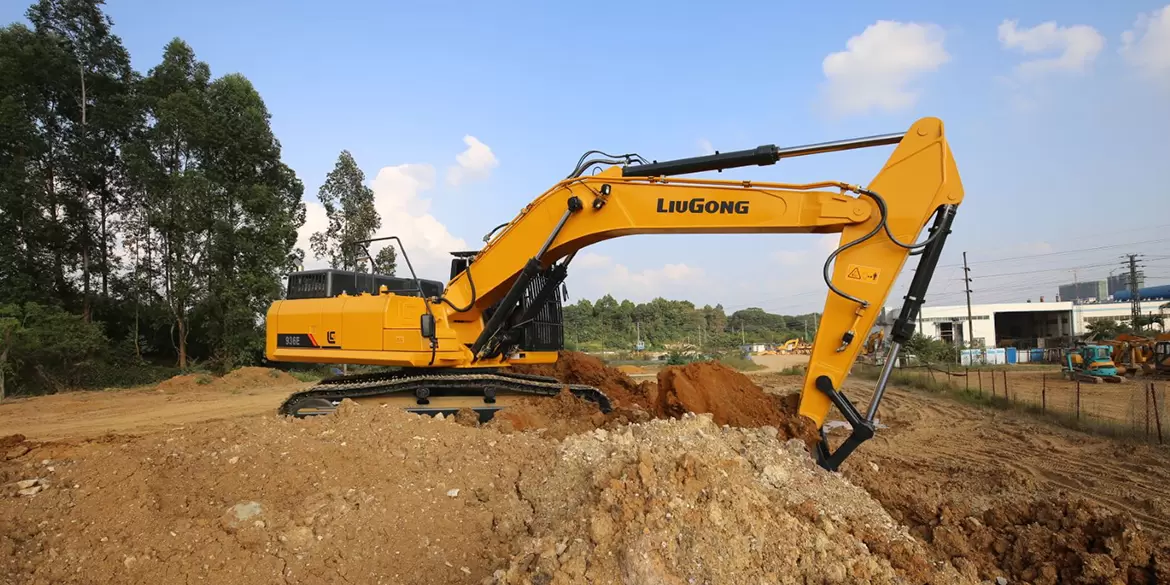

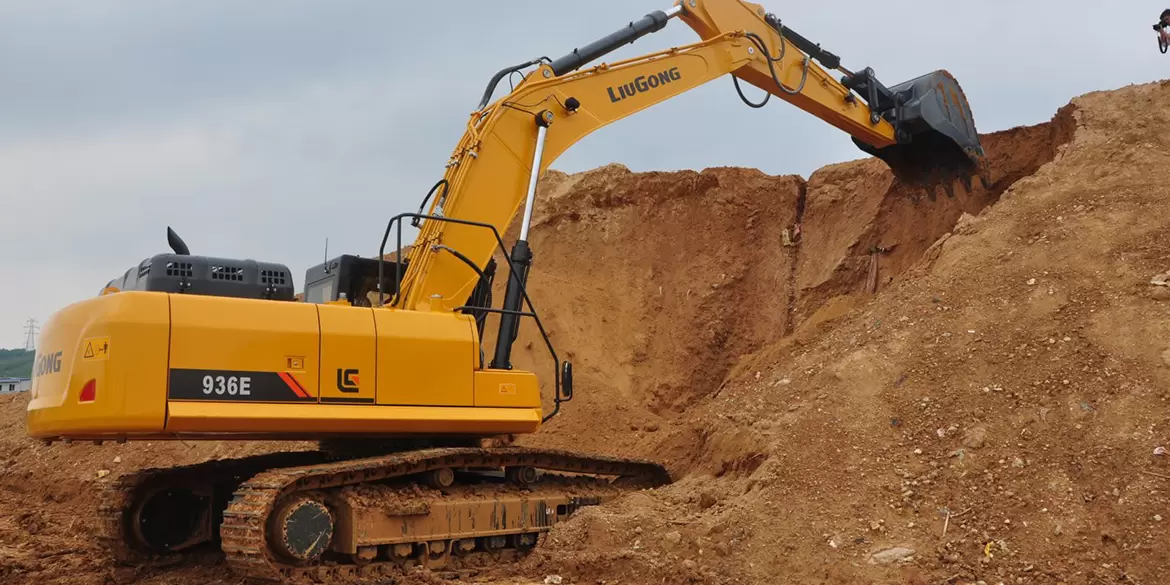

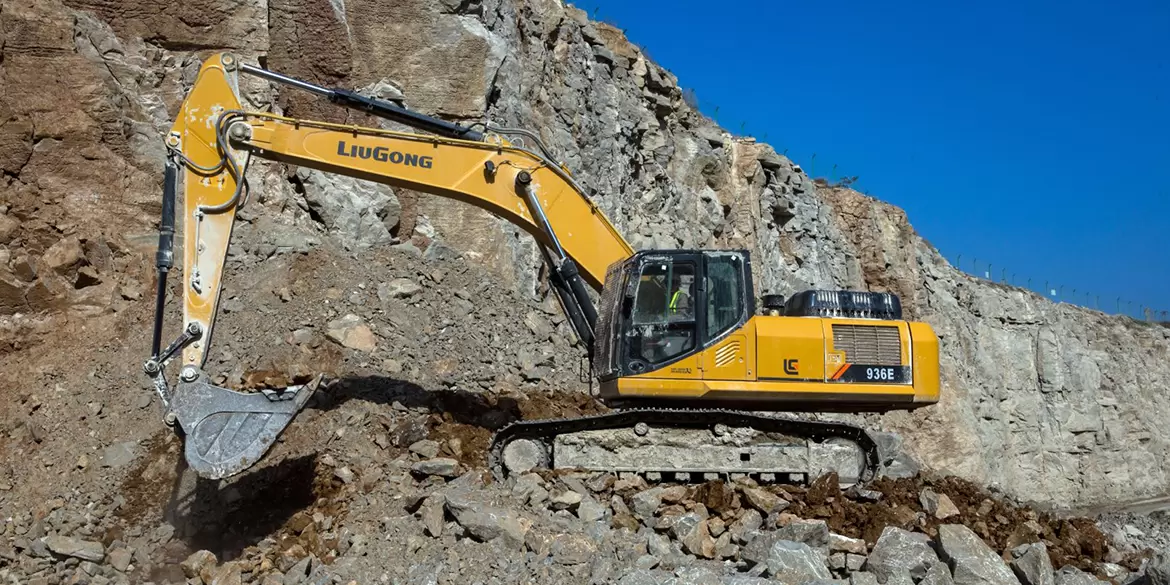

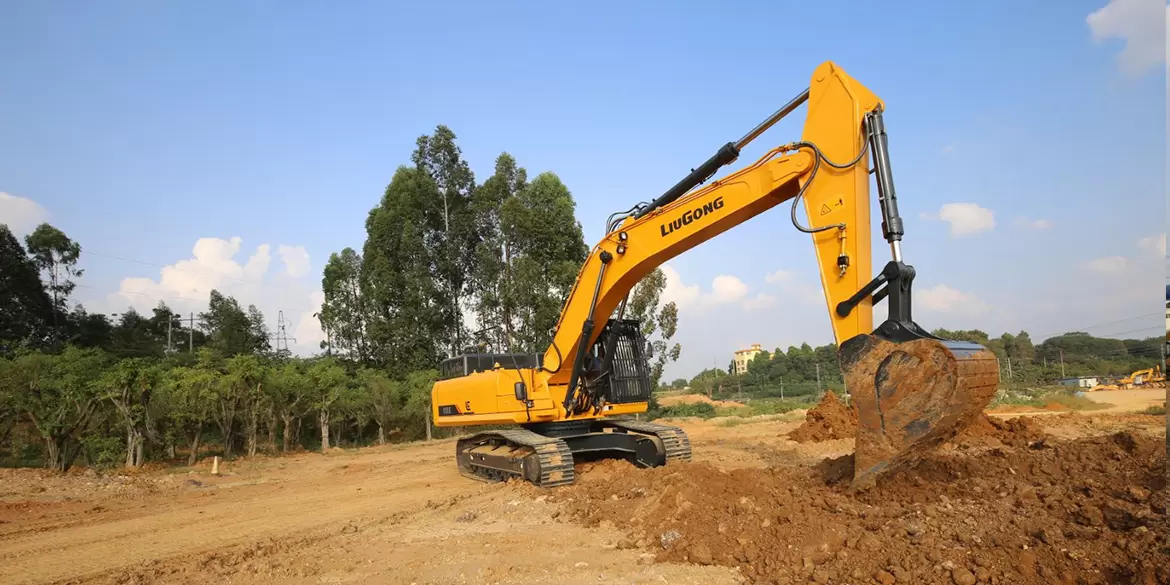

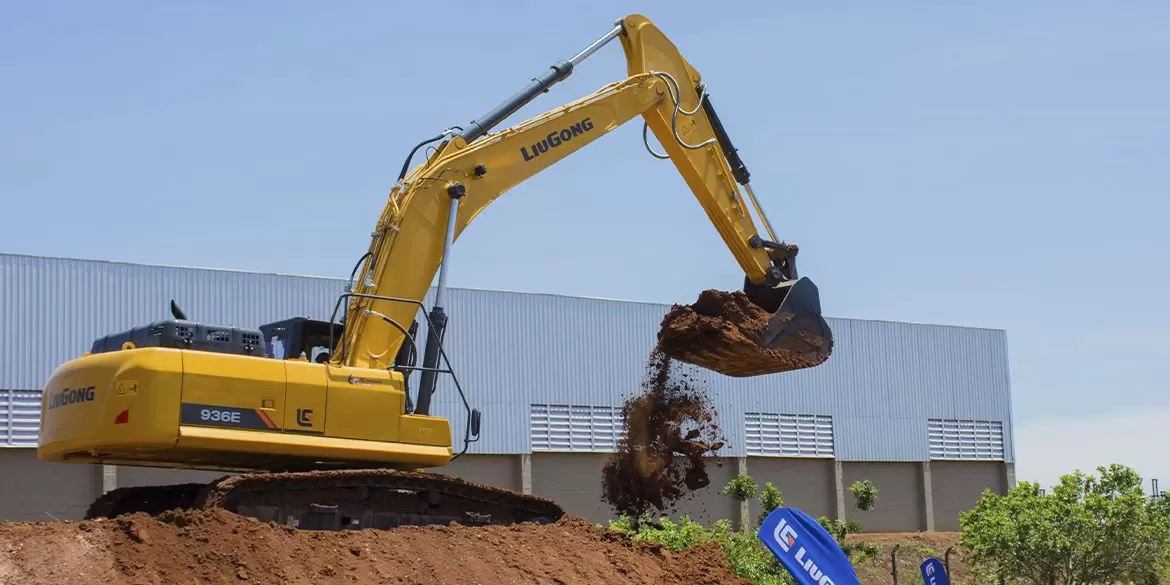

936E Excavator
The LiuGong 936E crawler excavator offers operating weight of 35,000-37,000 kg; std. bucket capacity of 1.6 m³; engine power of 241 kW (323 hp) @ 2000 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
936E Excavators
Operating weight
35,000-37,000 kg
Std. Bucket capacity
1.6 m³
Engine power
241 kW (323 hp) @ 2000 rpm
Specifications
| Operating weight | 35,000-37,000 kg |
|---|---|
| Std. Bucket capacity | 1.6 m³ |
| Maximum travel speed (Low) | 3.4 km/h |
| Arm breakout force | 170 kN |
| Bucket breakout force | 232 kN |
| Shipping length | 11167 mm |
| Shipping height | 3530 mm |
| Boom | 6400 mm |
| Digging reach | 11100 mm |
| Digging depth | 7340 mm |
| Cutting height | 10240 mm |
| Minimum front swing radius | 4465 mm |
| System pressure | 34.3 MPa |
| Engine power | 241 kW (323 hp) @ 2000 rpm |
| Travel speed(High) | 5.5 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force Power boost | 185 kN |
| Bucket breakout force Power boost | 252 kN |
| Shipping width | 3190 mm |
| Track shoe width (std) | 600 mm |
| Arm | 3200 mm |
| Digging reach on ground | 10900 mm |
| Vertical wall digging depth | 6460 mm |
| Dumping height | 7160 mm |
| Model | Cummins 6LTAA8.9-C325 |
| System maximum flow | 2×300 L/min (2x79 gal/min) |
| ※For reference only. | 936E－Stage IIIA |
| Operating weight | 35000 kg |
| Std. Bucket capacity | 1.6 m³ |
| Maximum travel speed (Low) | 3.4 km/h |
| Arm breakout force | 170 kN |
| Bucket breakout force | 232 kN |
| Shipping length | 11167 mm |
| Shipping height | 3530 mm |
| Boom | 6400 mm |
| Digging reach | 11100 mm |
| Digging depth | 7340 mm |
| Cutting height | 10240 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 35,000-37,000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 241 kW (323 hp) @ 2000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.6 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 936E is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 936E Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
