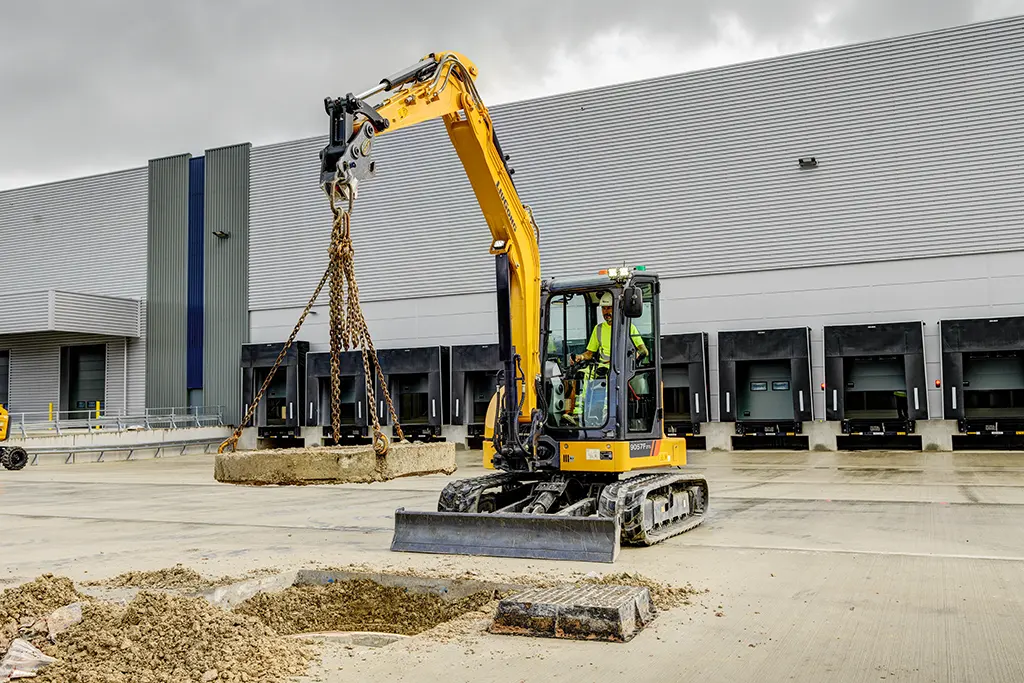

9057FZTS Excavator

Name: 9057FZTS Excavator
Brand: LiuGong

The LiuGong 9057FZTS crawler excavator offers operating weight of 5,570 kg; stadard bucket capacity of 0.16 m³; rated power of 35.5 kw@2,200 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.

Specifications Key Features Applications Get a Quote

9057FZTS Excavators

Operating Weight

5,570 kg

Stadard Bucket Capacity

0.16 m³

Rated Power

35.5 kw@2,200 rpm

Specifications

Operating Weight	5,570 kg
Stadard Bucket Capacity	0.16 m³
Travel Speed (Hight/Low)	4.2/2.4 km/h
Bucket Digging Force(ISO)	44 kN
Shipping Length	5,650 mm
Shipping Height	2,550 mm
Max. Digging Reach	6,105 mm
Max. Digging Depth	3,630 mm
Max. Cutting Height	5,571 mm
Min. Front Swing Radius	2,558 mm
Emission Regulation	Stage V/ Tier 4F
Relief Pressure, main	27.4 MPa
Rated Power	35.5 kw@2,200 rpm
Bucket Capacity	0.06-0.26 m³
Swing Speed	9.6 r/min
Arm Digging Force(ISO)	27 kN
Shipping Width	1,960 mm
Shoe Width	400 mm
Max. Digging Reach on Ground	6,040 mm
Max. Vertical Wall Digging Depth	2,800 mm
Max. Dumping Height	4,000 mm
Engine	Yanmar 4TNV86CT-PLY
Main Pumps Total Flow	149.6 L/min

Key Features

Operating weight 5,570 kg
Compact class — fits tight urban, municipal and confined jobsites.
Bucket capacity 0.16 m³
Sized for efficient loading cycles and production targets.
Digging depth 3,630 mm
Reach and depth suited to trenching and foundation work.
ROPS/FOPS cab
Operator protection and comfort on every shift.
Advanced hydraulics
Smooth, precise control for demanding work cycles.
Factory-direct support
Global parts, warranty and after-sales network from the manufacturer.

Applications

The 9057FZTS is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
