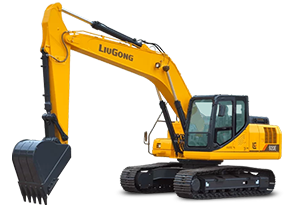

920E Excavator
The LiuGong 920E crawler excavator offers operating weight (with cab) of 21,500 kg; bucket capacity of 0.9 / 0.95 / 1.0 / 1.2 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
920E Excavators
Operating Weight (with cab)
21,500 kg
Engine Power
112 kW (150 hp) @ 1,950 rpm / 124 kW (166 hp) @ 2,050 rpm
Bucket Capacity
0.9 / 0.95 / 1.0 / 1.2 m³
Specifications
| Operating Weight (with cab) | 21,500 kg |
|---|---|
| Engine Power | 112 kW (150 hp) @ 1,950 rpm / 124 kW (166 hp) @ 2,050 rpm |
| Bucket Capacity | 0.9 / 0.95 / 1.0 / 1.2 m³ |
| Travel Speed (High) | 5.3 / 5.7 / 4.9 km/h |
| Travel Speed (Low) | 3.0 / 3.3 / 2.9 km/h |
| Swing Speed | 12.5 rpm |
| Arm Digging Force | 97 kN |
| Arm Digging Force (Power Boost) | 105 kN |
| Bucket Digging Force | 140 kN |
| Bucket Digging Force (Power Boost) | 152.5 kN |
| Transport Length | 9,540 mm |
| Transport Width | 2,800 mm |
| Transport Height | 3,140 mm |
| Track Shoe Width (Std) | 600 mm |
| Boom Length | 5,710 mm |
| Arm Length | 2,915 mm |
| Digging Reach | 9,870 mm |
| Digging Reach (Ground) | 9,685 mm |
| Digging Depth | 6,562 mm |
| Vertical Wall Dig Depth | 5,080 mm |
| Max Excavation Height | 9,945 mm |
| Max Dump Height | 7,170 mm |
| Min Front Turning Radius | 3,090 mm |
| Engine Model | Cummins |
| Emission Standard | EPA Tier 2 |
| Main Pump Flow | 2 × 224 L/min |
| System Pressure | 34.3 MPa |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 21,500 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 112 kW (150 hp) @ 1,950 rpm / 124 kW (166 hp) @ 2,050 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.9 / 0.95 / 1.0 / 1.2 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 920E is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
