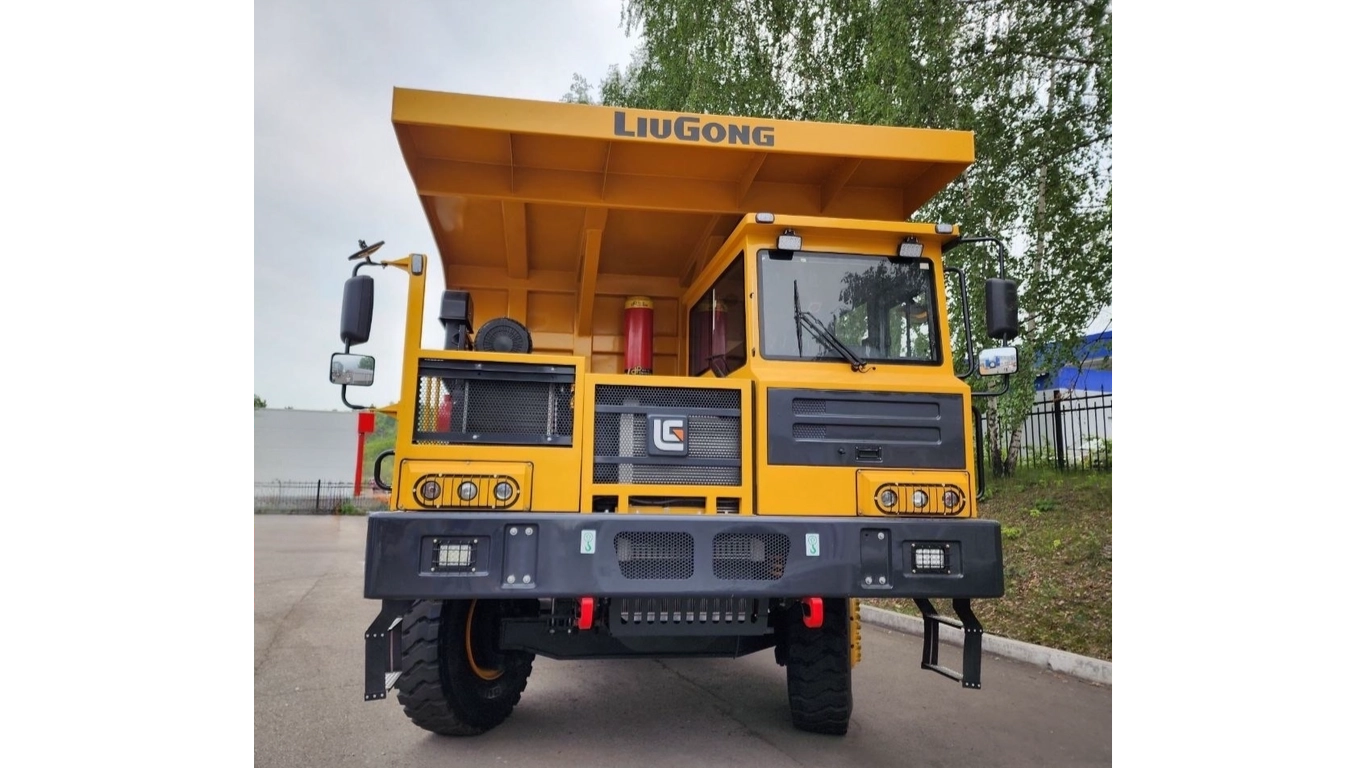

DW105A Mining Truck
The LiuGong DW105A mining truck offers operating weight of 35,000 kg; rated power of 442 kW (552.5 hp); rated payload of 70,000 kg. Heavy-duty off-road hauling for mining and quarry; rugged frame, high payload and low cost per ton with global parts support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
DW105A Mining Trucks
Operating Weight
35,000 kg
Rated Power
442 kW (552.5 hp)
Rated Payload
70,000 kg
Specifications
| Operating Weight | 35,000 kg |
|---|---|
| Rated Payload | 70,000 kg |
| Gross Vehicle Weight | 105,000 kg |
| Struck Capacity | 36 m³ |
| Heaped Capacity | 43 m³ |
| Engine Model | Yuchai YC6K560-GT30 |
| Emission Standard | Tier 3 / Stage III |
| Rated Power | 442 kW (552.5 hp) |
| Transmission Model | Allison 4800 RS |
| Max Travel Speed | 37 km/h |
| Dimensions (L×W×H) | 10,068 × 3,620 × 4,028 mm |
| Tires | 16.00 R25 |
Key Features
- Operating weight 35,000 kgClass-defining weight for application matching.
- Travel speed 37 km/hEfficient repositioning and cycle times on site.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The DW105A is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for DW105A Mining Truck
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
