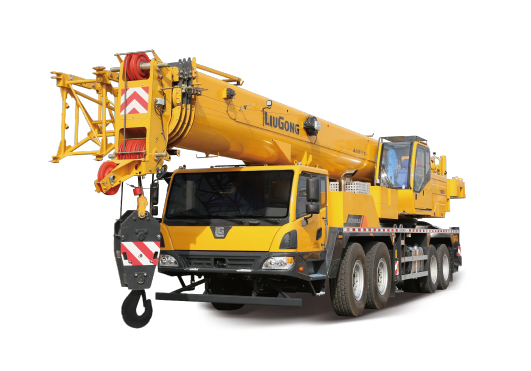

LTC1000L5 Truck Crane

LTC1000L5

Basic Boom Length

12.95 m

Max. Main Boom Length

50.5 m

Max. Rated Lifting Capacity

100 t

Maximum lifting moment of the basic boom
3563 KN.m, Maximum lifting moment of the fully extended boom: 2501 KN.m, Maximum lifting capacity of the fully extended boom: 17.7 t
Total counterweight
31.5 t, Outrigger span: 8.1 m &times, 6.54 m, Ensures safer and more stable operation
The cab has been fully upgraded, featuring a tilting cab design with standard front and side foot pedals; Equipped with a multi-channel air conditioning ventilation system and added upper cab defrosting function;
The upper structure adopts a dual-slewing design for precise slewing micro-motion control; Both sides of the slewing platform are equipped with ladders for easy access to the upper structure during operation and maintenance;
Standard configuration includes 35W × 7 rotation-resistant hoist ropes, preventing rope entanglement and ensuring safe, convenient operation.

Parameter	Metric	Imperial / U.S.
Basic boom	12700 mm	41.67 ft.
Max. main boom	49500 mm	162.40 ft.
Maximum lifting capacity	100000 kg	220462.26 lbs
Gross weight	50000 kg	110231.13 lbs
Engine model	L9NS6B400	L9NS6B400
Rated engine power	294 kW	399.72 ps
Rated engine torque	1800 N·m	1800 N·m
Max. travel speed	85 km/h	52.82 mph
Min. turning diameter	24 m	78.74 ft.
Approach angle	19 °/10 °	19 °/10 °
Departure angle	12 °	12 °
Gradeability	47 %	47 %
Outrigger span(Transverse)	8.1m	8.1m
Outrigger span(Longitudinal)	6.54 m	21.46 ft.
Counterweight(Standard)	22500 kg	49604.01 lbs
