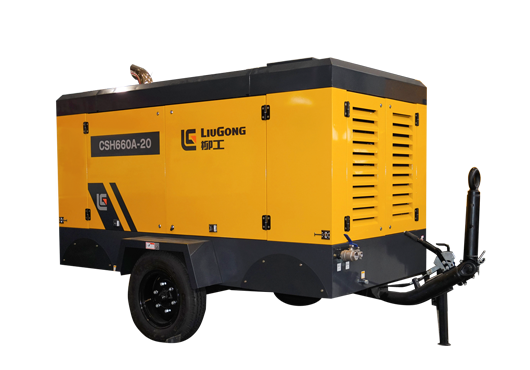

CSH660A Air Compressor
The LiuGong CSH660A air compressors delivers free air delivery of 18 m³/min; pressure of 20 bar; dual transformation of Single. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
CSH660A Air Compressors
Free air delivery
18 m³/min
Pressure
20 bar
Dual transformation
Single
Key Features
- LiuGong 's E-Kon control system is easy to understand and operate. The innovative system can also be accessed and operated remotely. Stop and Start through one key,compressor controls and parameters can all be remotely accessible for higher productivity and lower downtime.
- For extra protection it use a double air filter to extend engine and air end 's working life.
- For enhanced reliability, the holistic design approach to the fuel injection pump and air end eliminates any potential jamming while working at high speed.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Free air delivery | 18 m³/min | 18 m³/min |
| Pressure | 20 bar | 20 bar |
| Compressor oil | 35 L | 2135.83 in³ |
| Element | LGIR | LGIR |
| Dual transformation | Single | Single |
| Engine supplier | Yuchai | Yuchai |
| Engine type | YC6A260-H300 | YC6A260-H300 |
| Power | 191 kW | 259.68 ps |
| Working and Idling speed | 1750/1400 rpm | 1750/1400 rpm |
| Number of cylinders | 6 | 6 |
| Displacement | 7.255 L | 442.73 in³ |
| Emission levels | StageIII | StageIII |
| Fuel capacity | 340 L | 20748.07 in³ |
| Weight | 2.8 t | 2.8 t |
| Outlet×quantity | G1½×1 & G¾×1 | G1½×1 & G¾×1 |
| Tire size×quantity | Two Tires | Two Tires |
| Overall dimensions | 4450x2120x2142 mm | NaN ft. |
| Noise | 82±3 dB(A) | 82±3 dB(A) |
Applications
The CSH660A is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for CSH660A Air Compressor
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
