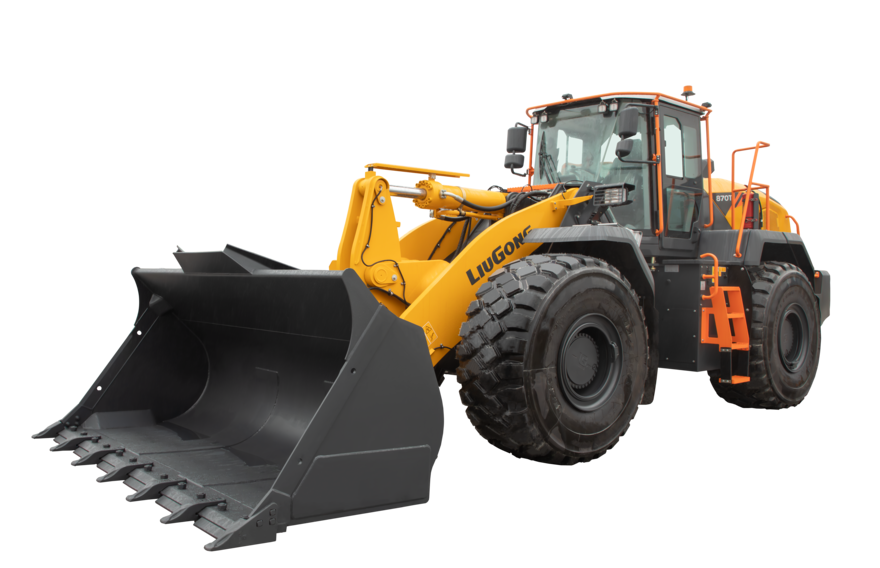

870T Wheel Loader
The LiuGong 870T wheel loader built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
870T Wheel Loaders
Operating Weight
24,300 kg
Operating Weight
23,300 kg
Net Power
199 kW (267 hp / 271 ps) @ 2,100 rpm
Specifications
| Operating Weight | 24,300 kg |
|---|---|
| Gross Power | 210 kW (282 hp / 286 ps) @ 2,100 rpm |
| Total Hydraulic Cycle Time | 10.6 s |
| Maximum Travel Speed, fwd | 38 km/h |
| Bucket Breakout Force | 186 kN |
| Dump Reach at Full Height Discharge | 1,175 mm |
| Length with Bucket Down | 9,142 mm |
| Cab Height | 3,460 mm |
| Bucket Capacities | 3.0-7.0 m³ |
| Light Material Bucket | 5.8 m³, 7.2 m³ |
| Slag Bucket | 3.5 m³ |
| Standard Bucket Capacity | 4.2 m³ |
| Net Power | 199 kW (267 hp / 271 ps) @ 2,100 rpm |
| Raise | 5.8 s |
| Tipping Load - Full Turn | 16,120 kg |
| Dump Clearance at Full Height Discharge | 3,249 mm |
| Model | Cummins L9 |
| Width over Tires | 2,980 mm |
| Turning Radius, Outside of Tire | 6,795 mm |
| GP Bucket | 3.0-5.5 m³ |
| Rock Bucket | 3.3 m³, 4.0 m³ |
| ※For reference only. | 870T ( Tier 3/Stage III) |
| Operating Weight | 23,300 kg |
| Rated Power | 210 kW (282 hp / 286 ps) @ 2,200 rpm |
| Tipping Load-Full Turn | 5.8 s |
| Dump Clearance at Full Height Discharge | 18,000 kg |
| Dump Clearance at Full Height Discharge | 3,207 mm |
| Model | Cummins L9 |
| Width over Tires | 3,000 mm |
| Turning Radius, Outside of Tire | 6,650 mm |
| GP Bucket | 4.0-6.2 m³ |
| Standard Bucket Capacity | 4.5 m³ |
Key Features
- Operating weight 24,300 kgStandard class — construction sites, aggregates and loading work.
- Engine power 199 kW (267 hp / 271 ps) @ 2,100 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 4.2 m³Sized for efficient loading cycles and production targets.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 870T is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 870T Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
