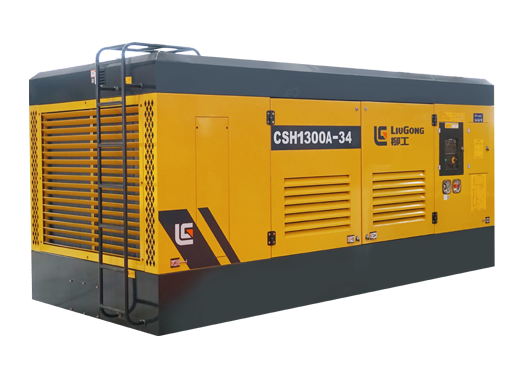

CSH1300A Air Compressor
The LiuGong CSH1300A air compressors delivers free air delivery of 31-29/36-32 m³/min; pressure of 21-25/21-34 Bar; dual transformation of Dual. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
CSH1300A Air Compressors
Free air delivery
31-29/36-32 m³/min
Pressure
21-25/21-34 Bar
Dual transformation
Dual
Key Features
- LiuGong 's E-Kon control system is easy to understand and operate. The innovative system can also be accessed and operated remotely. Stop and Start through one key,compressor controls and parameters can all be remotely accessible for higher productivity and lower downtime.
- For extra protection it use a double air filter to extend engine and air end 's working life.
Specifications
| Free Air Delivery [m³/min] | 31-29/36-32 |
|---|---|
| Free Air Delivery [CFM] | 1100-1030/1300-1150 |
| Pressure[Bar] | 21-25/21-34 |
| Pressure[psi] | 305-363/305-493 |
| Compressor oil[L] | 120 |
| Element | LGIR |
| Engine | Yuchai |
| Engine Type | YC6K560-KT31 |
| Power[kW] | 412 |
| Working and Idling speed [rpm] | 1600/1300 1830/1300 |
| Number of cylinders | 6 |
| Displacement [L] | 13 |
| Emission levels(Standard) | Stage III |
| Fuel capacity [L] | 700 |
| Weight [t] | 5.5 |
| Outlet×quantity | G2×1 & G¾×1 |
| Tire size×quantity | Skid mounted |
| Overall dimensions [mm] | 4118x1832x2114 |
| Noise[dB(A)] | 85±3 |
Applications
The CSH1300A is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for CSH1300A Air Compressor
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
