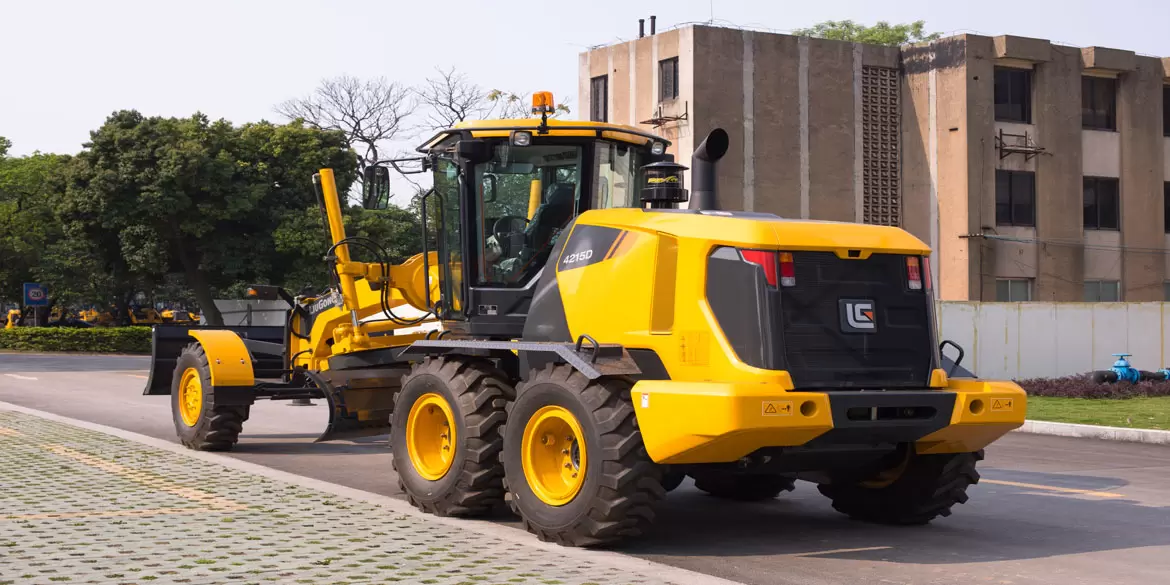

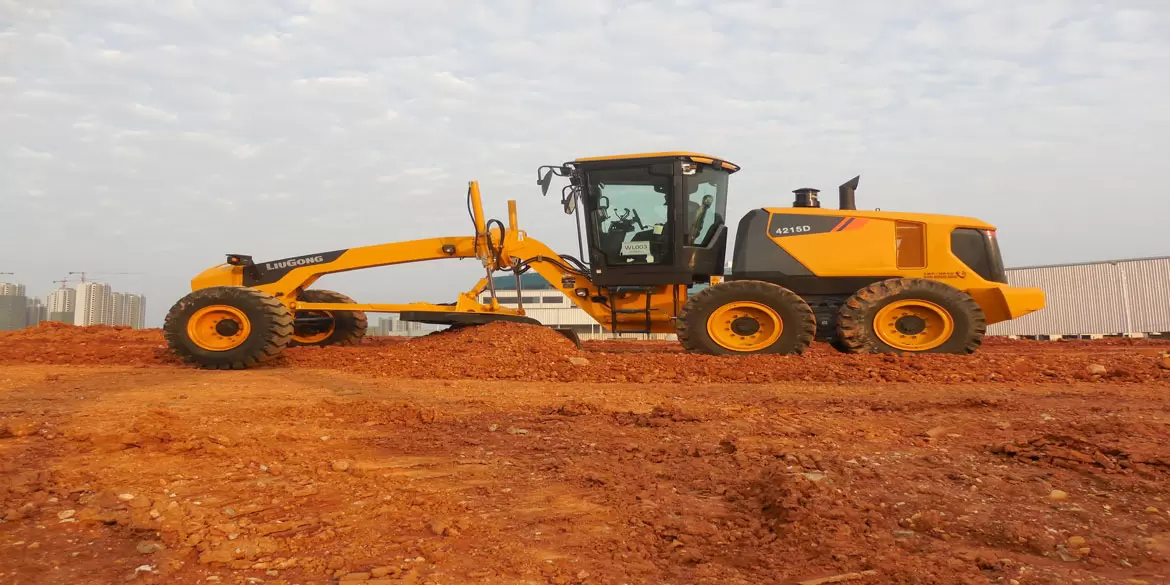

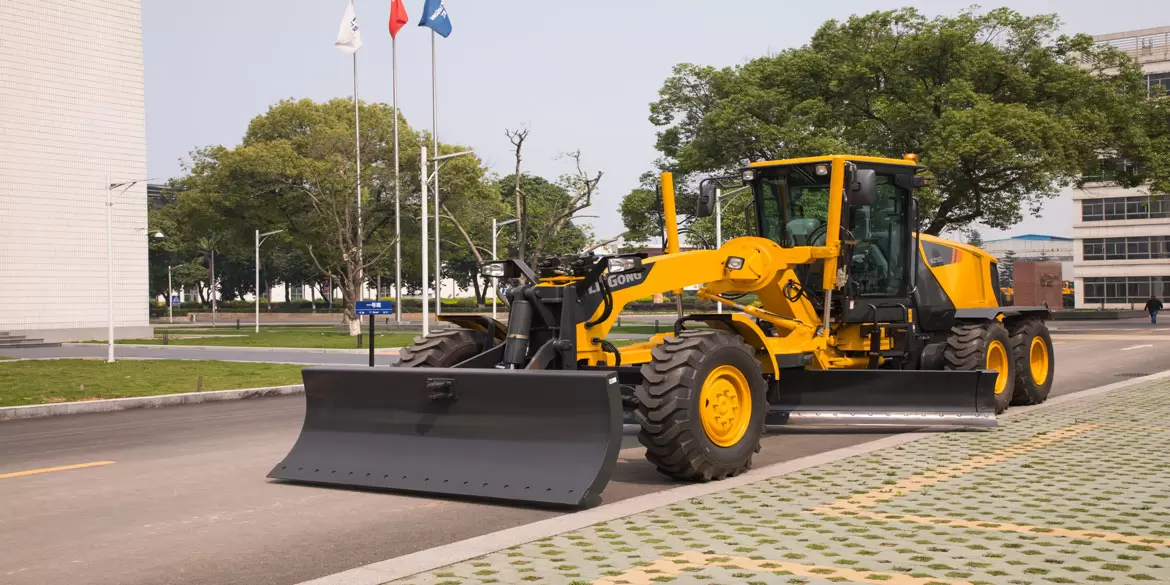

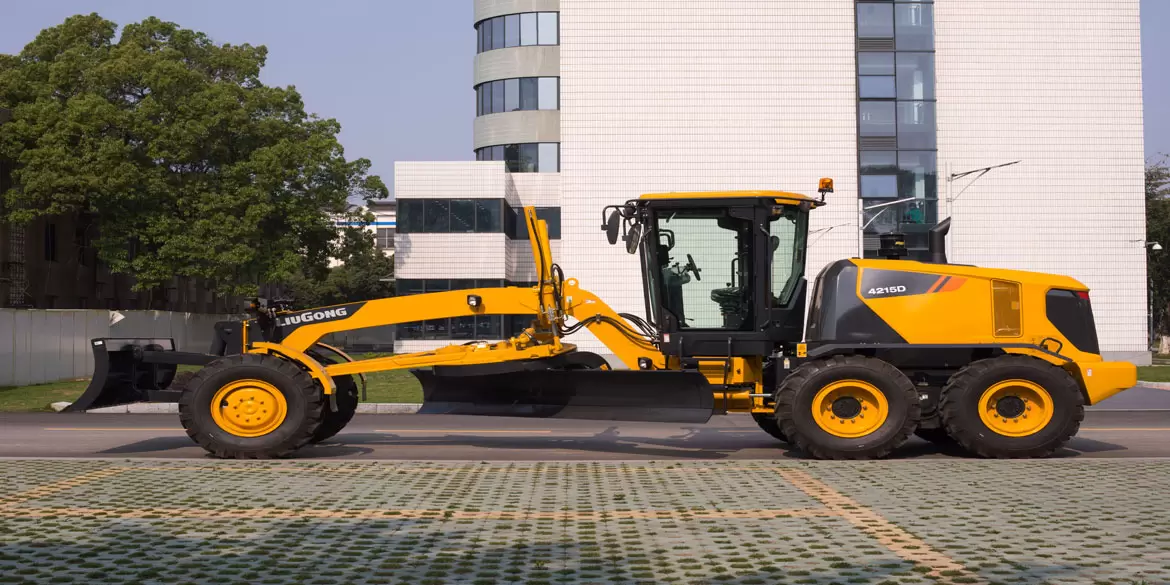

4215D Motor Grader
The LiuGong 4215D motor grader offers operating weight of 18,000 kg; engine power of 162 kW (217 hp) @ 2,200 rpm; drawbar pull of 93 kN. Precise road grading, site levelling and surface finishing; reliable powertrain and comfortable, high-visibility operator station. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
4215D Engine Graders
Operating Weight
18,000 kg
Engine Power
162 kW (217 hp) @ 2,200 rpm
Drawbar Pull
93 kN
Specifications
| Operating Weight | 18,000 kg |
|---|---|
| Engine Power | 162 kW (217 hp) @ 2,200 rpm |
| Drawbar Pull | 93 kN |
| Engine Model | Cummins 6LTAA9.3 |
| Emission Standard | Tier 2 / Stage II |
| Transmission Type | Powershift |
| Speeds | 6F / 3R |
| Max Forward Speed | 42 km/h |
| Turning Radius | 7,200 mm |
| Articulation Angle | ±27° |
| Max Overall Height | 3,380 mm |
| Tire Width | 1,517 mm |
| Blade Width | 4,270 mm |
| Overall Length | 9,090 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 18,000 kgClass-defining weight for application matching.
- Engine power 162 kW (217 hp) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 4215D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 4215D Motor Grader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
