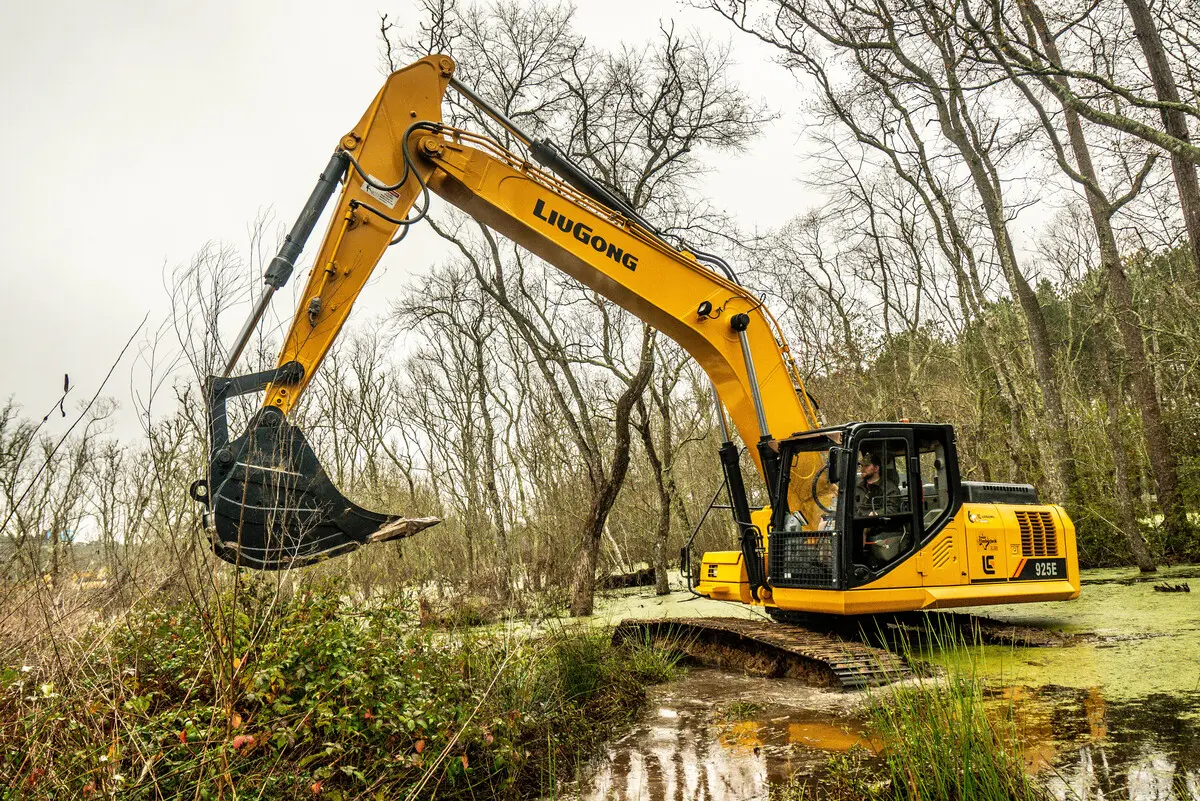

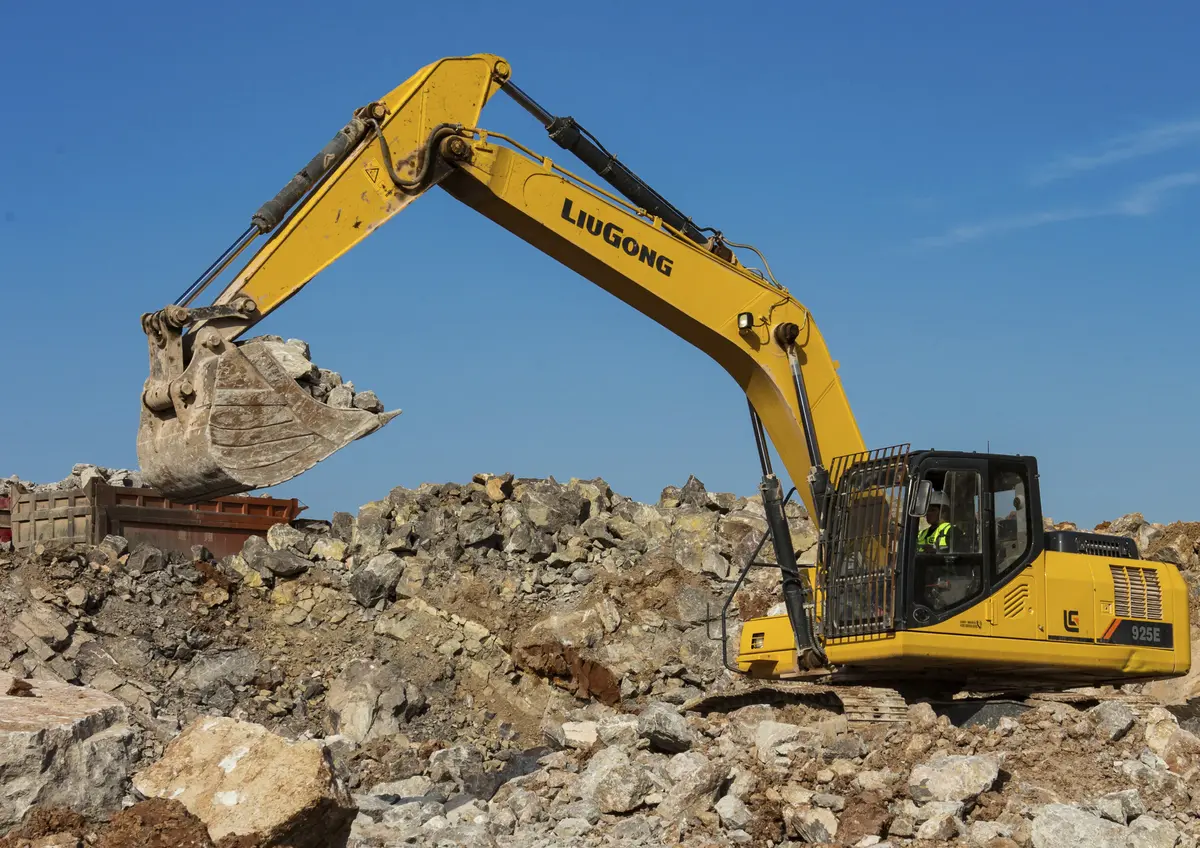

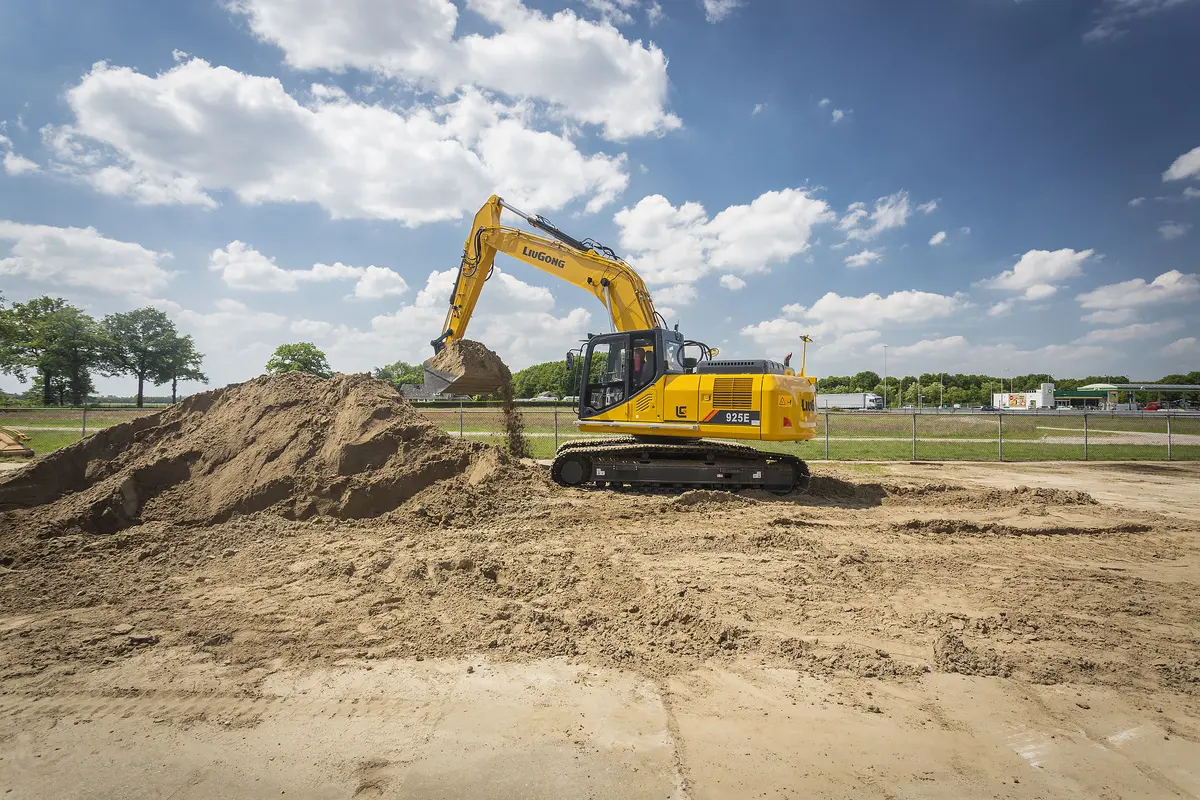

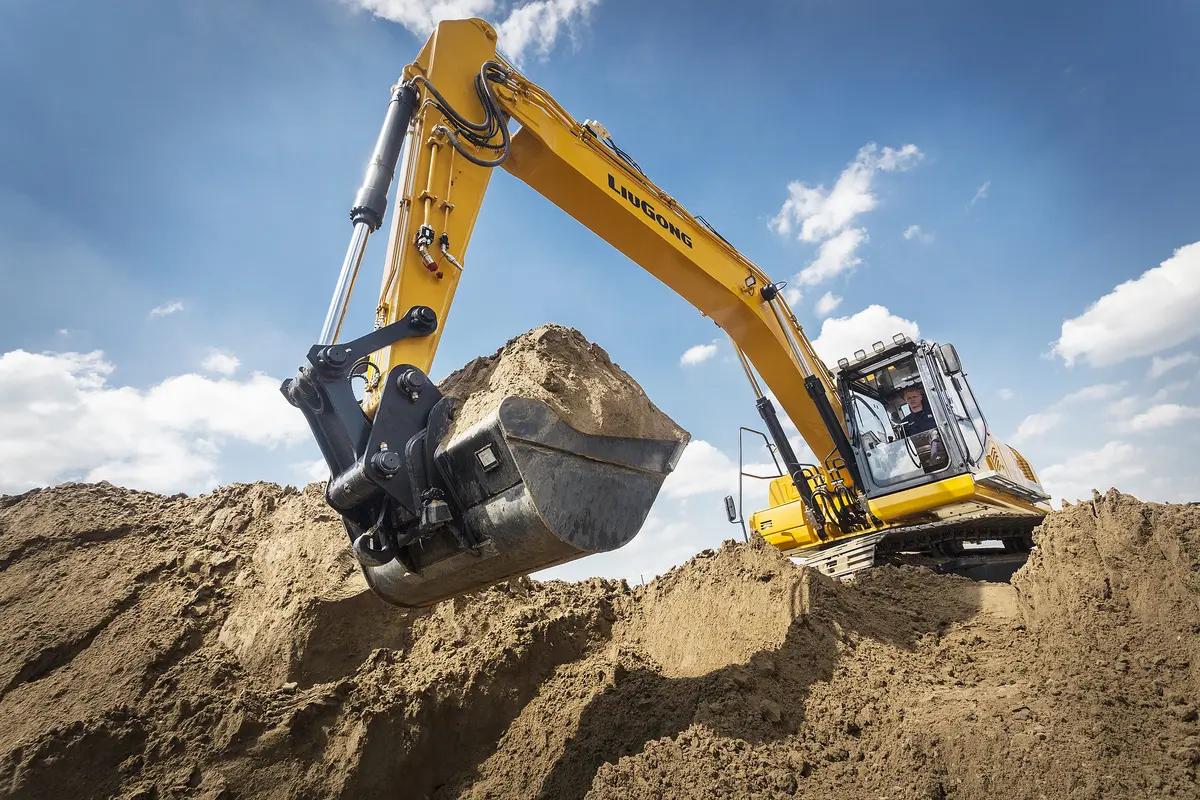

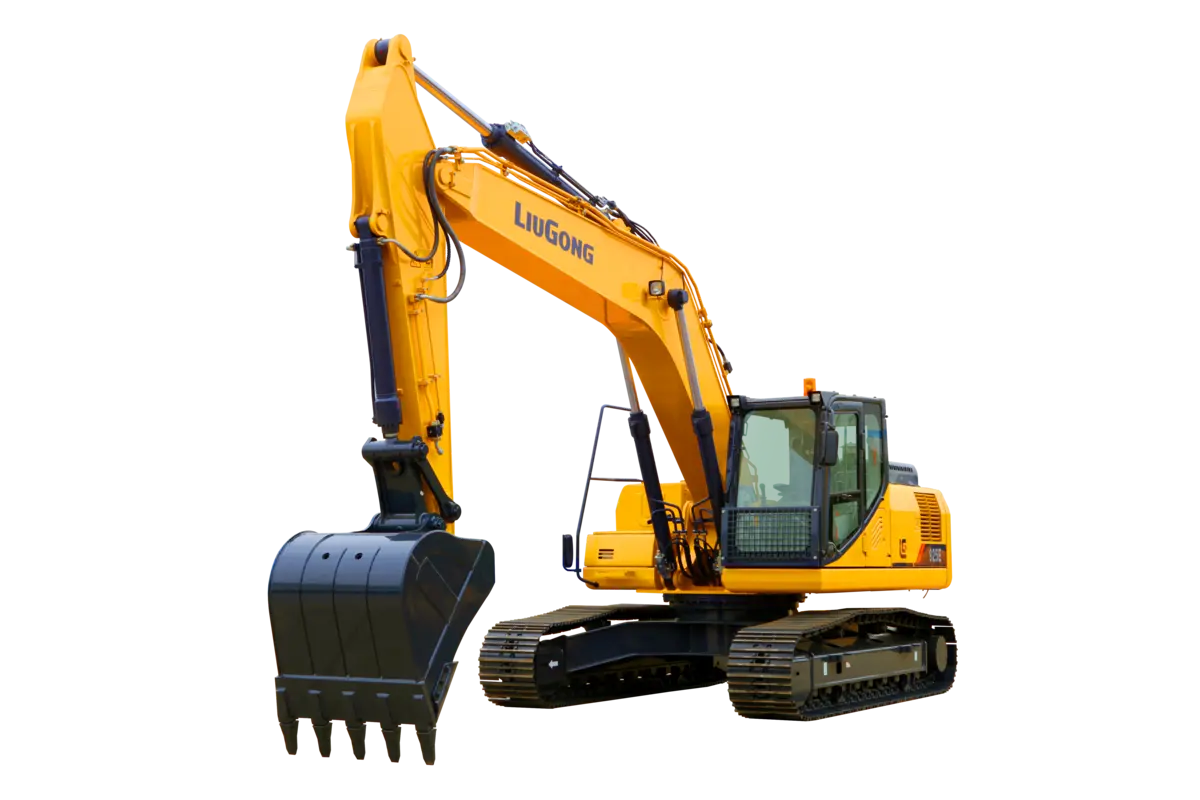

925E Excavator
The LiuGong 925E crawler excavator offers operating weight of 25500 kg; std. bucket capacity of 1.2 m³; engine power of 133kW ( 178 hp / 181 ps) @ 2,000 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
925E Excavators
Operating weight
25500 kg
Std. Bucket capacity
1.2 m³
Engine power
133kW ( 178 hp / 181 ps) @ 2,000 rpm
Specifications
| Operating weight | 25500 kg |
|---|---|
| Std. Bucket capacity | 1.2 m³ |
| Travel speed(Low) | 3.5 km/h |
| Arm breakout force | 124 kN |
| Bucket breakout force | 165 kN |
| Shipping length | 10220 mm |
| Shipping height | 3200 mm |
| Boom | 6000 mm |
| Digging reach | 10340 mm |
| Digging depth | 6925 mm |
| Cutting height | 9865 mm |
| Minimum front swing radius | 3695 mm |
| Emission | EPA Tier 2 / EU Stage II |
| System pressure | 34.3 MPa |
| Engine power | 133kW ( 178 hp / 181 ps) @ 2,000 rpm |
| Travel speed(High) | 5.8 km/h |
| Maximum swing speed | 12 rpm |
| Arm breakout force Power boost | 134 kN |
| Bucket breakout force Power boost | 179 kN |
| Shipping width | 3190 mm |
| Track shoe width (std) | 600 mm |
| Arm | 2980 mm |
| Digging reach on ground | 10150 mm |
| Vertical wall digging depth | 5795 mm |
| Dumping height | 6920 mm |
| Model | Cummins 6BTAA5.9-C178-II |
| System maximum flow | 2×240 L/min (2x63 gal/min) |
| ※For reference only. | 925E－Stage IIIA |
| Operating weight | 25500 kg |
| Std. Bucket capacity | 1.2 m³ |
| Travel speed(Low) | 3.3 km/h |
| Arm breakout force | 124 kN |
| Bucket breakout force | 165 kN |
| Shipping length | 10220 mm |
| Shipping height | 3200 mm |
| Boom | 6000 mm |
| Digging reach | 10340 mm |
| Digging depth | 6925 mm |
| Cutting height | 9865 mm |
Key Features
- Operating weight 25500 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 133kW ( 178 hp / 181 ps) @ 2,000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.2 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 925E is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 925E Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
