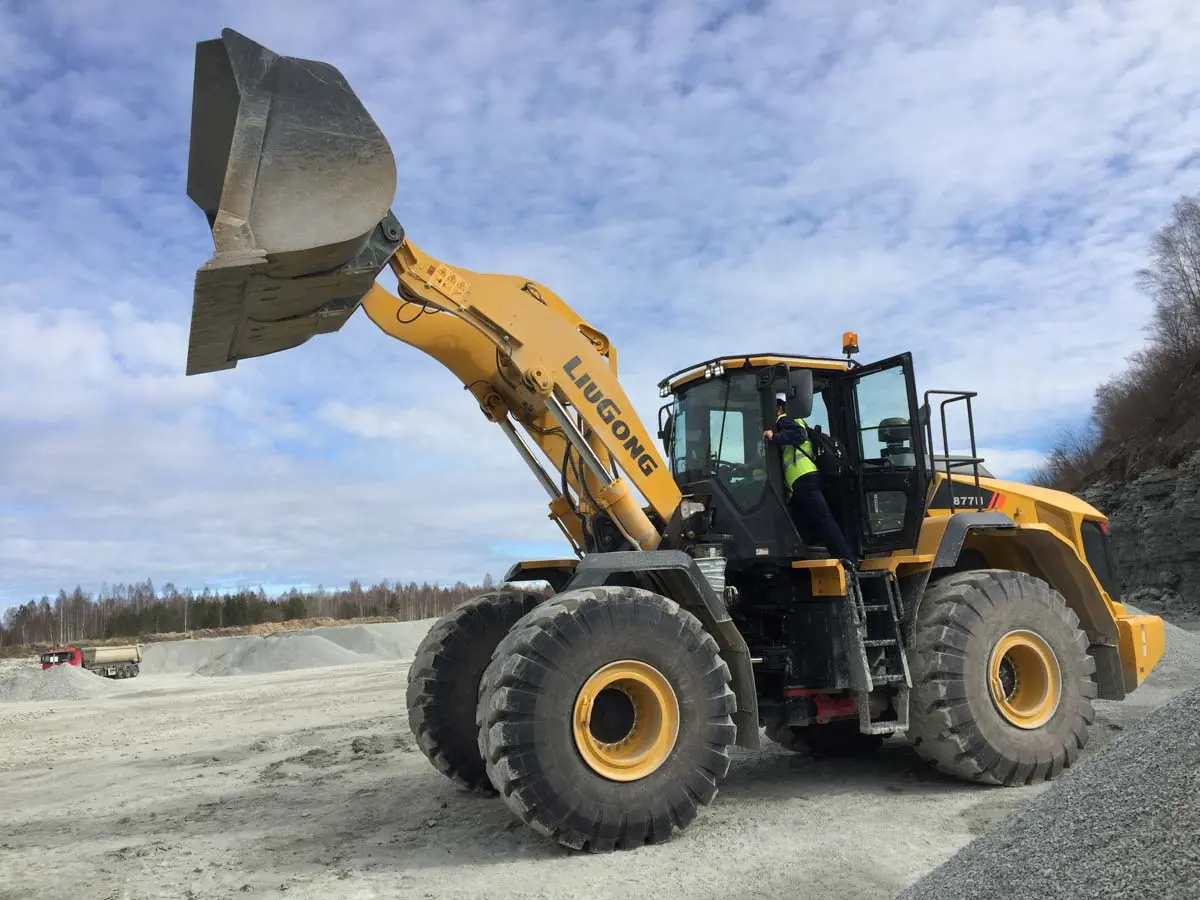

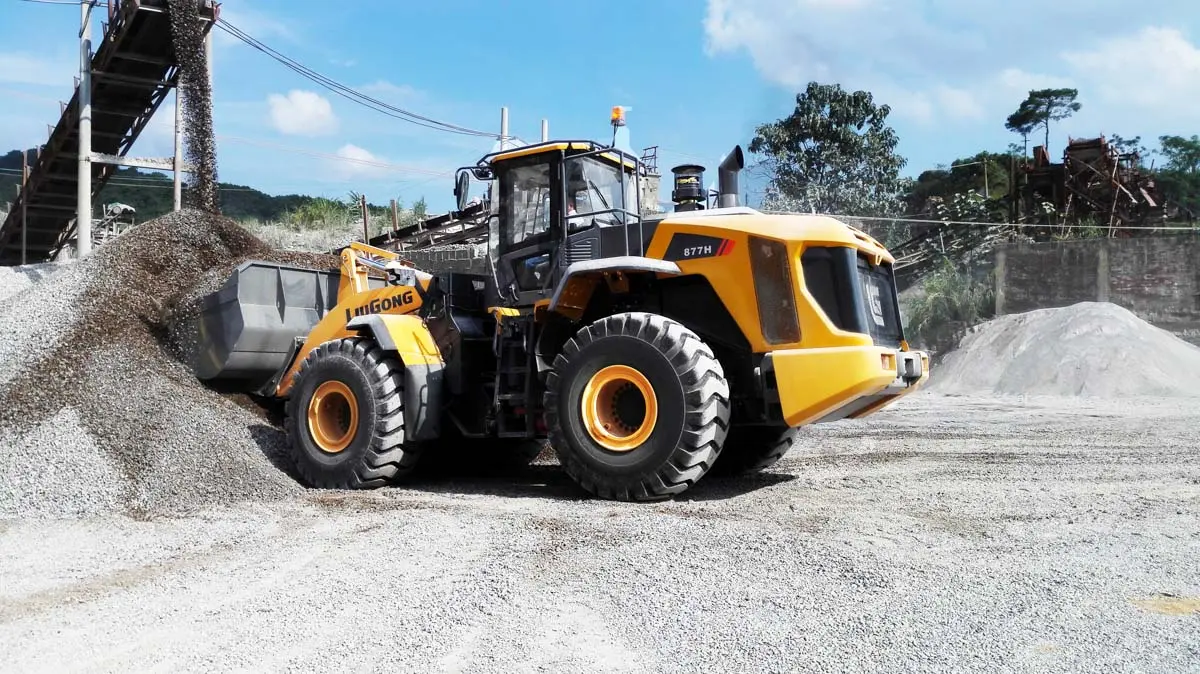

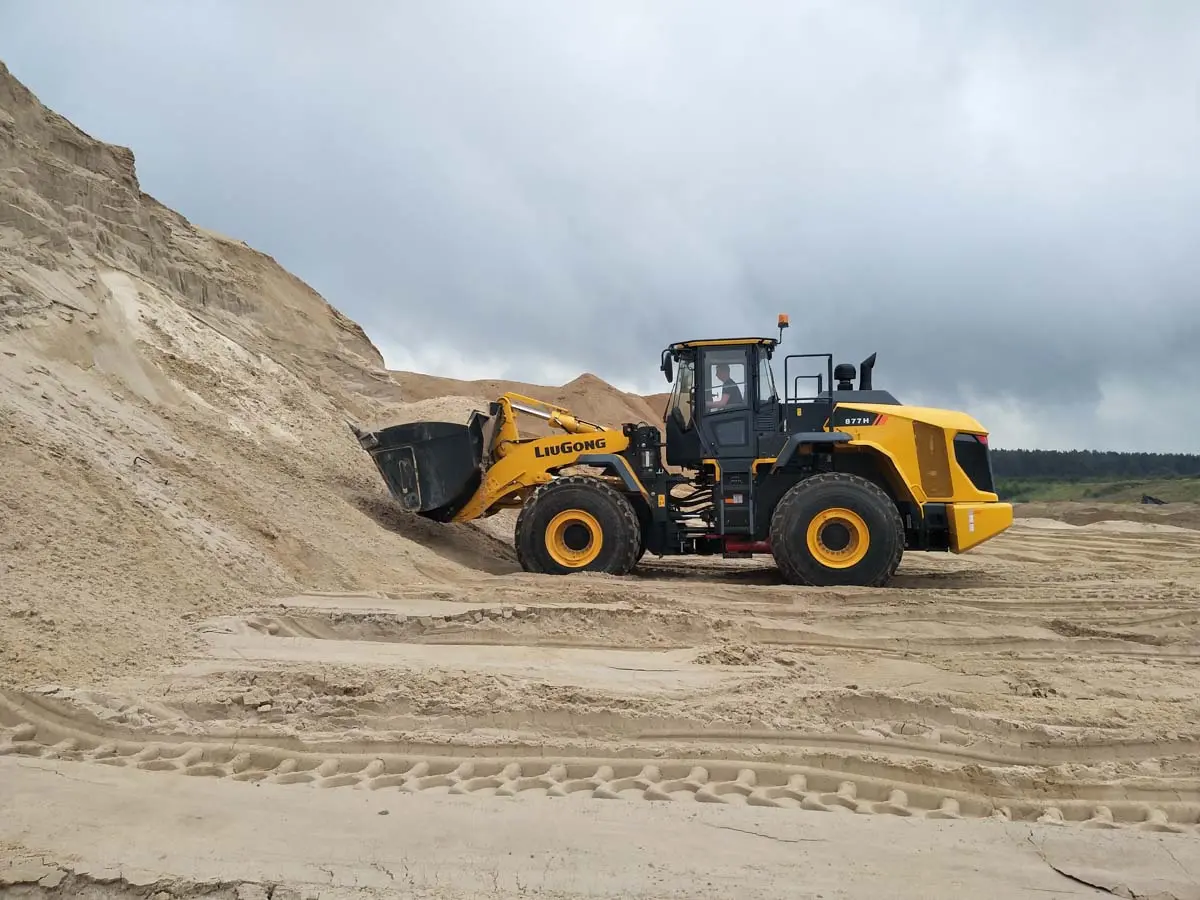

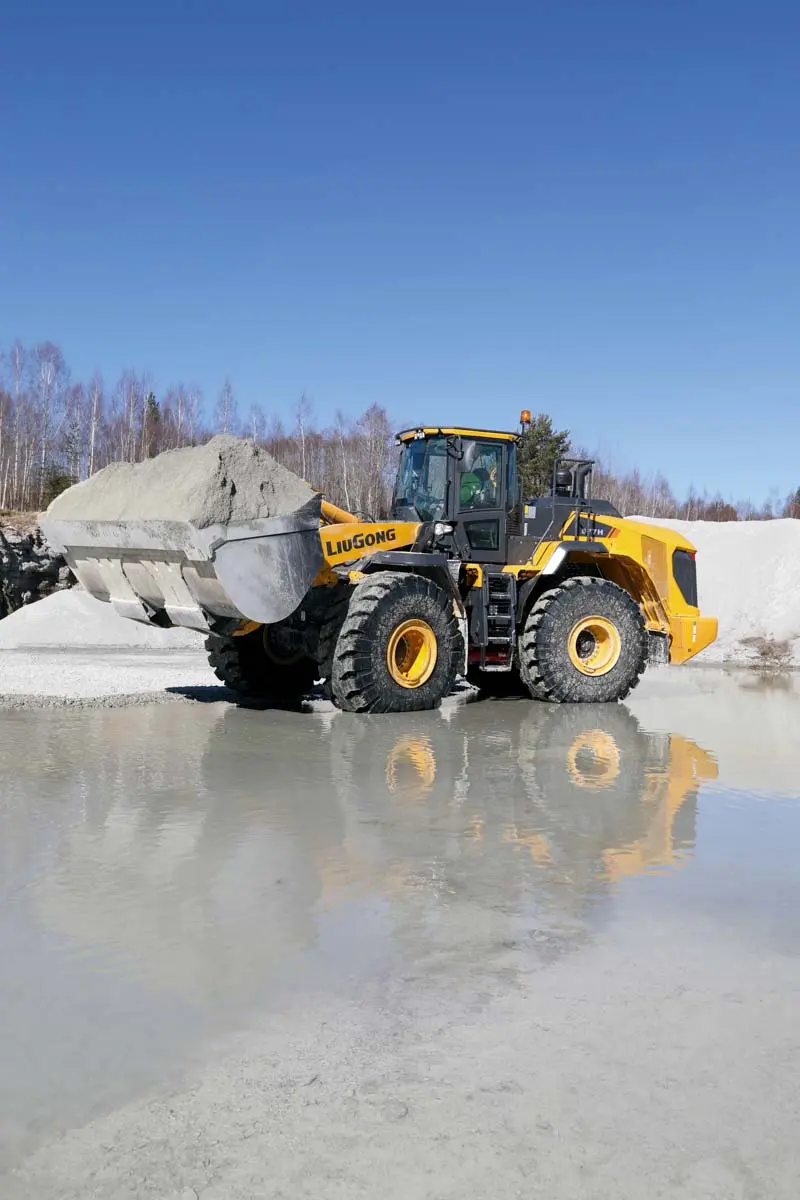

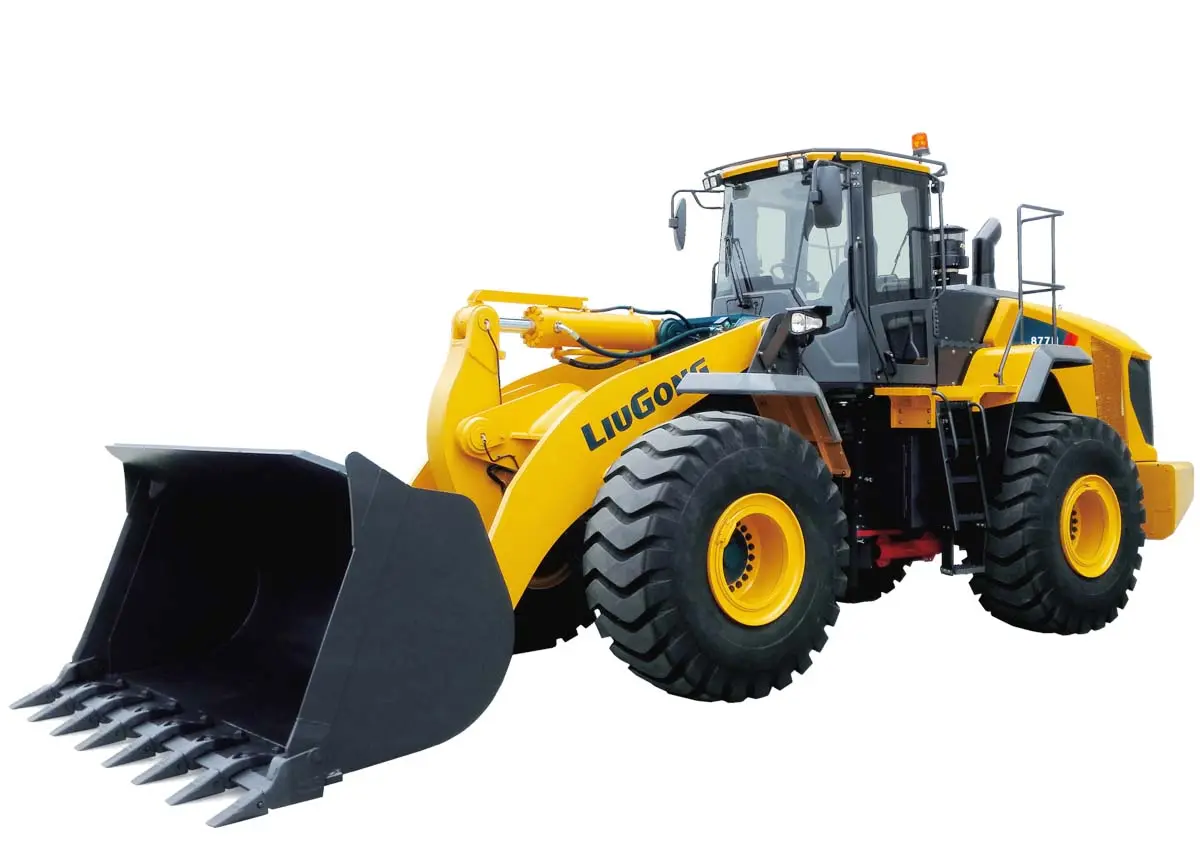

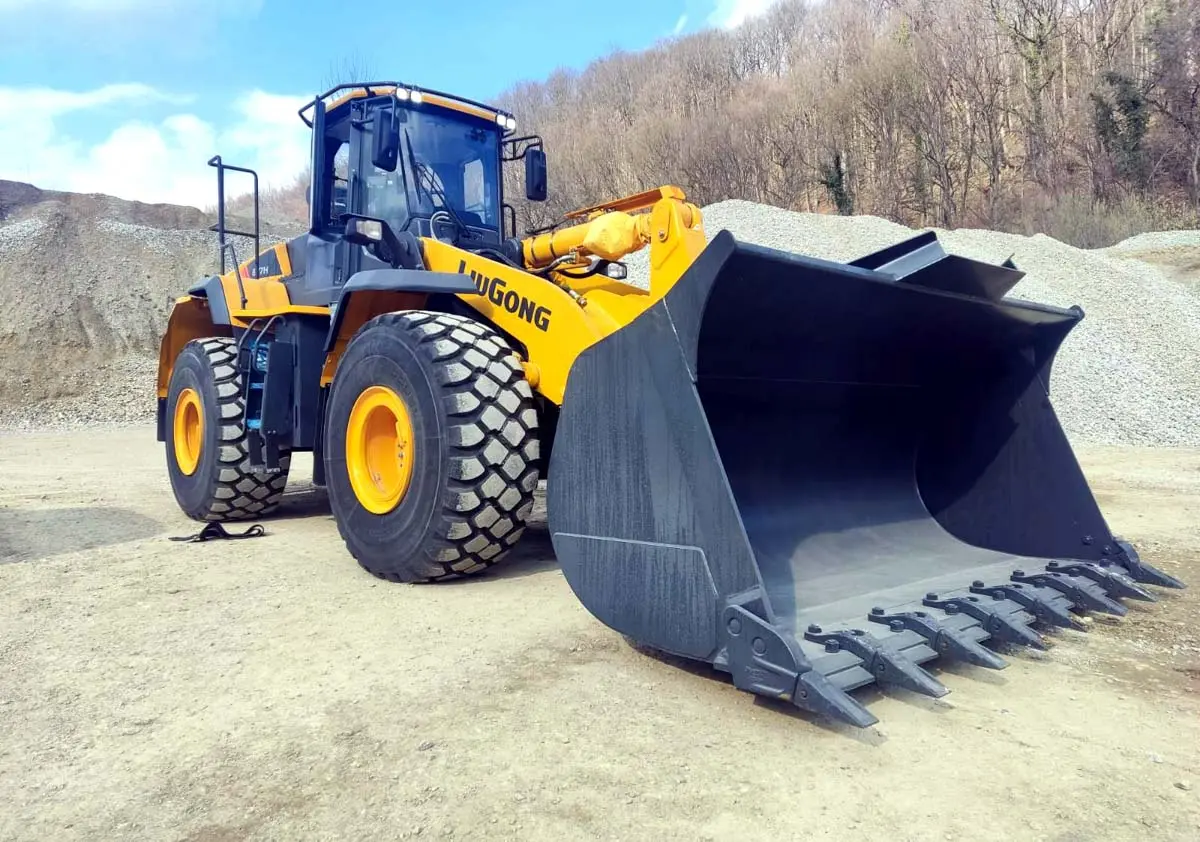

877H Wheel Loader

Name: 877H Wheel Loader
Brand: LiuGong

The LiuGong 877H wheel loader offers operating weight of 24.500 Kg; general purpose bucket capacity of 4,5 m³; rock bucket capacity of 4 m³. Built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.

Specifications Key Features Applications Get a Quote

877H Wheel Loaders

Operating Weight

24.500 Kg

General Purpose Bucket Capacity

4,5 m³

Rock Bucket Capacity

4 m³

Specifications

Operating Weight	24.500 Kg
Gross Power	233 kW (312 hp) @ 1.700 rpm
Net Power	213 kW (286 hp) @ 1.700 rpm
Load Capacity	7.500 Kg
Total Load Cycle	10.8 s
Static Load (Straight)	18.000 Kg
Static Load (Full Turn)	16.000 Kg
Bucket Breakout Force	200 kN
Bucket Pin Height	4.355 mm
Dumping Height	3.150 mm
Dumping Reach	1.300 mm
Engine Model	Cummins L9
Emission Standard	EU Stage V
Cooling System	Air-to-Air Aftercooled
Transport Length	9.100 mm
Transport Width	2.950 mm
Transport Height	3.580 mm
External Turning Radius	7.400 mm
General Purpose Bucket Capacity	4,5 m³
Rock Bucket Capacity	4 m³
Tyres	26.5-25
Cab Type	ROPS / FOPS

Download Brochure & Spec Sheet

Open or download the official LiuGong PDF catalog (new tab).

Multipage 877H

Key Features

Operating weight 24.500 Kg
Compact utility class — warehousing, mixing plants and light material handling.
Engine power 213 kW (286 hp) @ 1.700 rpm
Power matched to daily production and fuel-efficient operation.
Bucket capacity 4,5 m³
Sized for efficient loading cycles and production targets.
Factory-direct support
Global parts, warranty and after-sales network from the manufacturer.

Applications

The 877H is suited to Warehousing, mixing plants and light material handling. Tell us your material and application and we will recommend the right configuration.
