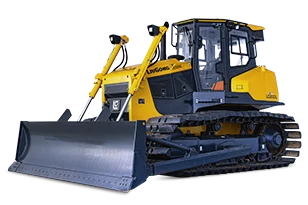

LD20D Track Dozer
The LiuGong LD20D track dozer offers operating weight of 17,500 – 20,000 kg; engine power of 154 kW (207 hp) @ 2,000 rpm; max forward speed of 10.6 km/h. Powerful earthmoving, site preparation and land clearing; durable undercarriage, ROPS/FOPS cab and high drawbar pull. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
LD20D Track Dozers
Operating Weight
17,500 – 20,000 kg
Engine Power
154 kW (207 hp) @ 2,000 rpm
Max Forward Speed
10.6 km/h
Specifications
| Operating Weight | 17,500 – 20,000 kg |
|---|---|
| Engine Power | 154 kW (207 hp) @ 2,000 rpm |
| Max Forward Speed | 10.6 km/h |
| Max Reverse Speed | 12.6 km/h |
| Forward Speeds | 3 |
| Reverse Speeds | 3 |
| Track Shoe Width | 510 mm |
| Ground Pressure | 63.7 kPa |
| Blade Type | Straight |
| Blade Capacity | 4.5 m³ |
| Dig Depth | 510 mm |
| Lift Height | 1,100 mm |
| Blade Angle | 6.8° |
| Blade Tilt | 445 / 470 mm |
| Transport Length | 5,370 mm |
| Transport Width | 3,422 mm |
| Transport Height | 3,312 mm |
| Engine Model | Cummins QSL9.3 |
| Emission Standard | Tier 3 / Stage III |
| Ripper Options | 3-shank |
Key Features
- Operating weight 17,500 – 20,000 kgClass-defining weight for application matching.
- Engine power 154 kW (207 hp) @ 2,000 rpmPower matched to daily production and fuel-efficient operation.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The LD20D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LD20D Track Dozer
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
