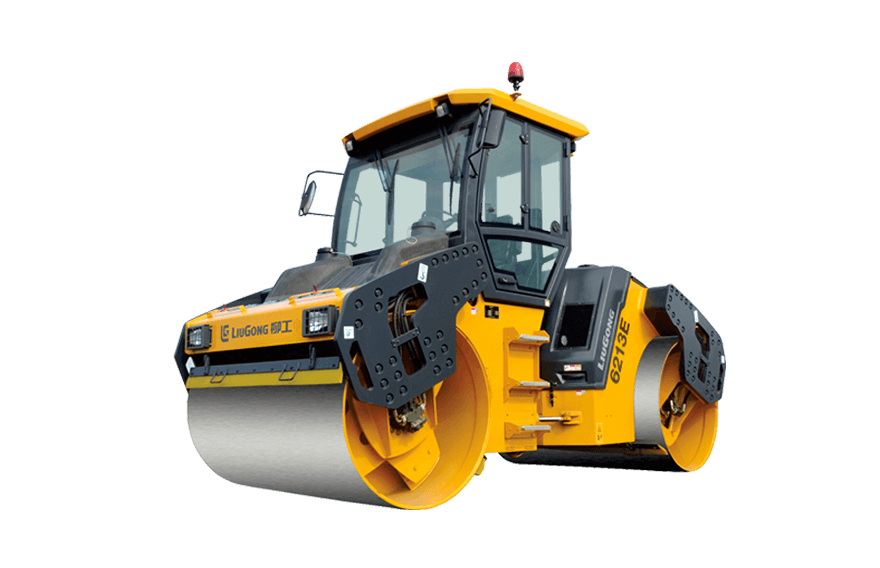

6213E Roller
The LiuGong 6213E compaction roller offers rated power of 119 kW (160 hp / 162 ps) @ 2,200 rpm. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6213E Rollers & Compaction
Operating Mass
13,000 kg
Rated Power
119 kW (160 hp / 162 ps) @ 2,200 rpm
Mass On Rear Axle
6,500 kg
Specifications
| Operating Mass | 13,000 kg |
|---|---|
| Mass On Rear Axle | 6,500 kg |
| Rear Drum Static Linear Load | 305 N/cm |
| Vibration Frequency Low | 45/50 Hz |
| Centrifugal Force Low | 150/90 kN |
| Nominal Amplitude High | 0.8/0.3 mm |
| Drum Diameter | 1,300 mm |
| 1,300 mm | 1st Maximum Speed, fwd |
| 1st Maximum Speed, fwd | 6 km/h |
| 6 km/h | 3rd Maximum Speed, fwd |
| 3rd Maximum Speed, fwd | 12 km/h |
| Min. Ground Clearance | 320 mm |
| Min. Outside Turning Radius | 6,770 mm |
| Overall Width | 2,300 mm |
| Mass On Front Drum | 6,500 kg |
| Front Drum Static Linear Load | 305 N/cm |
| Model | Cummins QSB4.5 |
| Rated Power | 119 kW (160 hp / 162 ps) @ 2,200 rpm |
| Nominal Amplitude Low | 0.75/0.4 mm |
| Vibration Frequency High | 50/67 Hz |
| Centrifugal Force High | 169/108 kN |
| Drum Width | 2,130 mm |
| 2,130 mm | 2nd Maximum Speed, fwd |
| 2nd Maximum Speed, fwd | 8 km/h |
| Theoretical Gradeability | 40% |
| Wheelbase | 3,585 mm |
| Overall Length | 5,050 mm |
| Overall Height | 3,170 mm |
Key Features
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6213E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6213E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
