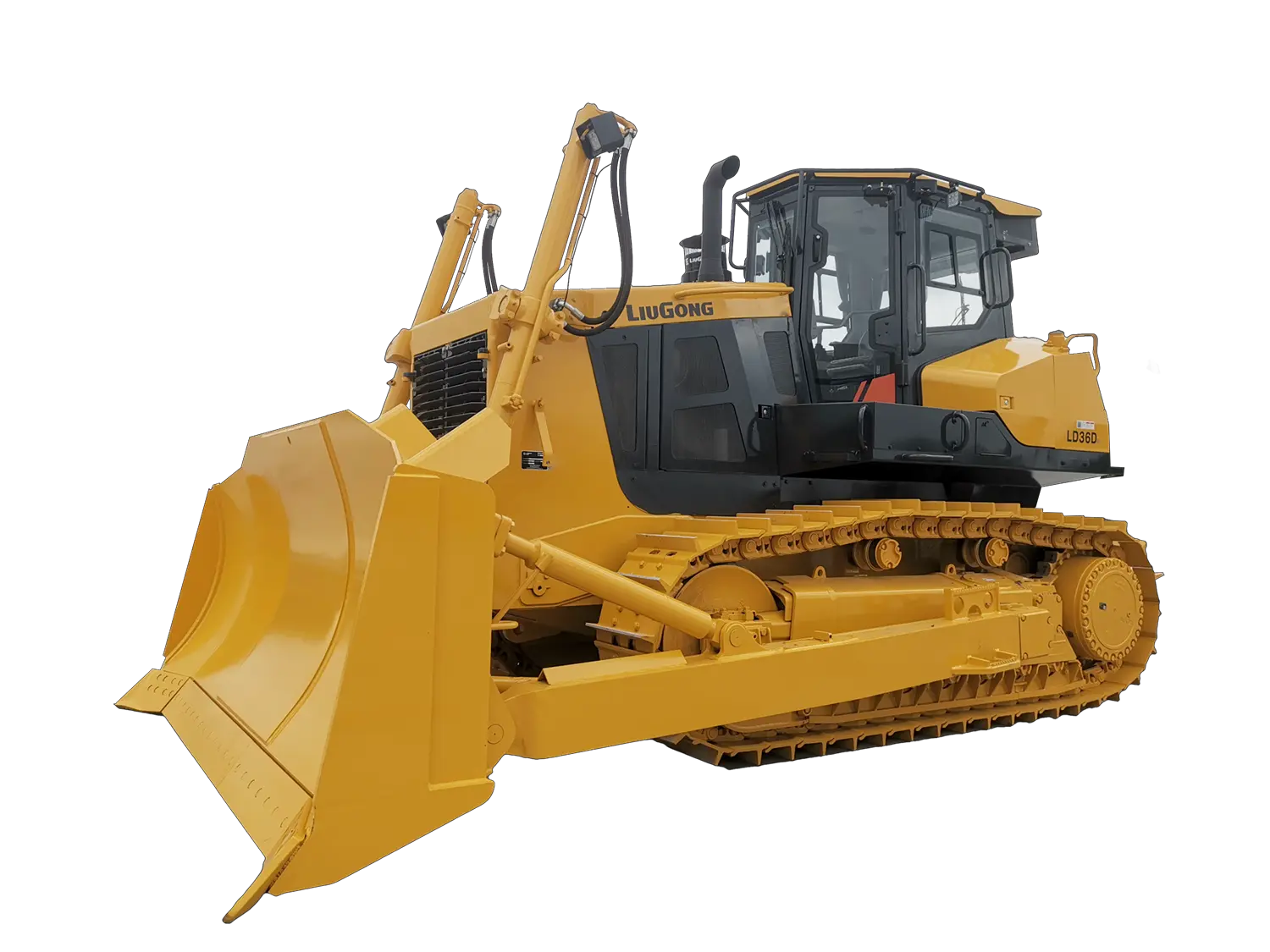

LD36D Track Dozer
The LiuGong LD36D track dozer offers operating weight of 40.000 kg; engine power of 280 kW (375 hp / 381 ps) @ 2.000 rpm; velocidad máxima de desplazamiento, adelante of 11 km/h. Powerful earthmoving, site preparation and land clearing; durable undercarriage, ROPS/FOPS cab and high drawbar pull. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
LD36D Track Dozers
Operating Weight
40.000 kg
Engine Power
280 kW (375 hp / 381 ps) @ 2.000 rpm
Velocidad máxima de desplazamiento, adelante
11 km/h
Specifications
| Operating Weight | 40.000 kg |
|---|---|
| Engine Power | 280 kW (375 hp / 381 ps) @ 2.000 rpm |
| Max Forward Travel Speed | 11 km/h |
| Max Reverse Travel Speed | 13.3 km/h |
| Number of Forward Speeds | 3 |
| Number of Reverse Speeds | 3 |
| Track Shoe Width | 560 mm |
| Ground Pressure | 85.2 kPa |
| Type de hoja | Semi-U blade |
| Blade Capacity | 11.7 m³ |
| Depth trabajo bajo tierra | 600 mm |
| Lift | 1,270 mm |
| Blade Tilt | 880 mm |
| Transport Length | 8.410 mm |
| Width transporte | 4.050 mm |
| Transport Height | 3.955 mm |
| Engine Model | ChongQing Cummins NTA855-C375S20 |
| Emission Standard | Tier 2 / Estadio II |
| Download Catalog | Other Models |
| B160C | B230 |
| LD20D | LD60D |
Key Features
- Operating weight 40.000 kgClass-defining weight for application matching.
- Engine power 280 kW (375 hp / 381 ps) @ 2.000 rpmPower matched to daily production and fuel-efficient operation.
- Travel speed 11 km/hEfficient repositioning and cycle times on site.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The LD36D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LD36D Track Dozer
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
