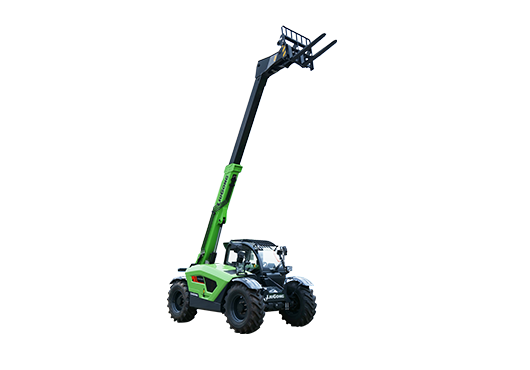

LTH0735E Telehandler
The LiuGong LTH0735E telehandlers delivers max. lift height of 6.95 m; unladen weight of 8,160(with Forks) kg; max. capacity of 3,500 kg. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LTH0735E Telehandlers
Max. Lift Height
6.95 m
Unladen Weight
8,160(with Forks) kg
Max. Capacity
3,500 kg
Key Features
- Safety & ReliabilityDual-Protection SystemIntegrated limit switches and extended angle sensors ensure precision-controlled movement across all working envelopes.Precision Load Sensing: High-accuracy platform load sensors provide continuous, real-time weight monitoring for maximum stability.Anti-Crush Protection: Standard-equipped anti-crush system offers a robust safety shield for the operator.
- Efficient MaintenanceSmart TelematicsReal-time vehicle data monitoring and transmission keep you connected to your equipment.Integrated Diagnostics: Streamlined access to fault history, maintenance alerts, and operational logs for proactive fleet management.Service-Friendly Design: Features self-lubricating bearings and a swing-out engine tray for rapid, tool-free serviceability.
Specifications
| Max. Capacity | 3,500 kg |
|---|---|
| Max. Lift Height | 6.95 m |
| Lift Capacity at Max. Height | 3,000 kg |
| Max. Forward Reach | 3.95 m |
| Lift Capacity at Max. Forward Reach | 1,300 kg |
| Breakout Force with Bucket | 37 kN |
| Unladen Weight (with Forks) | 8,160 kg |
| Rated Power | CATL 70 KWh |
| Max. Torque | 461 N·m |
| Motor Power | 32 / 50 kW |
| Motor Torque | 180 / 410 Nm |
| Transmission | Electric |
| Number of Gears | (2/2) |
| Max. Drive Speed | 35 km/h |
Applications
The LTH0735E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LTH0735E Telehandler
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
