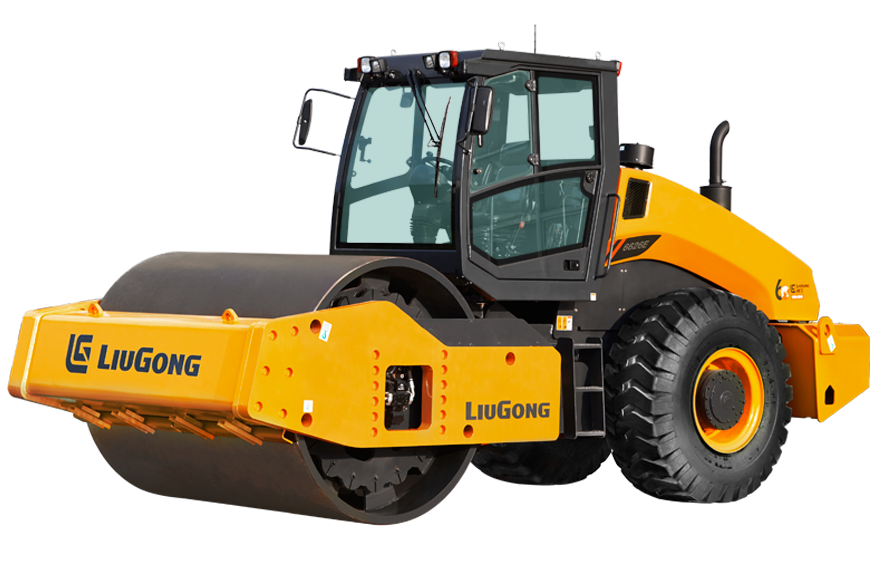

6626E Roller
The LiuGong 6626E compaction roller offers rated power of 177 kW (237 hp / 241 ps) @ 2,200 rpm. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6626E Rollers & Compaction
Operating Mass
26,000 kg
Rated Power
177 kW (237 hp / 241 ps) @ 2,200 rpm
Mass On Drive Axle
8,800 kg
Specifications
| Operating Mass | 26,000 kg |
|---|---|
| Mass On Drive Axle | 8,800 kg |
| Model | Shangchai SC9DK240G3 |
| Rated Power | 177 kW (237 hp / 241 ps) @ 2,200 rpm |
| Nominal Amplitude | 2.1/1.2 mm |
| Drum Diameter | 1700 mm |
| 1700 mm | 2nd Maximum Speed, fwd |
| 2nd Maximum Speed, fwd | 5.6 km/h |
| 5.6 km/h | 4th Maximum Speed, fwd |
| 4th Maximum Speed, fwd | 10.4 km/h |
| Min. GroundClearance | 500 mm |
| Min. Outside Turning Radius | 7,000 mm |
| Overall Width | 2,500 mm |
| Mass On Vibrating Drum | 17,200 kg |
| Front Drum Static Linear Load | 782 N/cm |
| Vibration Frequency | 28/32 Hz |
| Centrifugal Force | 480/375 kN |
| 480/375 kN | 1st Maximum Speed, fwd |
| 1st Maximum Speed, fwd | 4.1 km/h |
| 4.1 km/h | 3rd Maximum Speed, fwd |
| 3rd Maximum Speed, fwd | 6.2 km/h |
| Theoretical Gradeability | 50% |
| Wheelbase | 3,250 mm |
| Overall Length | 6,475 mm |
| Overall Height | 3,150 mm |
Key Features
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6626E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6626E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
