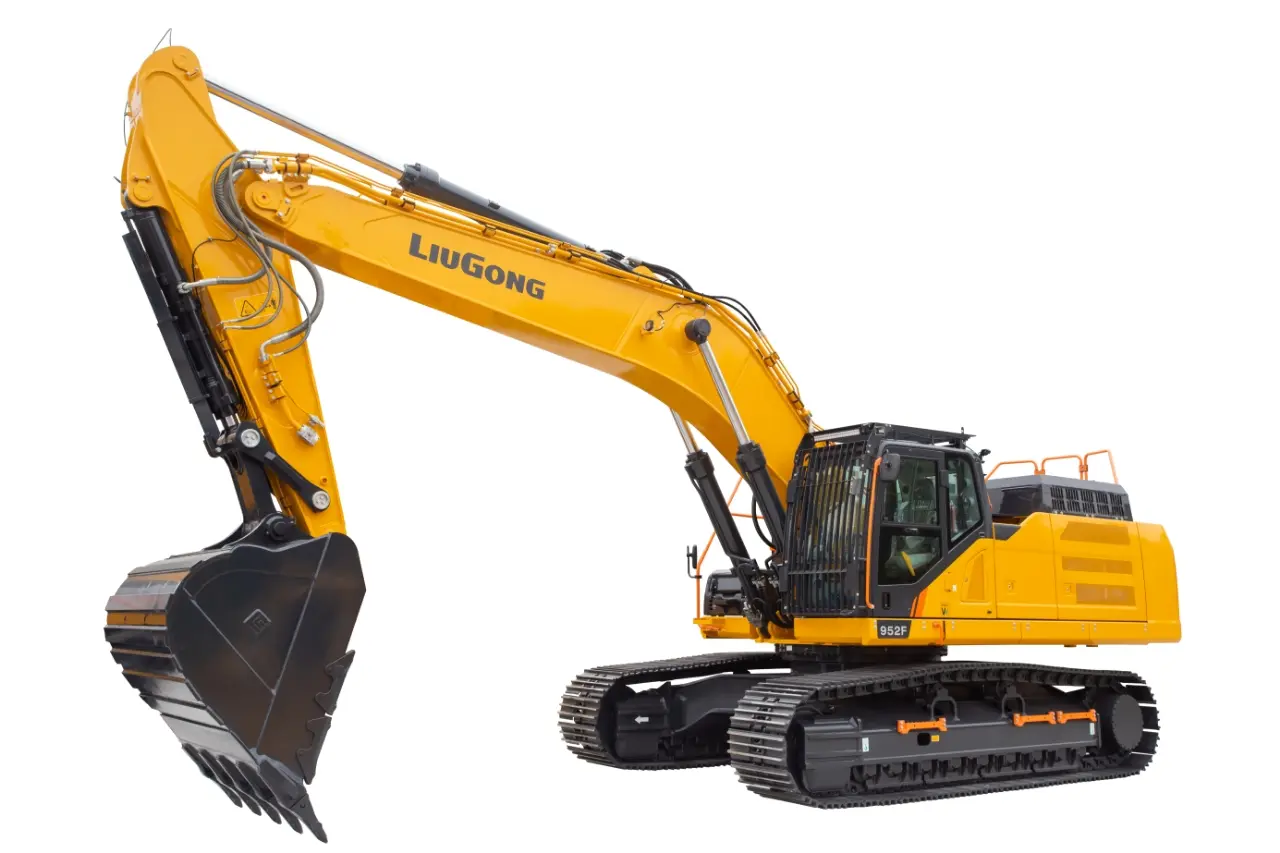

952F Excavator
The LiuGong 952F crawler excavator offers operating weight of 51000 kg; bucket capacity of 2.6-3.2 m³; engine power of 298 kW @ 2000 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
952F Excavators
Operating weight
51000 kg
Bucket capacity
2.6-3.2 m³
Engine power
298 kW @ 2000 rpm
Specifications
| Operating weight | 51000 kg |
|---|---|
| Bucket capacity | 2.6-3.2 m³ |
| Maximum swing speed | 8.5 rpm |
| Bucket breakout force. | 280 kN |
| Shipping height | 3735 mm |
| Arm | 2550 mm |
| Digging reach on ground | 10620 mm |
| Vertical wall digging depth | 5080 mm |
| Dumping height | 6915 mm |
| Model | Cummins X12 |
| System maximum flow | 760 L/min |
| Engine power | 298 kW @ 2000 rpm |
| Travel speed(High) | 5.4 km/h |
| Arm breakout force | 265 kN |
| Shipping length | 11960 mm |
| Boom | 6500 mm |
| Digging reach | 10860 mm |
| Digging depth | 6760 mm |
| Cutting height | 9965 mm |
| Minimum front swing radius | 4775 mm |
| Emission | EPA Tier 4F/ EU Stage V |
| System pressure | 34.3 MPa |
Key Features
- Operating weight 51000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 298 kW @ 2000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 2.6-3.2 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 952F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 952F Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
