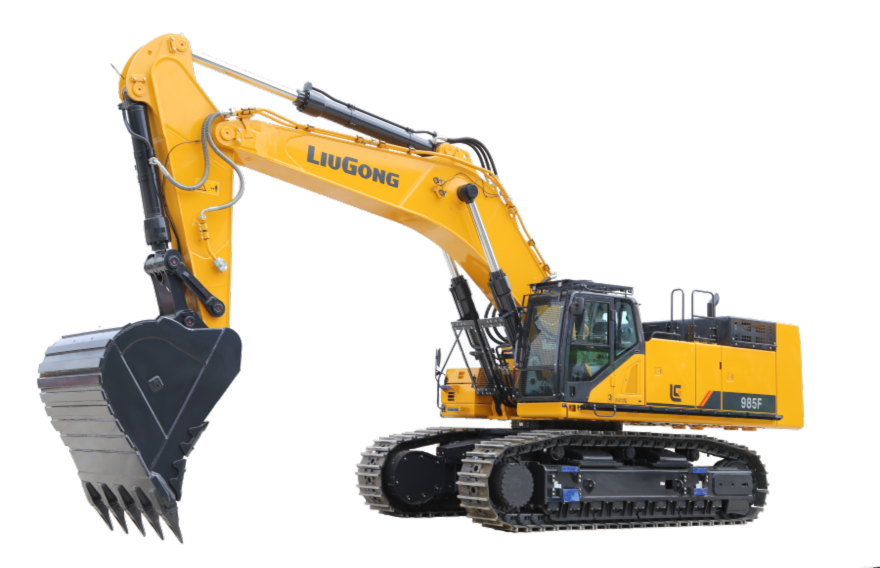

985F Excavator
The LiuGong 985F crawler excavator offers operating weight of 82,000 kg; rated power (at rated speed) of 563 kW @ 2,100 rpm; standard bucket capacity of 6.0 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
985F Excavators
Operating Weight
82,000 kg
Rated Power (at Rated Speed)
563 kW @ 2,100 rpm
Standard Bucket Capacity
6.0 m³
Specifications
| Operating Weight | 82,000 kg |
|---|---|
| Engine Model | Cummins QSM15 |
| Rated Power (at Rated Speed) | 563 kW @ 2,100 rpm |
| Swing Speed | 6.5 r/min |
| Ground Pressure | 118 kPa |
| Max. Digging Force - Bucket (ISO) | 409 kN |
| Overall Width (Standard Track) | 4,252 mm |
| Minimum Ground Clearance | 917 mm |
| Undercarriage Track Gauge | 3,350 mm |
| Max. Digging Reach | 12,220 mm |
| Max. Vertical Wall Digging Depth | 3,870 mm |
| Max. Dumping Height | 7,330 mm |
| Standard Bucket Capacity | 6.0 m³ |
| Maximum Torque | 3,000 N·m @ 1,400 rpm |
| Travel Speed High/Low | 4.4/2.6 km/h |
| Gradeability | 35 ° |
| Max. Digging Force - Arm (ISO) | 376 kN |
| Length (Transport Position) | 13,086 mm |
| Height (Transport Position) | 4,961 mm |
| Undercarriage Track Length | 6,236 mm |
| Track Width (Standard) | 650 mm |
| Max. Digging Depth | 7,400 mm |
| Max. Cutting Height | 11,530 mm |
Key Features
- Operating weight 82,000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Bucket capacity 6.0 m³Sized for efficient loading cycles and production targets.
- Digging depth 3,870 mmReach and depth suited to trenching and foundation work.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 985F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
