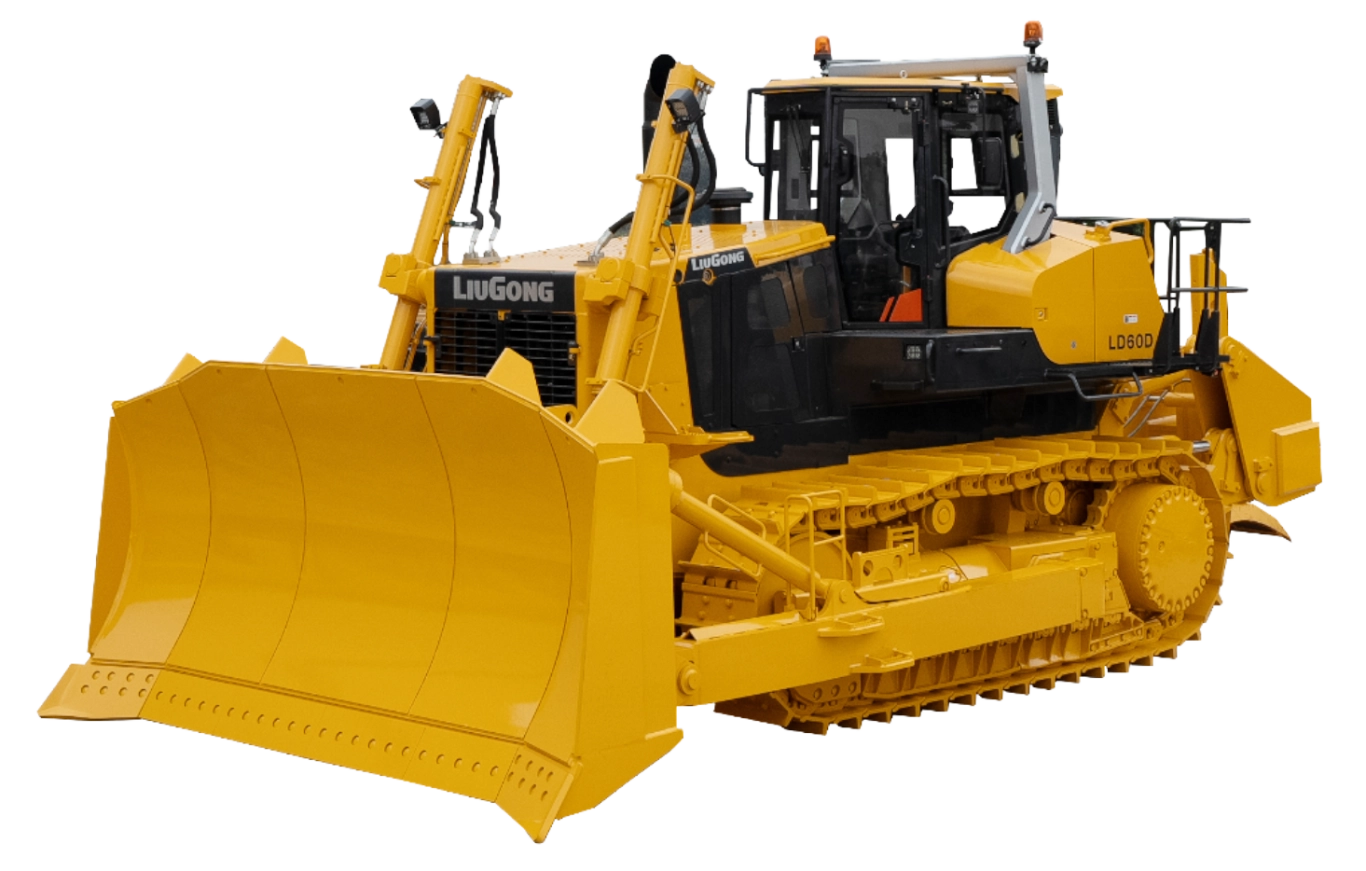

LD60D Track Dozer
The LiuGong LD60D track dozer offers operating weight of 70,800 kg; engine power of 455 kW (610 hp / 619 ps) @ 2,000 rpm; max forward speed of 12 km/h. Powerful earthmoving, site preparation and land clearing; durable undercarriage, ROPS/FOPS cab and high drawbar pull. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
LD60D Track Dozers
Operating Weight
70,800 kg
Engine Power
455 kW (610 hp / 619 ps) @ 2,000 rpm
Max Forward Speed
12 km/h
Specifications
| Operating Weight | 70,800 kg |
|---|---|
| Engine Power | 455 kW (610 hp / 619 ps) @ 2,000 rpm |
| Max Forward Speed | 12 km/h |
| Max Reverse Speed | 14.9 km/h |
| Forward Speeds | 3 |
| Reverse Speeds | 3 |
| Track Shoe Width | 610 mm |
| Ground Pressure | 151 kPa |
| Blade Type | Semi-U |
| Blade Capacity | 18.9 m³ |
| Dig Depth | 830 mm |
| Lift Height | 1,530 mm |
| Blade Tilt | 1,150 mm |
| Transport Length | 10,380 mm |
| Transport Width | 3,610 mm |
| Transport Height | 4,330 mm |
| Engine Model | Cummins QSK19 |
| Emission Standard | Tier 3 / Stage III |
| Ripper Options | 3-shank |
Key Features
- Operating weight 70,800 kgClass-defining weight for application matching.
- Engine power 455 kW (610 hp / 619 ps) @ 2,000 rpmPower matched to daily production and fuel-efficient operation.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The LD60D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LD60D Track Dozer
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
