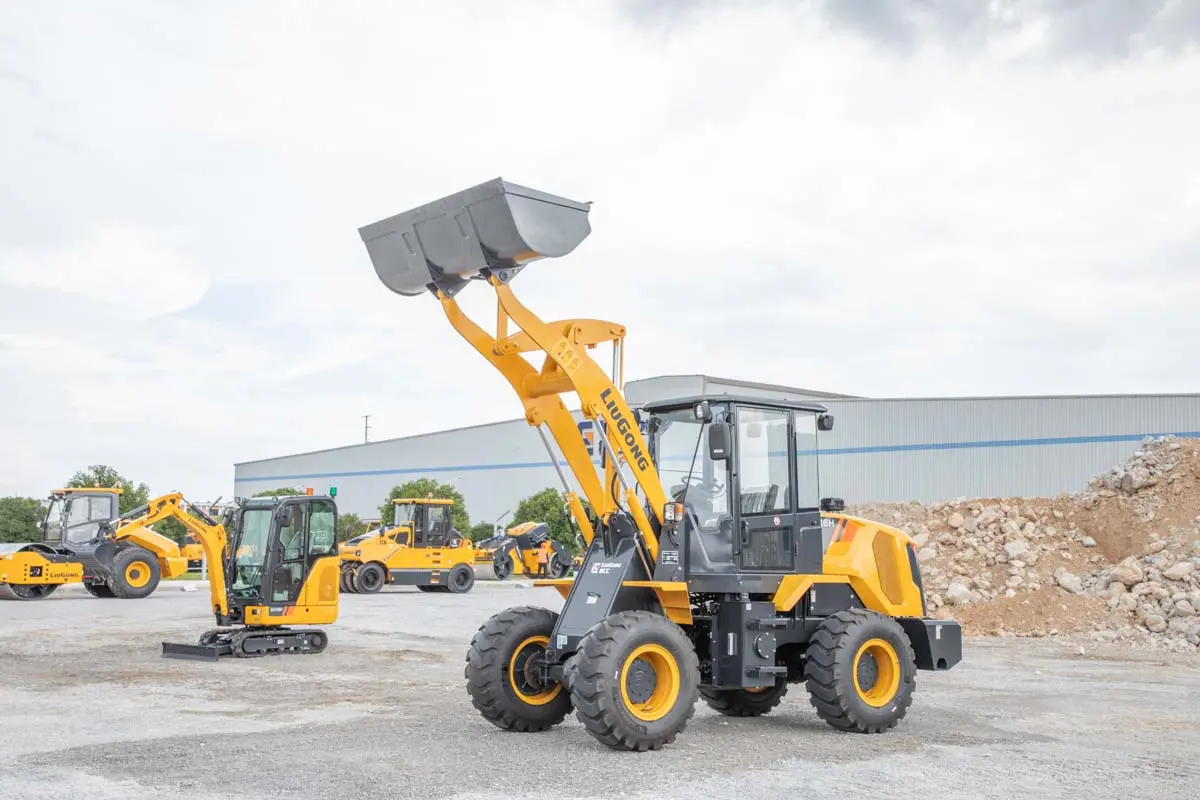

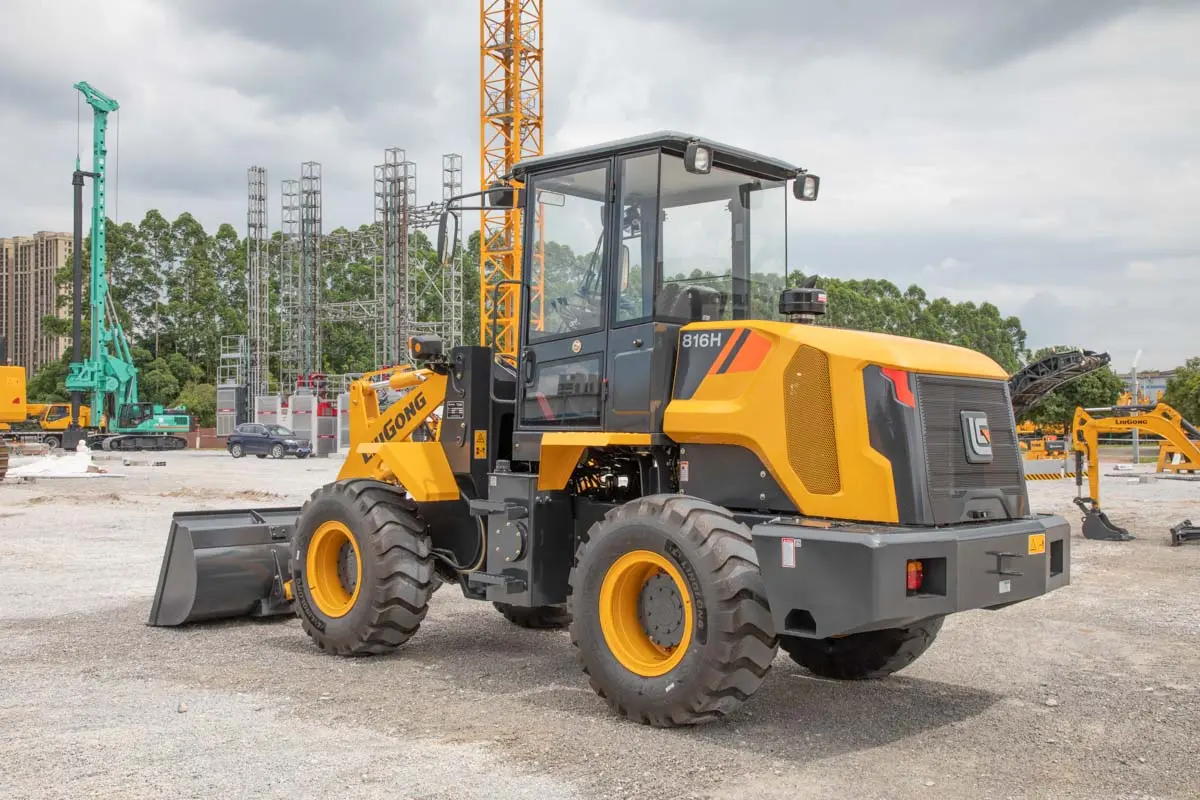

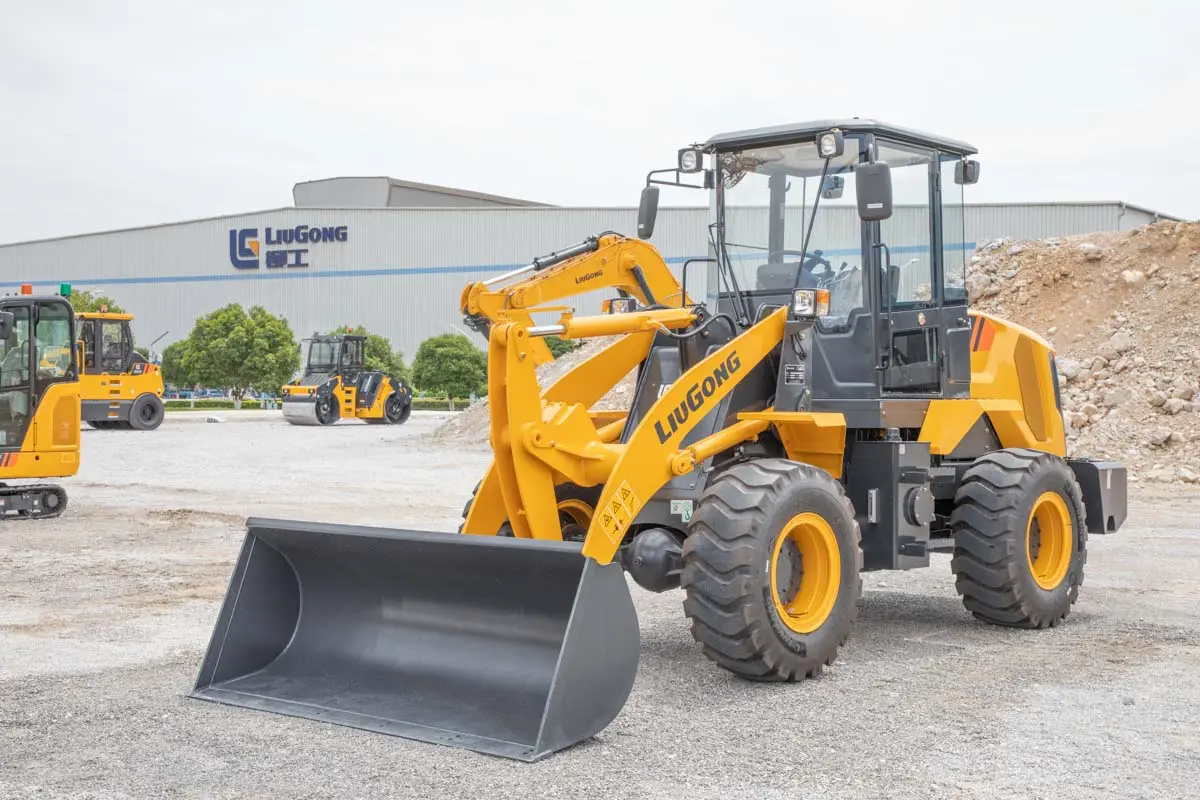

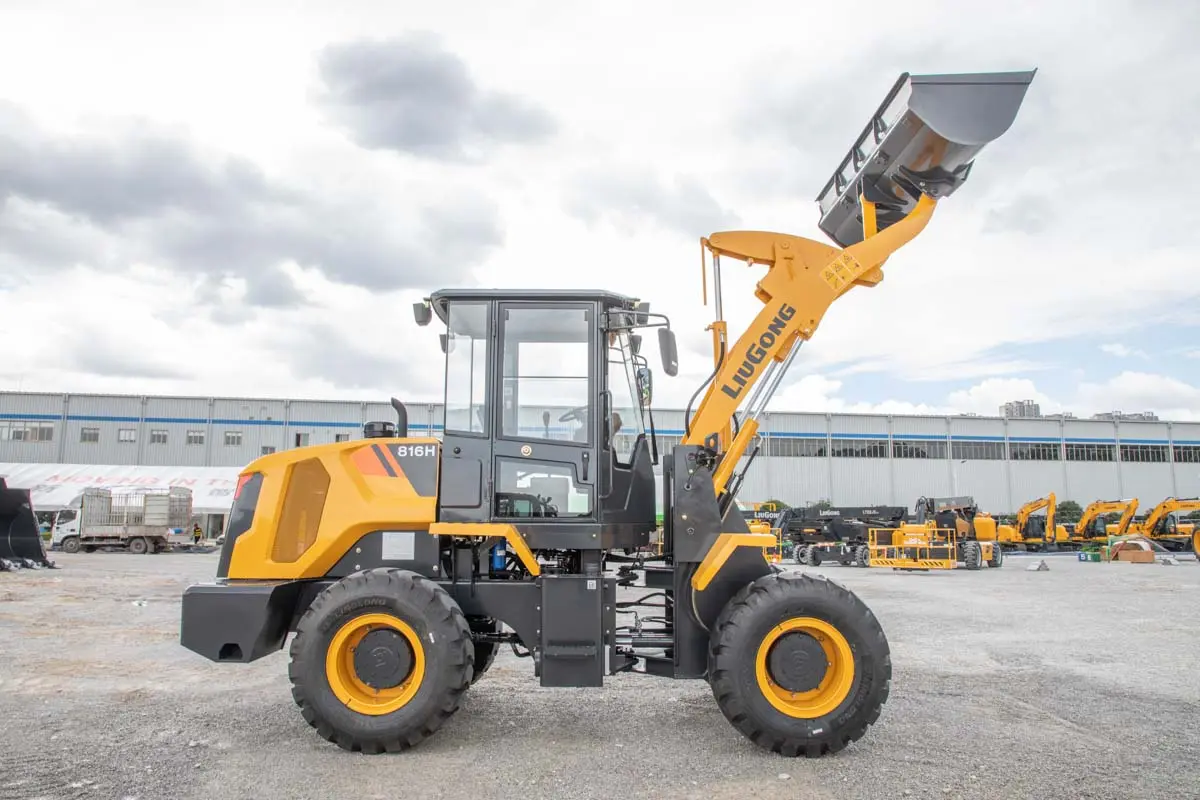

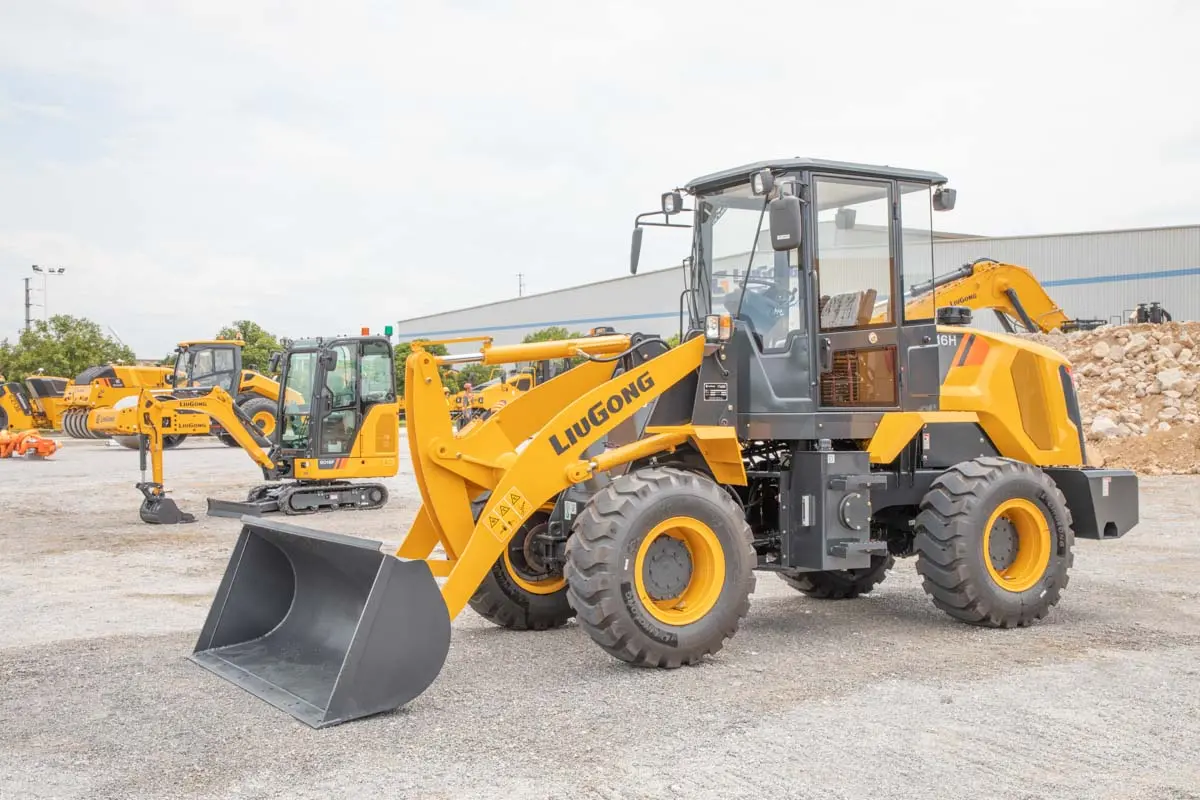

816H Wheel Loader
The LiuGong 816H wheel loader offers operating weight of 5,180 kg; rated power of 65 kW (87 hp / 88 ps) @ 2,400 rpm; standard bucket capacity of 1.0 m³. Built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
816H Wheel Loaders
Operating Weight
5,180 kg
Rated Power
65 kW (87 hp / 88 ps) @ 2,400 rpm
Standard Bucket Capacity
1.0 m³
Specifications
| Operating Weight | 5,180 kg |
|---|---|
| Gross Power | 65 kW (87 hp) @ 2,400 rpm |
| Rated Load Capacity | 1,600 kg |
| Total Hydraulic Cycle Time | 8.6 s |
| Static Tipping Load (Straight) | 3,900 kg |
| Static Tipping Load (Full Turn) | 3,300 kg |
| Bucket Breakout Force | 55 kN |
| Hinge Pin Height | 3,300 mm |
| Dumping Height | 2,600 mm |
| Dumping Reach | 1,090 mm |
| Engine Model | Yunnei YB38GBZ1 |
| Emission Standard | Tier 2 |
| Cooling System | Liquid coolant |
| Transmission | Countershaft, powershift 2F/2R |
| Brakes | Dry disc brake |
| Transport Length | 5,825 mm |
| Transport Width | 1,980 mm |
| Transport Height | 2,900 mm |
| External Turning Radius | 5,300 mm |
| General Purpose Bucket Capacity | 1 m³ |
| Tires | 16/70-20 |
| Cab Type | Standard |
Key Features
- Operating weight 5,180 kgCompact utility class — warehousing, mixing plants and light material handling.
- Bucket capacity 1 m³Sized for efficient loading cycles and production targets.
- Tipping load 3,900 kgStable loading performance and payload confidence.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 816H is suited to Warehousing, mixing plants and light material handling. Tell us your material and application and we will recommend the right configuration.
