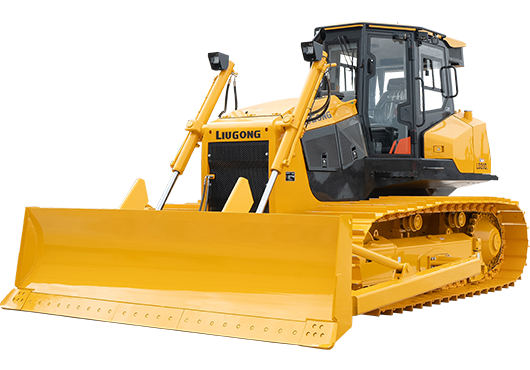

LD20DL Track Dozer
The LiuGong LD20DL dozers delivers operating weight of 20,000 kg; engine power of 154 kW; blade capacity of 3.7 m³. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LD20DL Dozers
Operating weight
20,000 kg
Engine power
154 kW
Blade capacity
3.7 m³
Key Features
- The surging power of Cummins, deeply integrated with the precision transmission of Rexroth, allows LD20DL Lo deliver silky-smooth, ultimate efficiency even under heavy-duty conditions.
Specifications
| Machine Weight | 20,000 kg |
|---|---|
| Rated Power | 154 kW |
| Blade Capacity | 3.7 m³ |
| Blade Lift Height | 1,100 mm |
| Blade Digging Depth | 564 mm |
| Ground Pressure | 25.3 kPa |
| Engine Displacement | 9.3 L |
| Track Shoe Width | 1,100 mm |
| Number of Rollers (Per Side) | 7 |
| Number of Idlers (Per Side) | 2 |
| Number of Track Shoes (Per Side) | 44 |
| Maximum Travel Speed, fwd | 10.6 km/h |
| Maximum Travel Speed, rev | 10.5 km/h |
Applications
The LD20DL is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
