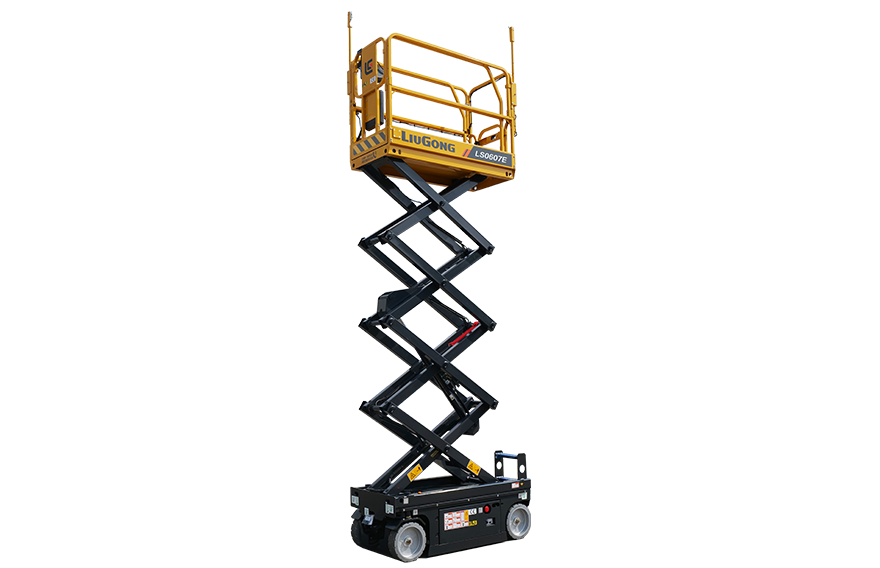

LS0607E Aerial Work Platform
The LiuGong LS0607E aerial work platforms delivers max.working height of 7.8 m; rated load on working platform of 230 kg; overall length/width of 1.86*0.785 m. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LS0607E Aerial Work Platforms
Max.Working Height
7.8 m
Rated Load on Working Platform
230 kg
Overall Length/Width
1.86*0.785 m
Key Features
- Security And IntelligenceIntelligent control system, real-time monitoring of equipment status, Multiple security protection to ensure personnel safety, Intelligent charging system to extend battery life.
- Easy To ControlDrivable at full height to improve working effificiency, The proportion drops and the descent moves smoothly, Forklift pocket, easy to load, unload and transport.
- Maintenance FriendlySelf-lubricating sleeve, Swing-out tray on both sides, easy maintenance, Fault code indication to facilitate troubleshooting.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Max.Work Height | 7.8 m | 25.59 ft. |
| Max.Platform Height | 5.8 m | 19.03 ft. |
| Min.Platform Height | 0.95 m | 3.12 ft. |
| Platform Size(L×W) | 1.64*0.75 m | 5.37*2.46 ft |
| Overall Length | 1.86 m | 6.10 ft. |
| Overall Width | 0.785 m | 2.58 ft. |
| Overall Height (Rails Down) | 1.72 m | 5.64 ft. |
| Max.Gradeability | 25% | 25% |
| Lift Motor | 24V/3.3kW | 24V/3.3kW |
| Rated Load on Working Platform | 230 kg | 507 lb |
| Battery | 24V/225Ah | 24V/225Ah |
| Charger | 24V/30A | 24V/30A |
| Total Weight | 1540 kg | 3395 lb |
Applications
The LS0607E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LS0607E Aerial Work Platform
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
