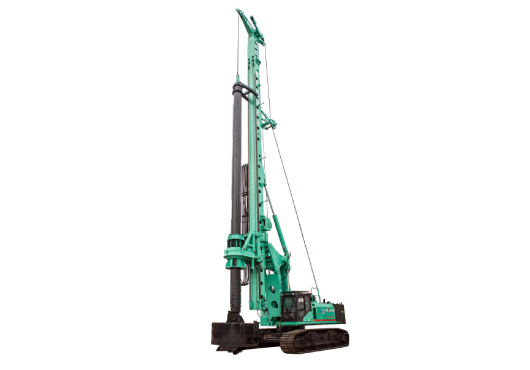

SD32W Drilling Rig
The LiuGong SD32W drilling rigs delivers working weight of 11,200kg; max.drilling diameter of 2,200mm; max.drilling depth of 4-60/5-75. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
SD32W Drilling Rigs
Working weight
11,200kg
Max.drilling diameter
2,200mm
Max.drilling depth
4-60/5-75
Key Features
- High Efficiency & Energy SavingLarge torque &, high rotating speed of power head, equipped with power control &, distribution technology for efficient &, energy-saving construction.
- Easy TransportationIntegrated transportation of main machine with mast, convenient and reliable for assembly, disassembly and relocation.
- Intelligent EfficiencyIntelligent construction system improves construction efficiency and reduces operator fatigue.
Specifications
Upper carrier: JS80
| Engine | X12/ChineseⅢ |
|---|---|
| Rated/Max.power | 336@1,800 kW@rpm |
| Hydraulic system flow | 2×360+147 L/min |
| Hydraulic system pressure | 34.3 Mpa |
| Capacity of fuel tank | 730 L |
| Capacity of hydraulic oil tank | 440 L |
Retractable undercarriage: JT85A
| Width of track shoe | 800 |
|---|---|
| Length of crawler | 5,800 |
| Width of crawler (retract /extend) | 3,400/4,580 |
| Traction force | 700 |
| Travel speed | 1.7 km/h |
Rotary head
| Rotary torque | 320 kN.m |
|---|---|
| Rotary speed | 5～32 r/min |
Main winch
| Max.single line pulling force | 330 kN |
|---|---|
| Wire rope diameter | 36 mm |
| Max.speed | 75 m/min |
Auxiliary winch
| Single line pulling force | 110 kN |
|---|---|
| Wire rope diameter | 20 mm |
| Max.speed | 35 m/min |
Crowd winch system
| Stroke | 18,000 |
|---|---|
| Crowd force | 400 |
| Pulling force | 400 |
Applications
The SD32W is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
